Power Door Systems Component Views

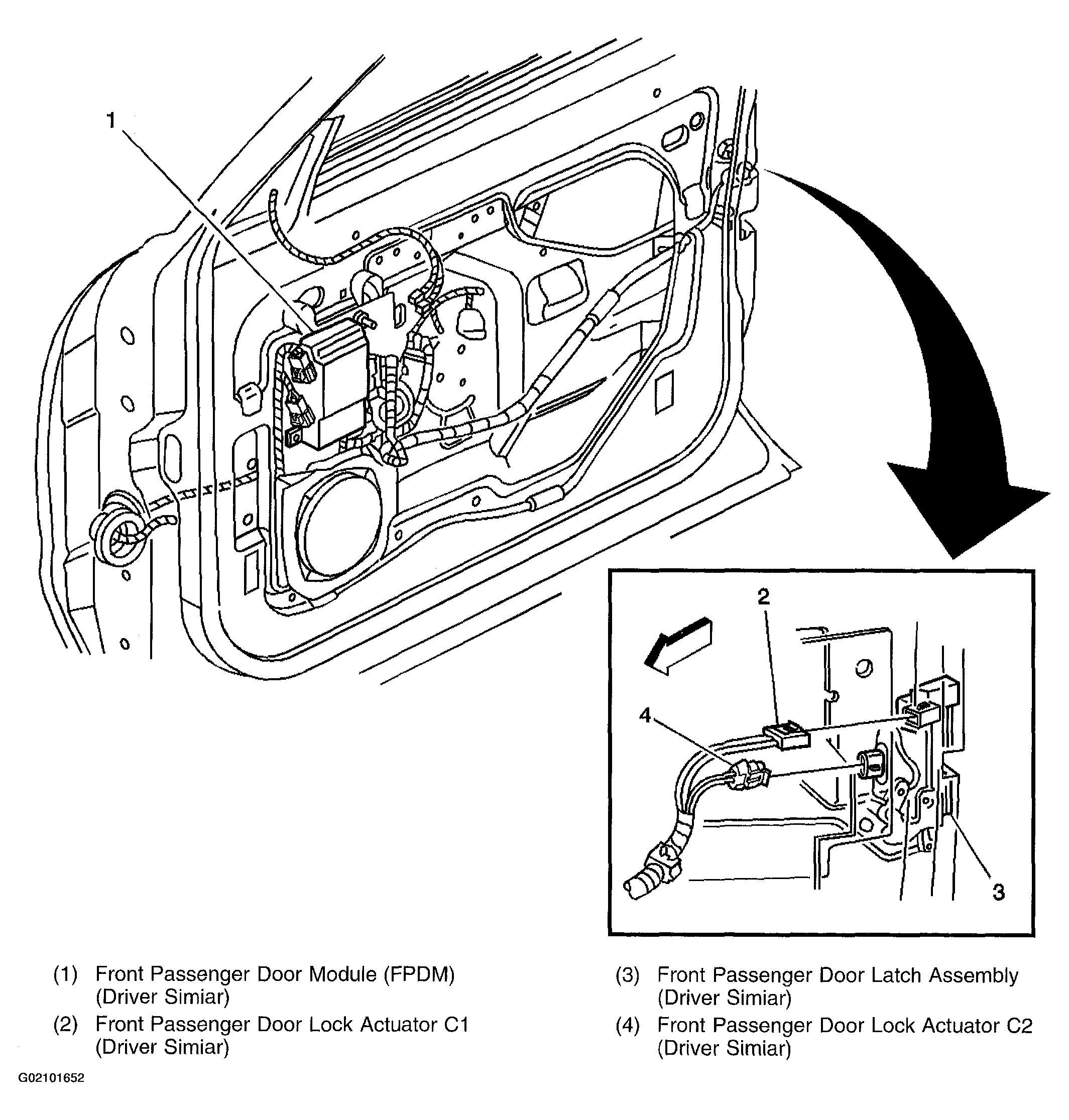

Fig 1: Identifying Front Door Lock Actuator Components

Courtesy of GENERAL MOTORS CORP.

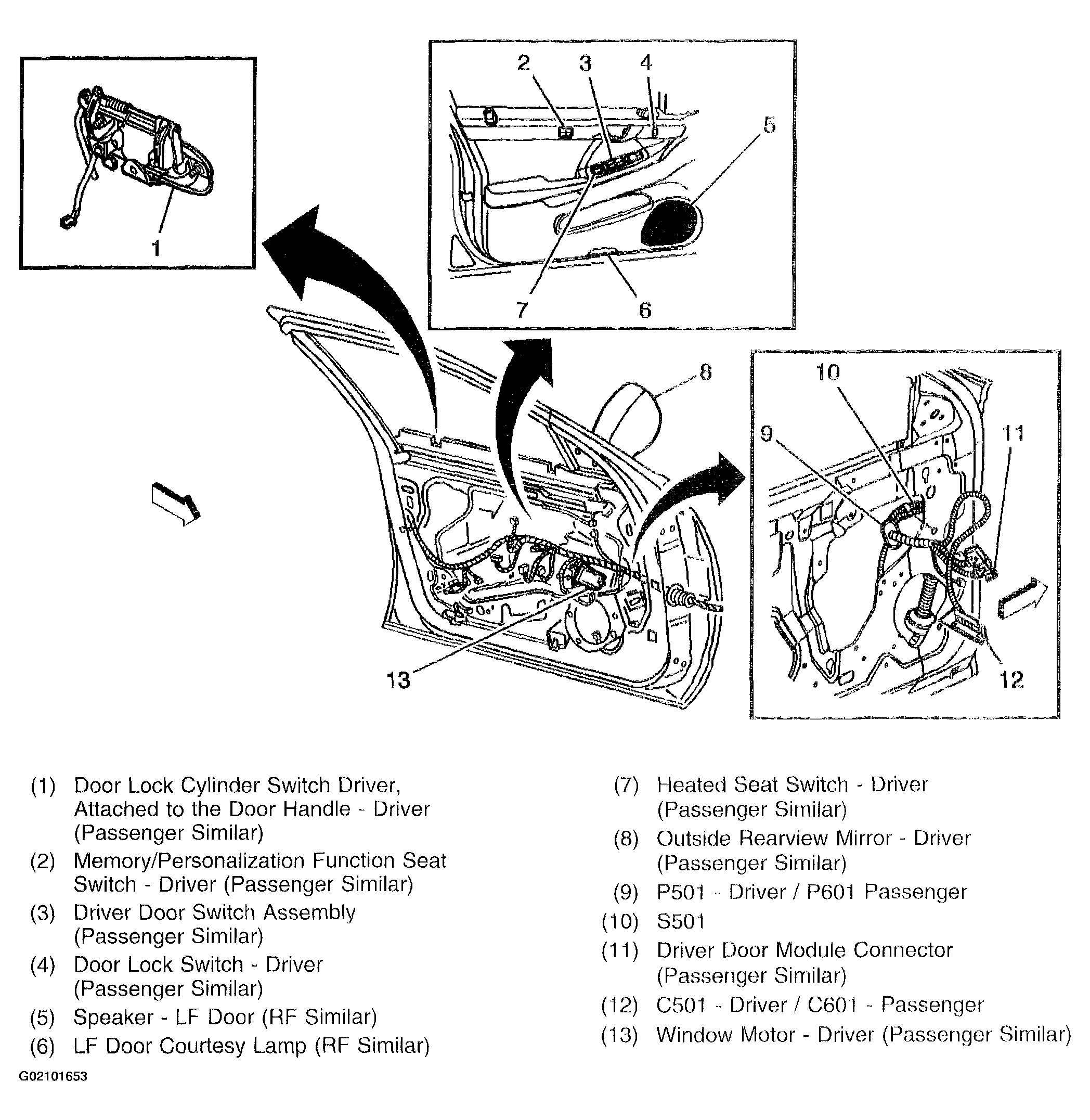

Fig 2: Identifying Front Door Components

Courtesy of GENERAL MOTORS CORP.

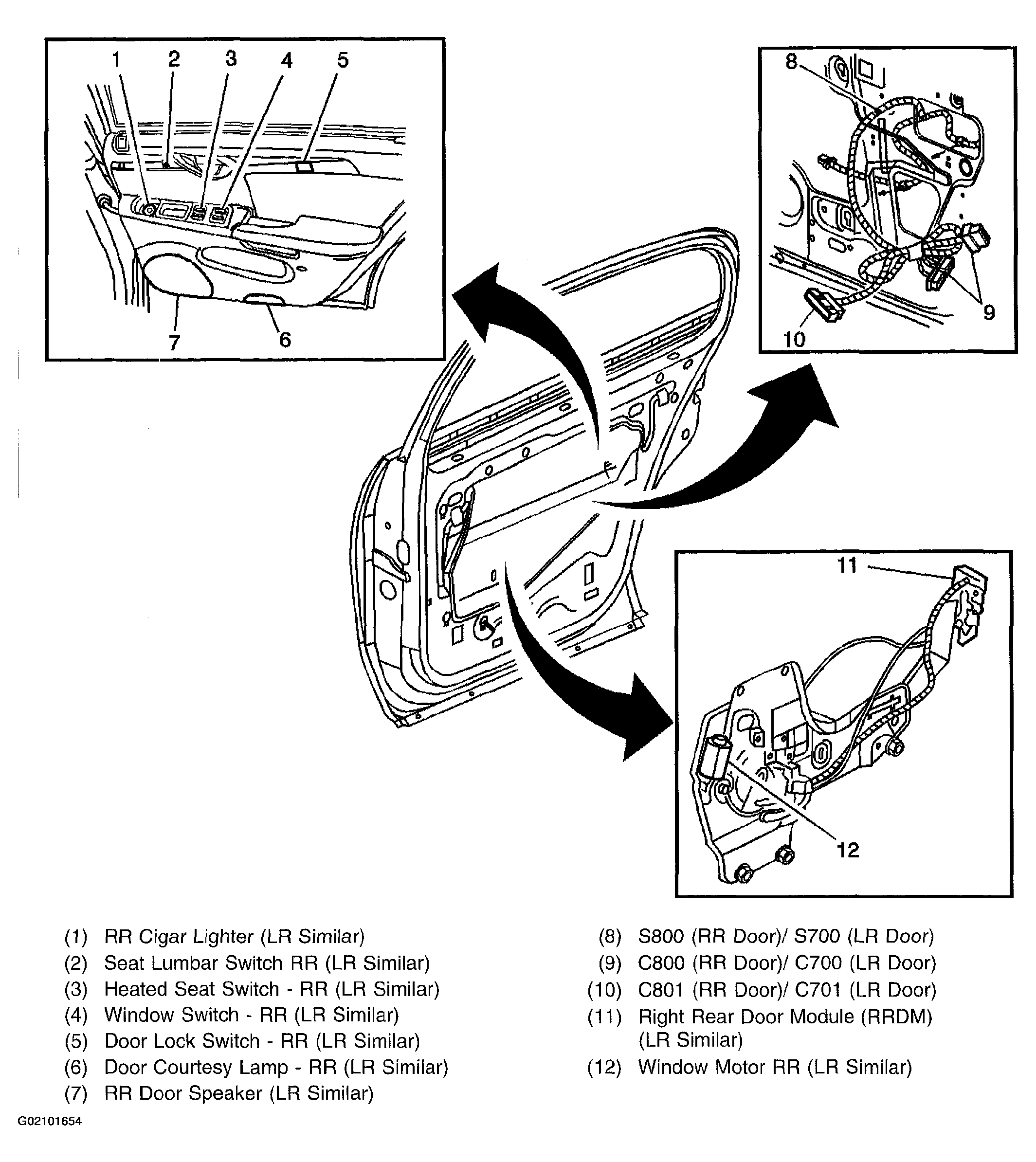

Fig 3: Identifying Rear Door Components

Courtesy of GENERAL MOTORS CORP.
