Power Steering Pump Disassembled View
Power Steering Pump Disassembled View

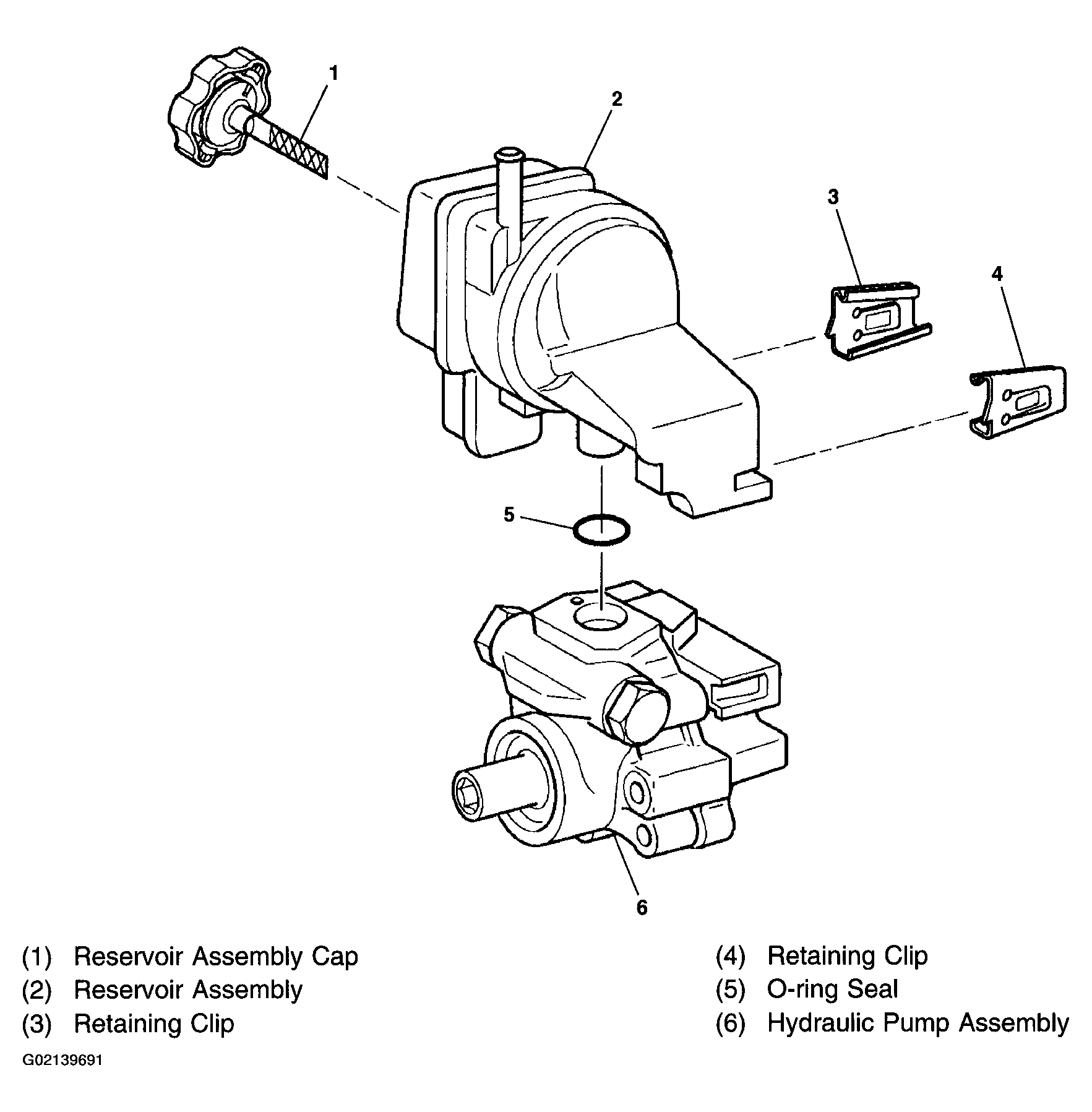

Fig 1: Exploded View Of Power Steering Pump Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
