Recirculation Actuator Connector End View

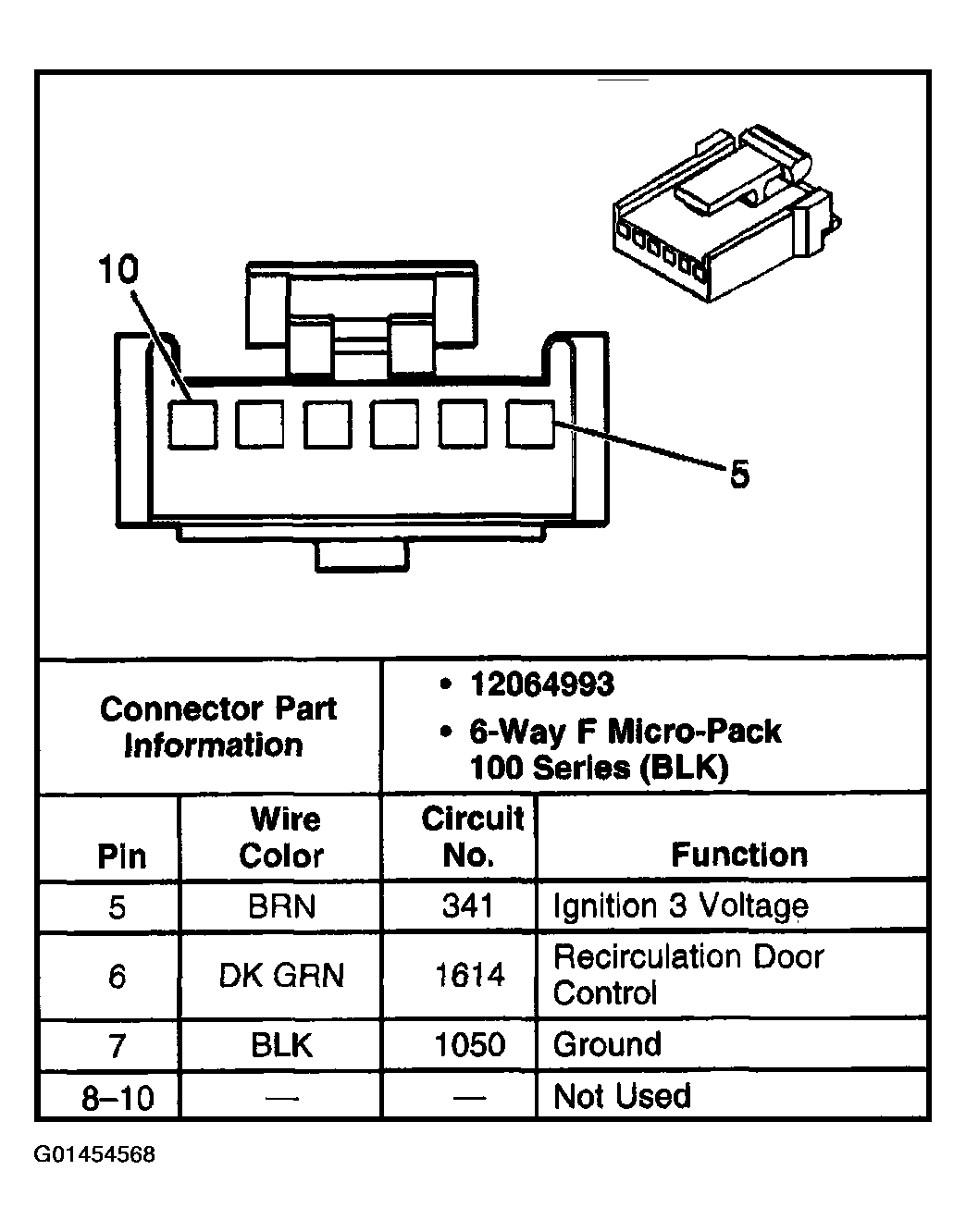

Fig 1: Recirculation Actuator Connector End View
G01454568Courtesy of GENERAL MOTORS CORP.

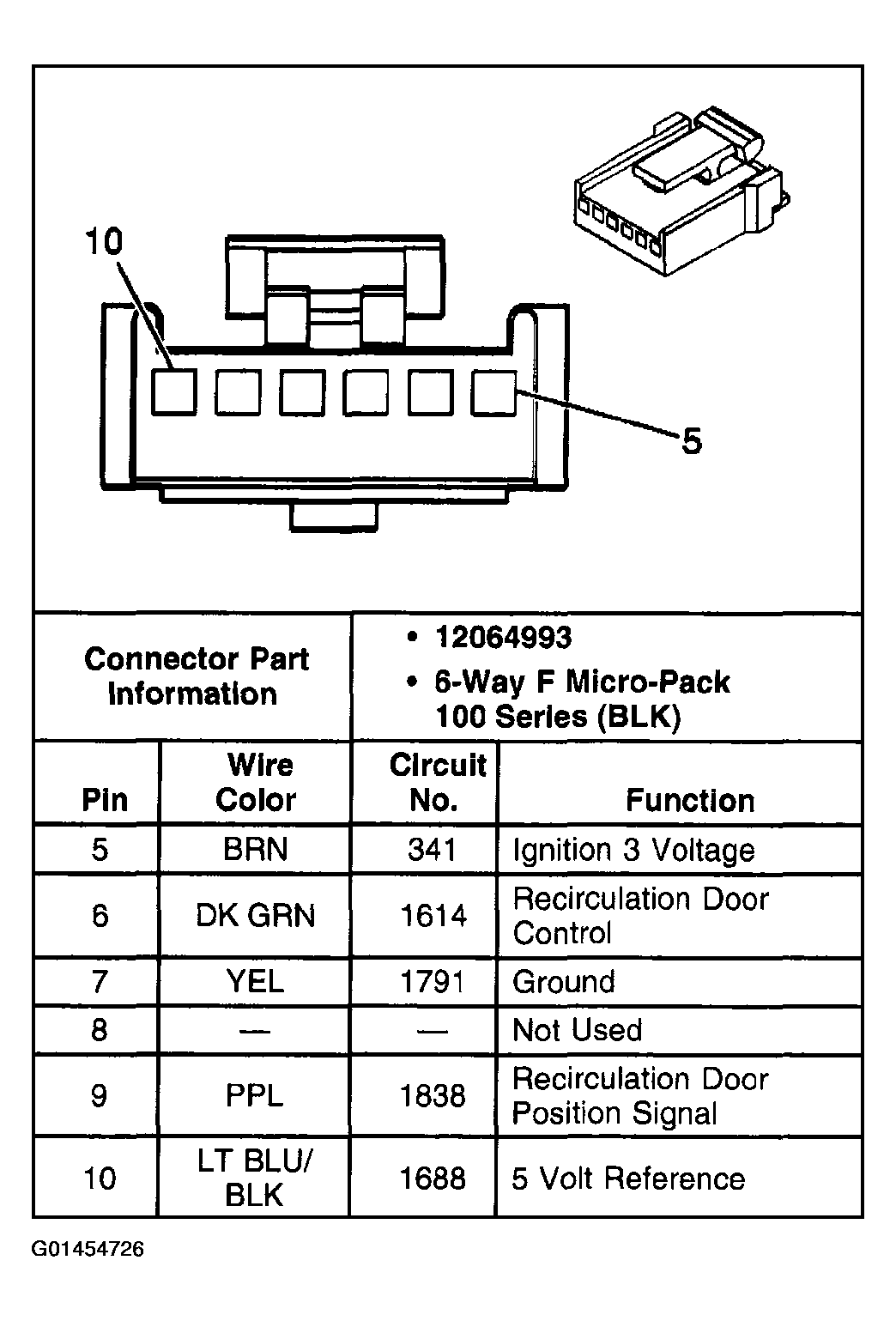

Fig 1: Recirculation Actuator Connector End View
G01454726Courtesy of GENERAL MOTORS CORP.
