Seat Belt Connector End Views
Seat Belt Connector End Views

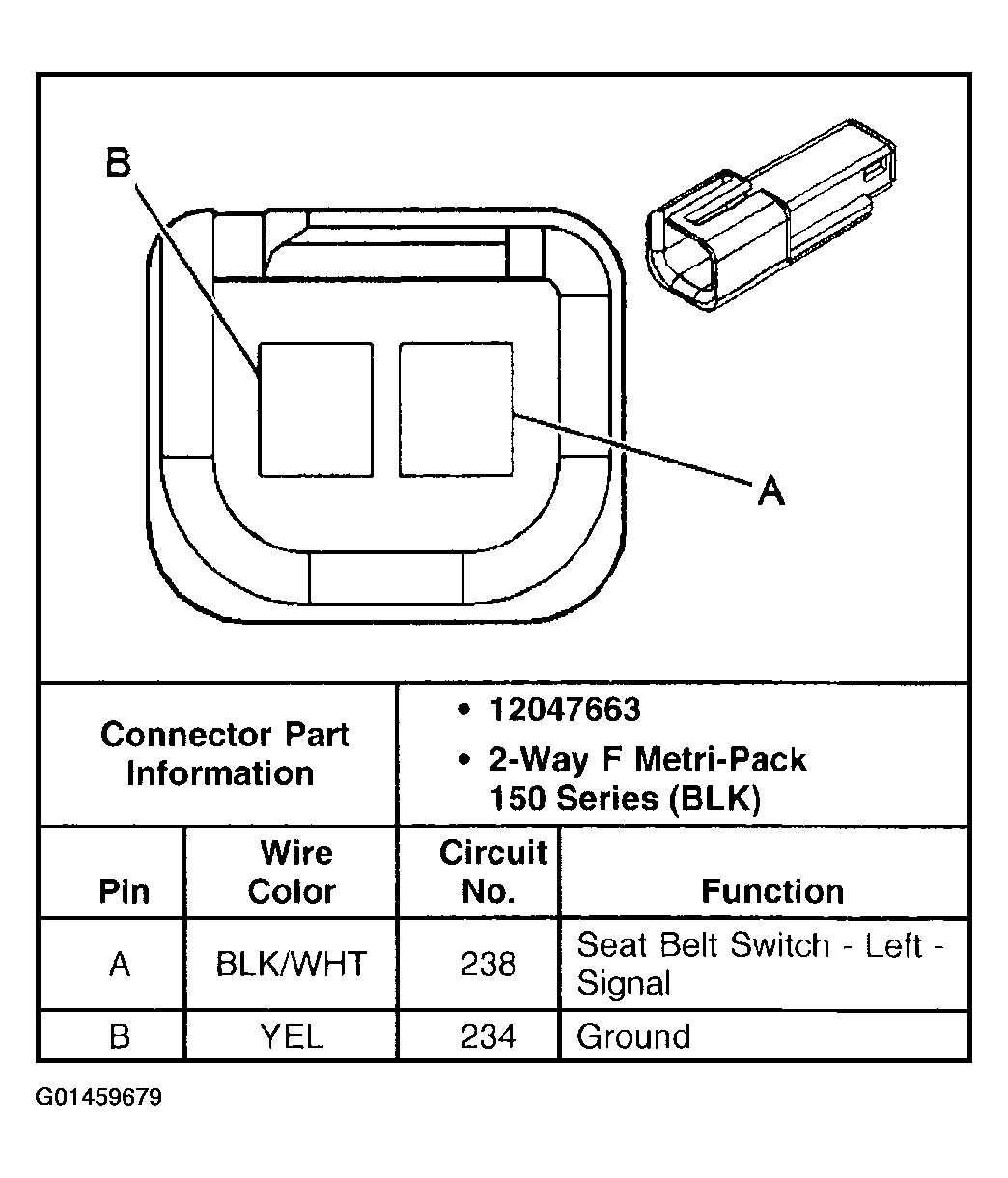

Fig 1: Identifying Seat Belt Switch - Driver
Courtesy of GENERAL MOTORS CORP.

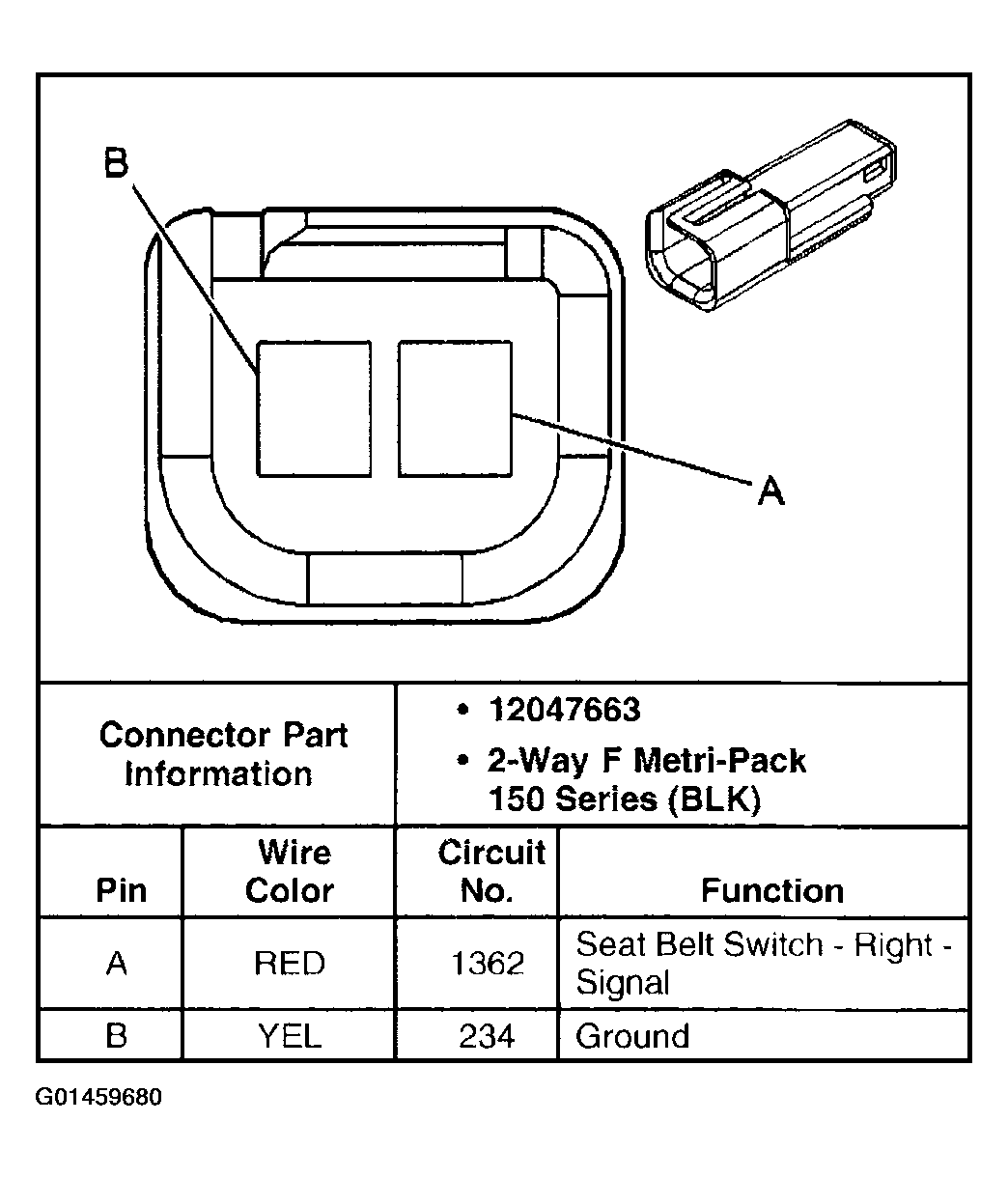

Fig 2: Identifying Seat Belt Switch - Front Passenger
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
