Installation Procedure

  1. Install the rear object alarm switch into the housing (2).

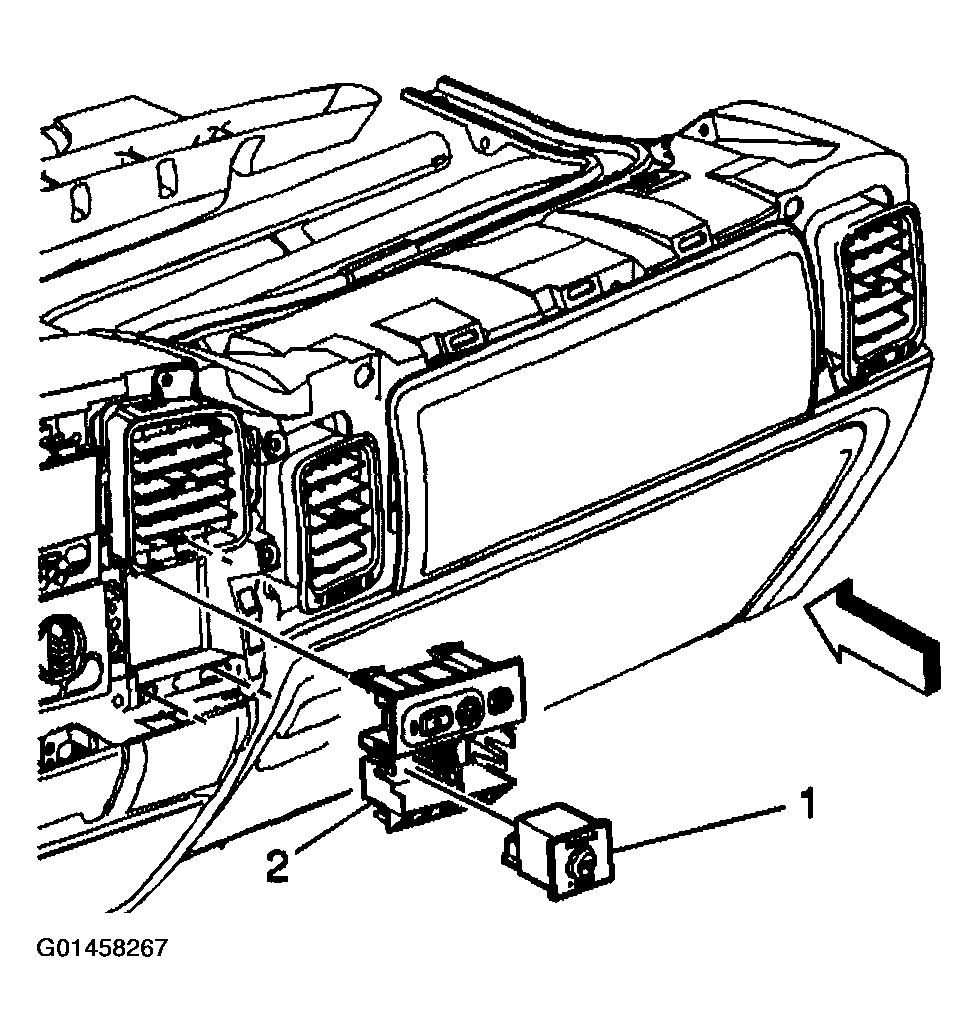

    2. Fig 1: Installing Rear Object Alarm Switch Into Housing
    G01458267Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the switch (1).
  3. Install the switch housing into the dash.
  4. Install the dash trim bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (UP) CLUSTER in INSTRUMENT PANEL, GAGES, AND CONSOLE .
