Engine Mechanical
›
Engine Mechanical - 4.8L, 5.3L & 6.0L
›
Thread Repair Specifications
›
Engine Block-Bottom View
Engine Block-Bottom View

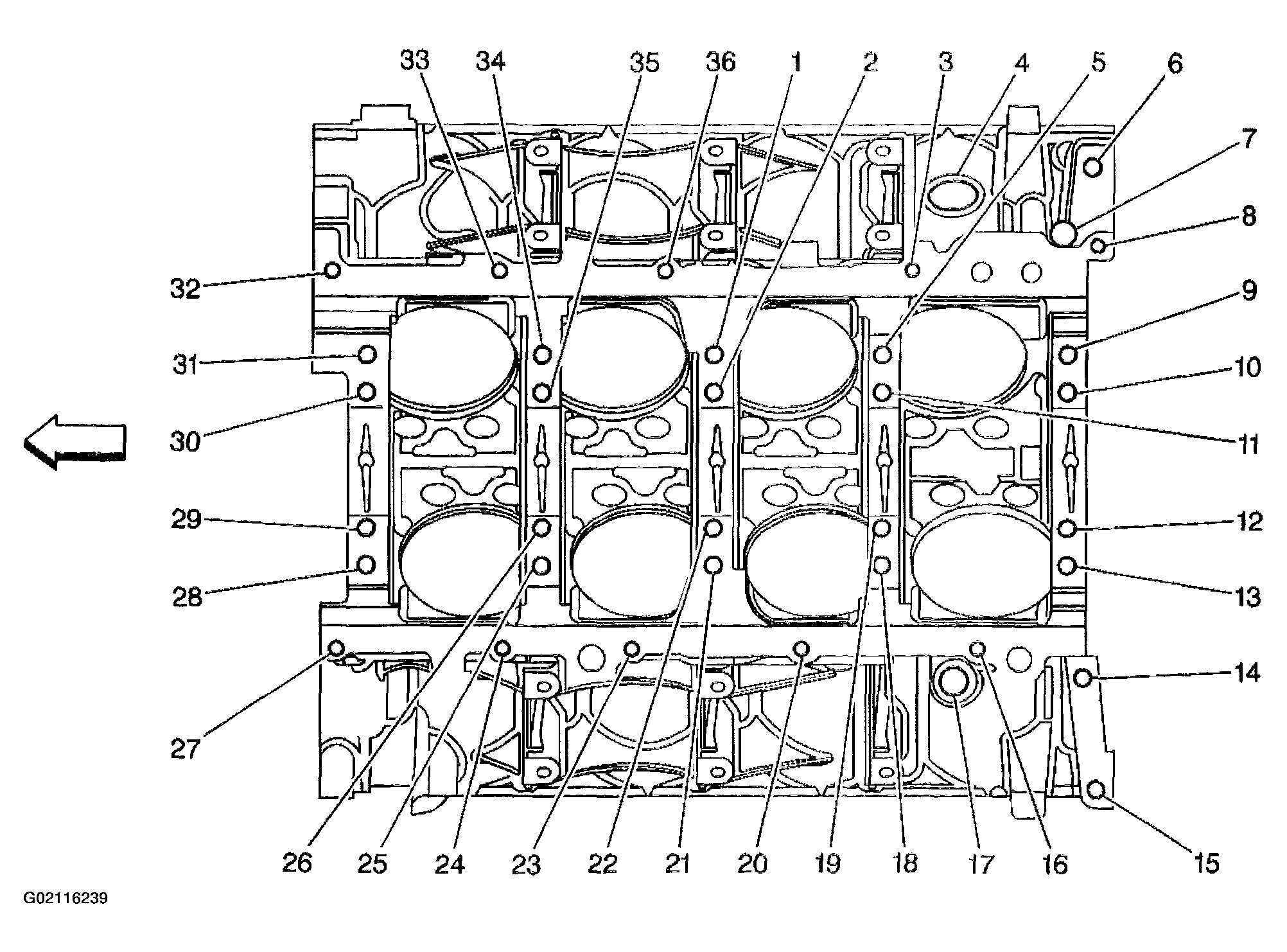

Fig 1: Identifying Engine Block-Bottom View - Thread Repair
Courtesy of GENERAL MOTORS CORP.

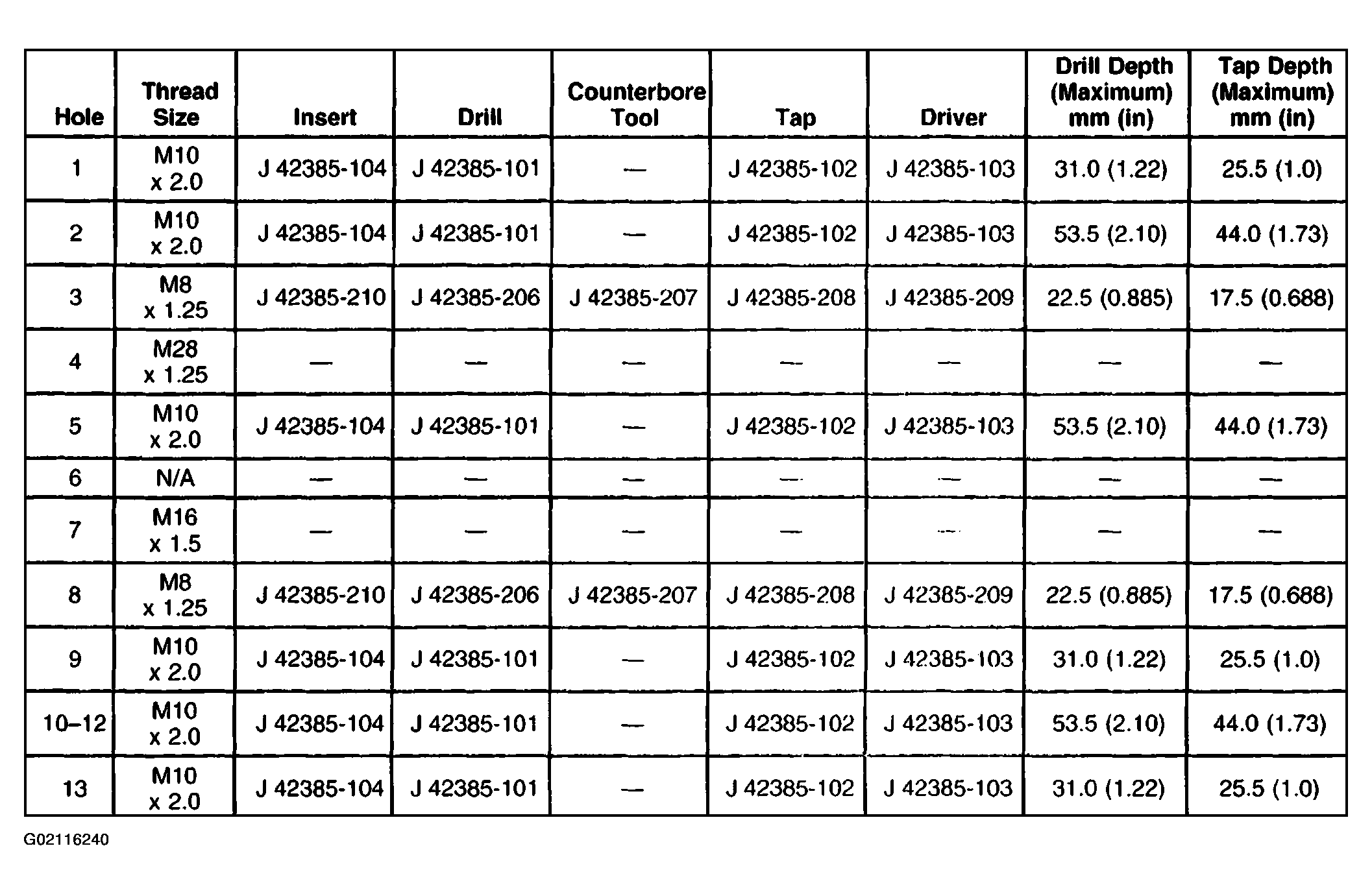

Fig 2: Thread Repair Specifications Index - Engine Block-Bottom (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

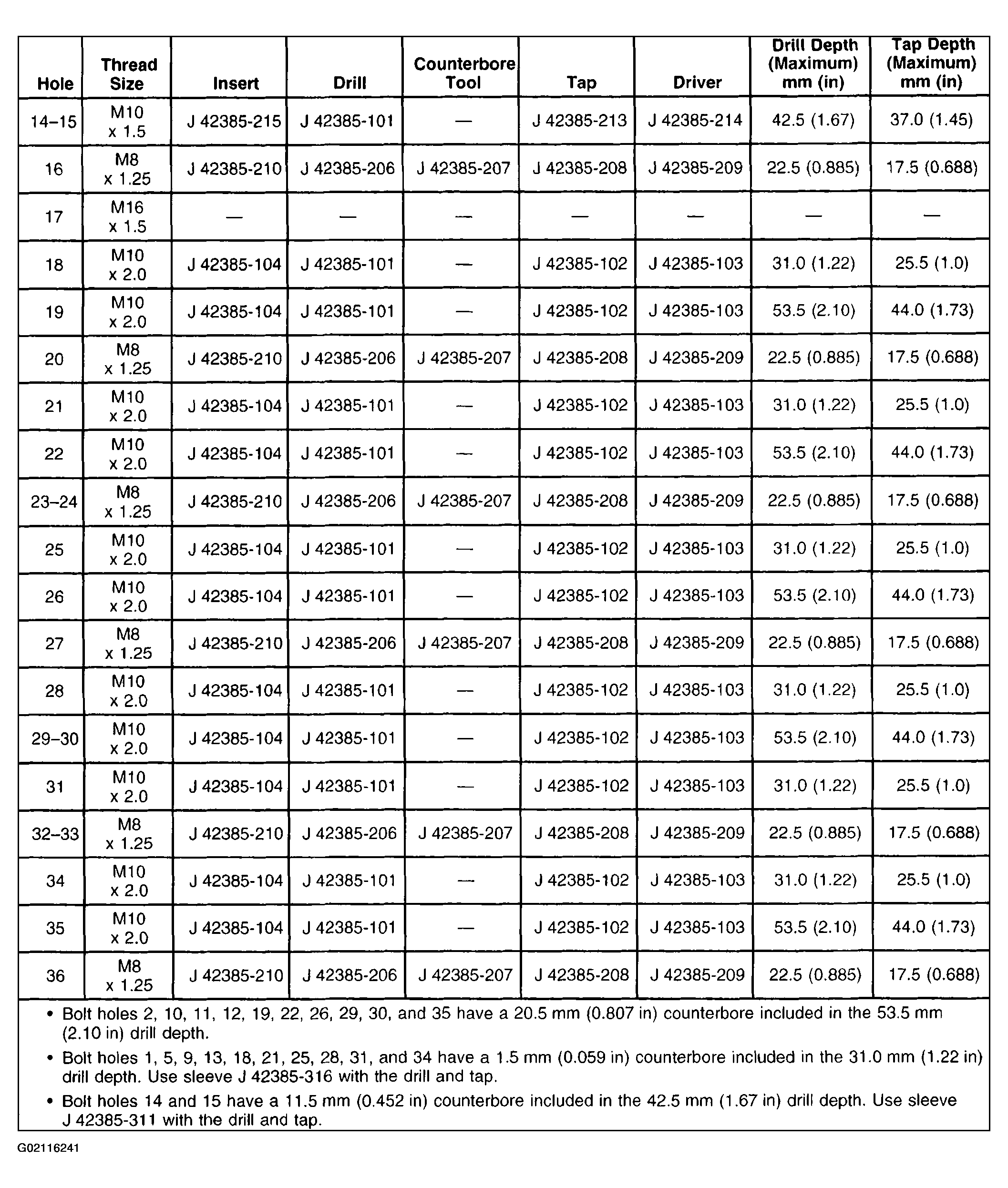

Fig 3: Thread Repair Specifications Index - Engine Block-Bottom (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
