Engine Block-Front View

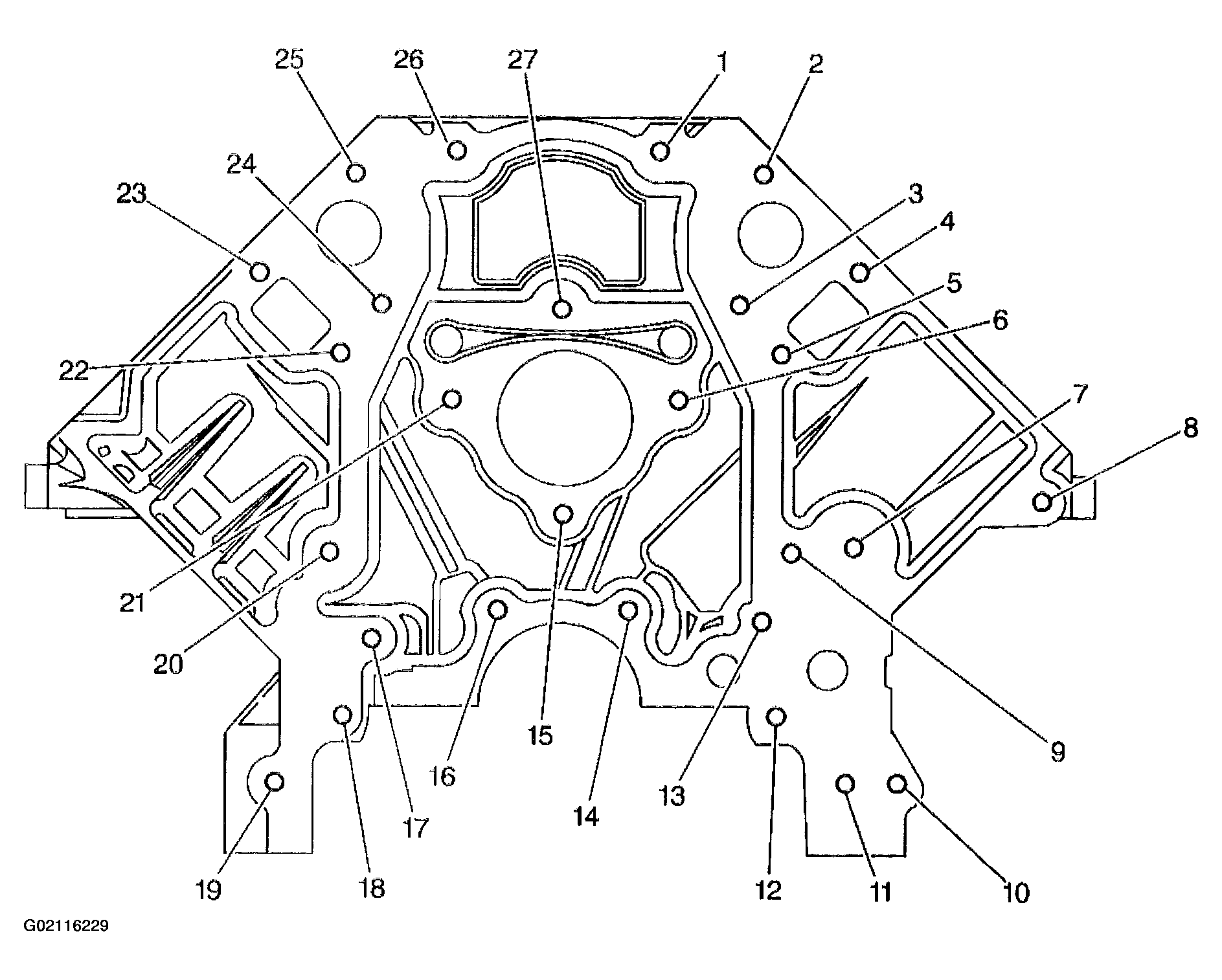

Fig 1: Identifying Engine Block-Front View - Thread Repair
G02116229Courtesy of GENERAL MOTORS CORP.

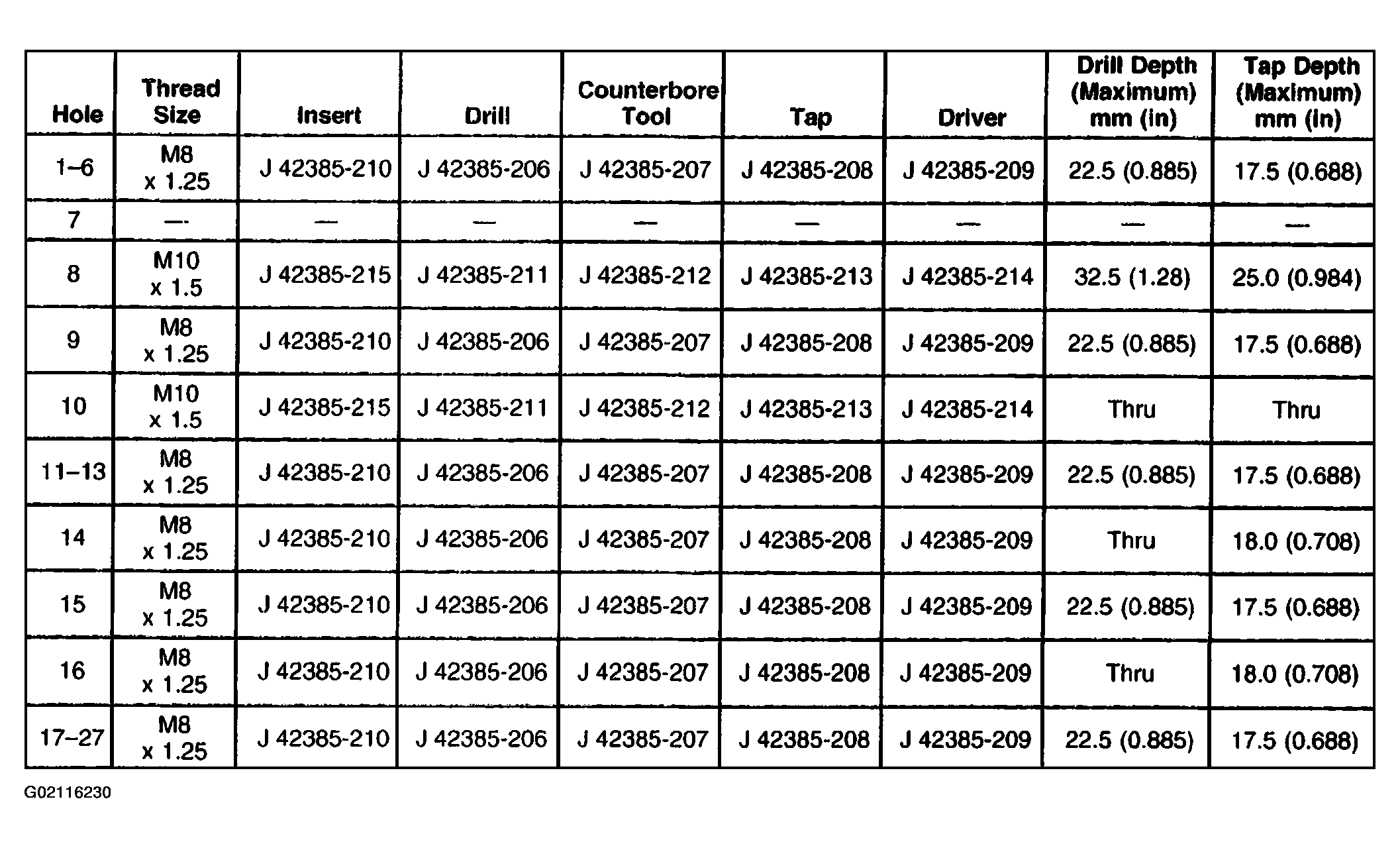

Fig 2: Thread Repair Specifications Index - Engine Block-Front
G02116230Courtesy of GENERAL MOTORS CORP.
