Engine Block-Left Side View

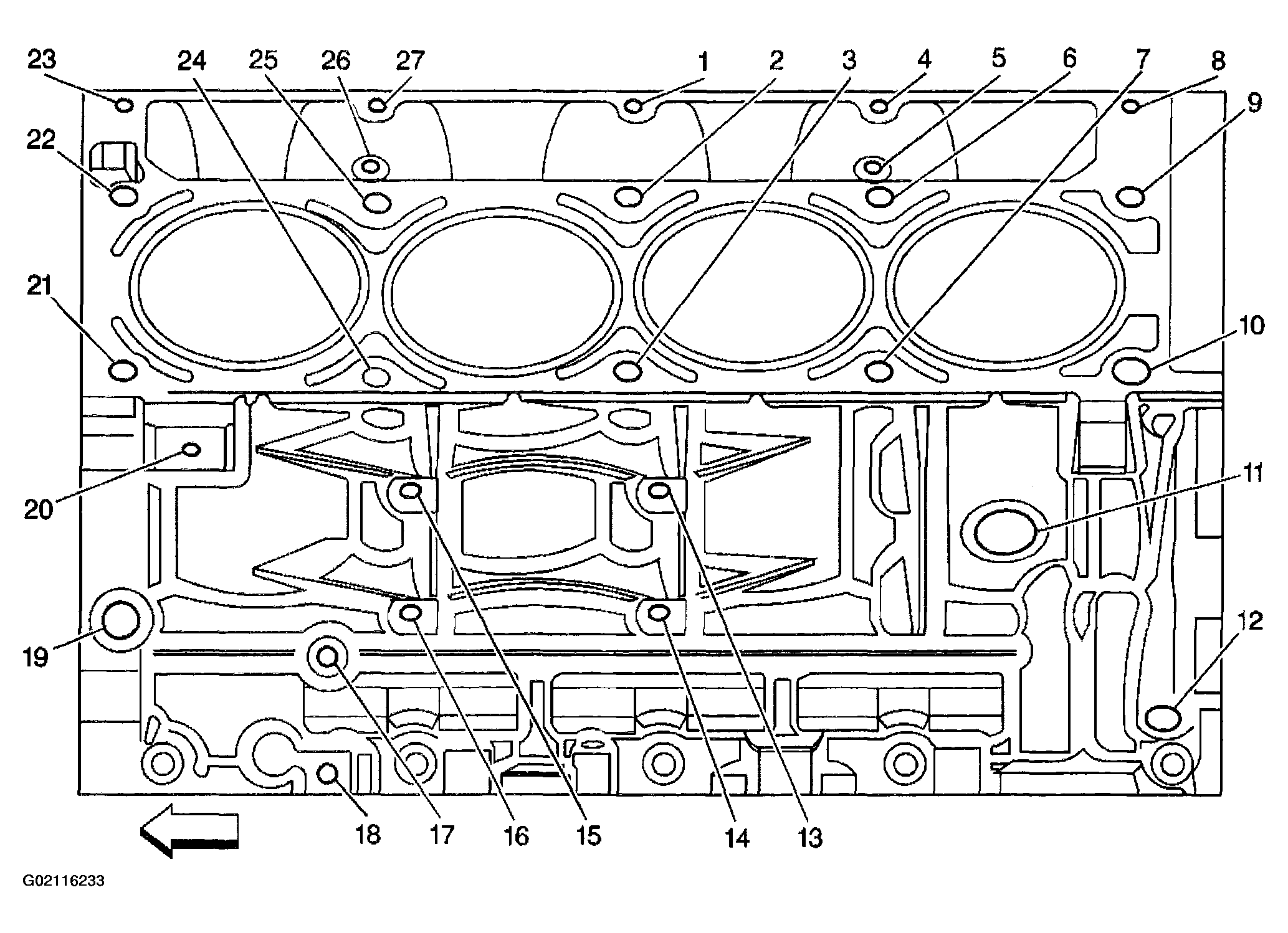

Fig 1: Unidentified Engine Block-Left Side View - Thread Repair
G02116233Courtesy of GENERAL MOTORS CORP.

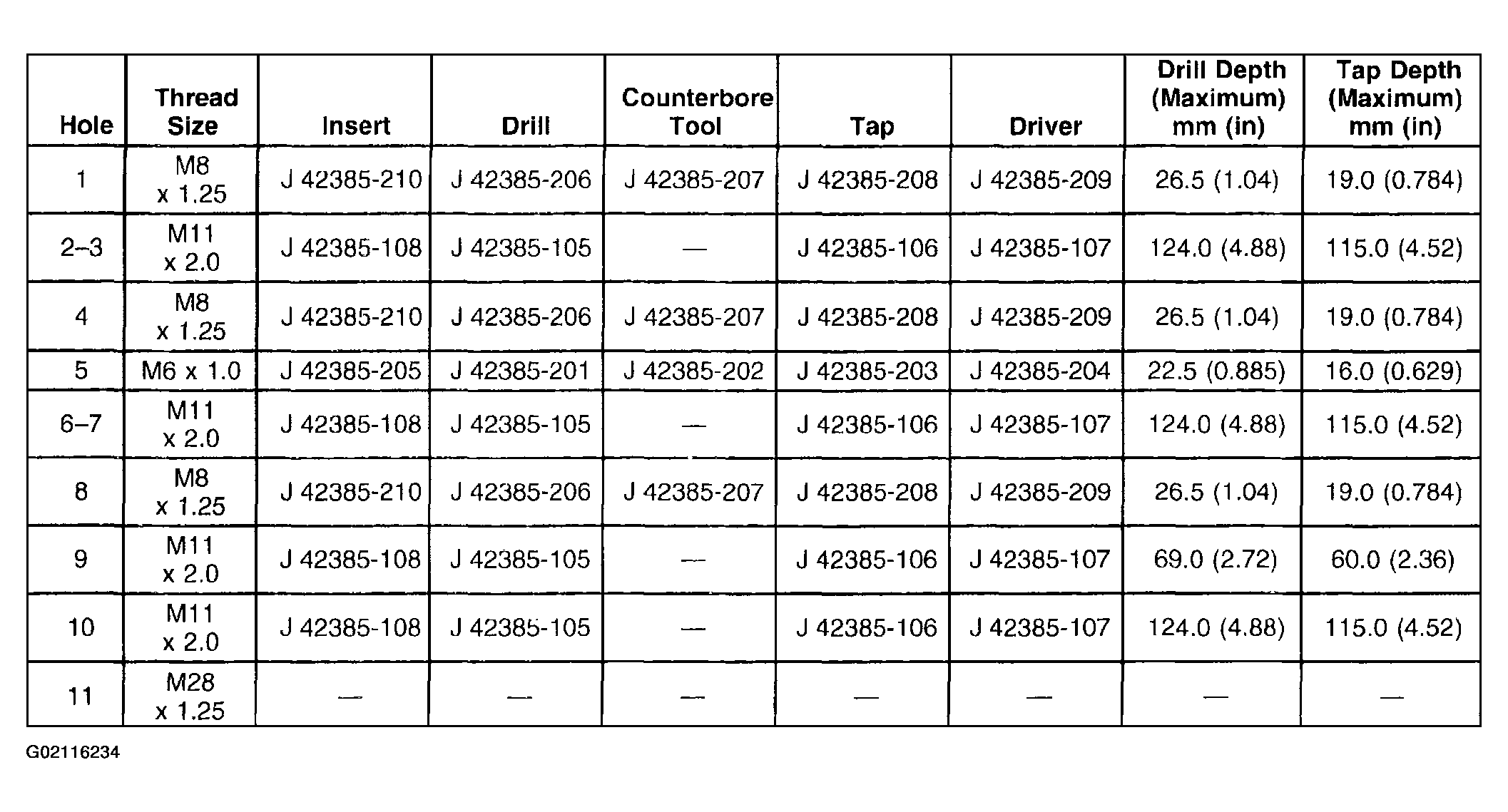

Fig 2: Thread Repair Specifications Index - Engine Block-Left Side (1 Of 2)
G02116234Courtesy of GENERAL MOTORS CORP.

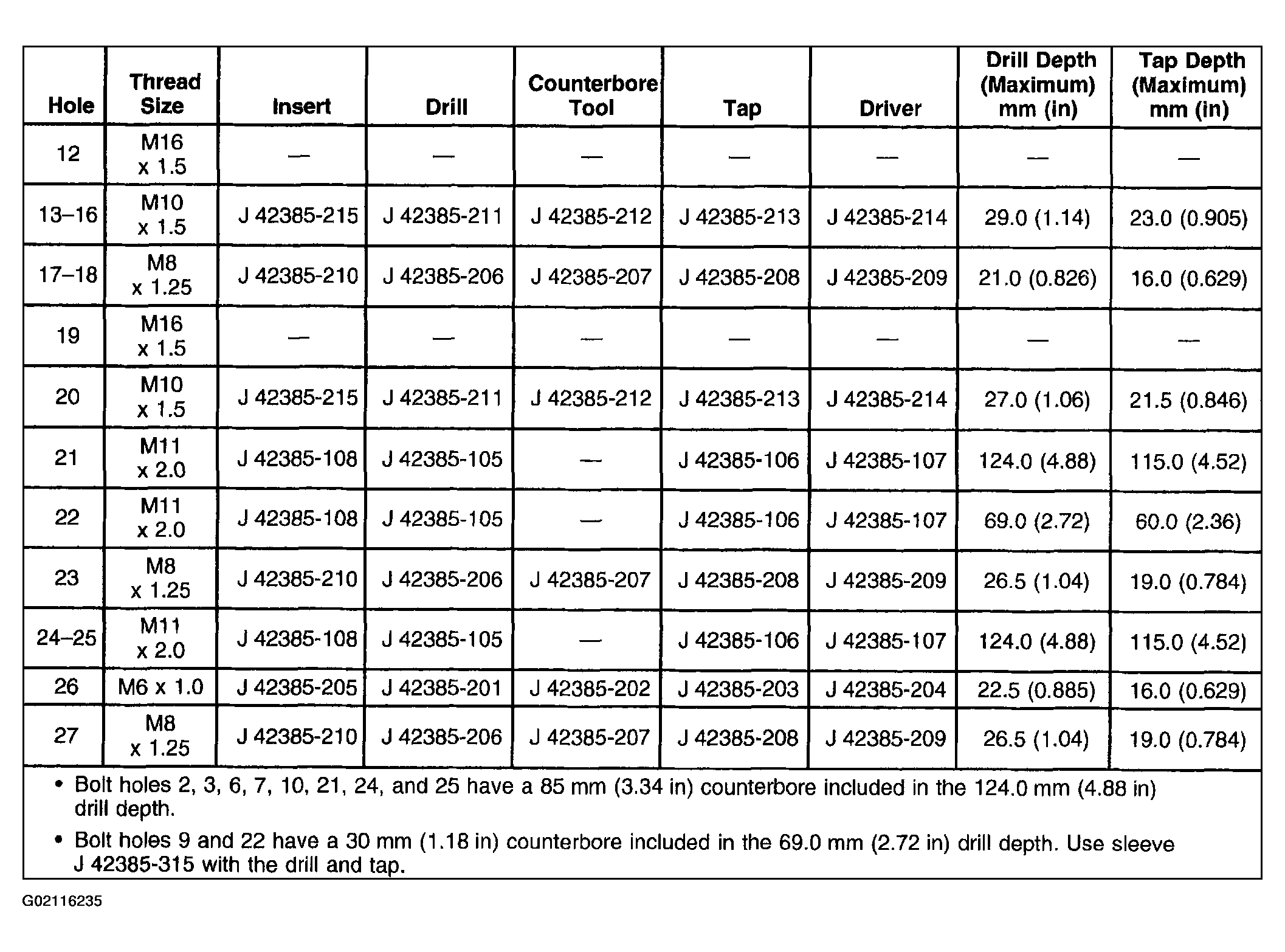

Fig 3: Thread Repair Specifications Index - Engine Block-Left Side (2 Of 2)
G02116235Courtesy of GENERAL MOTORS CORP.
