Adjustable Pedals Connector End Views

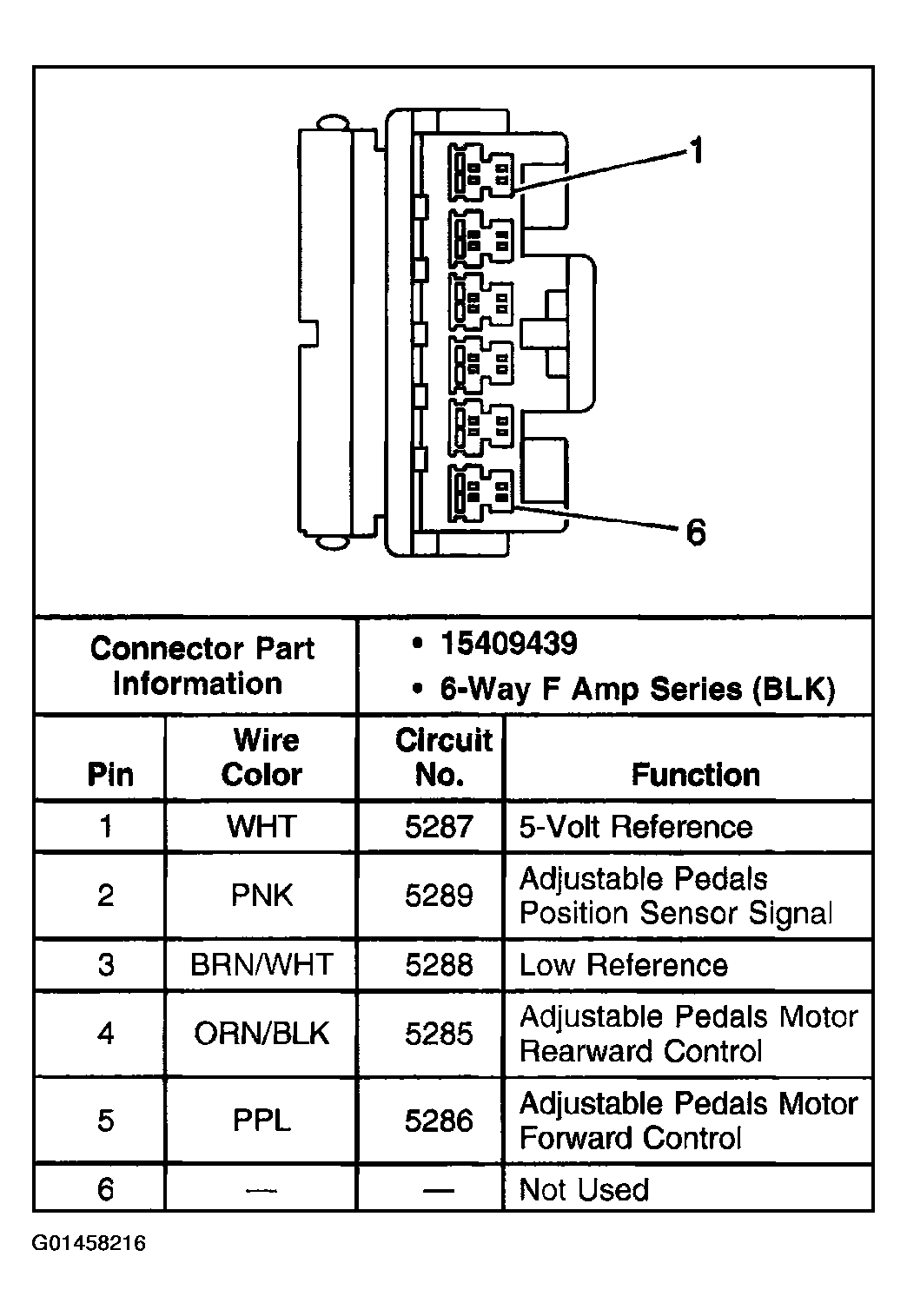

Fig 1: Identifying Electronic Adjustable Pedals (EAP) Assembly Terminals

Courtesy of GENERAL MOTORS CORP.

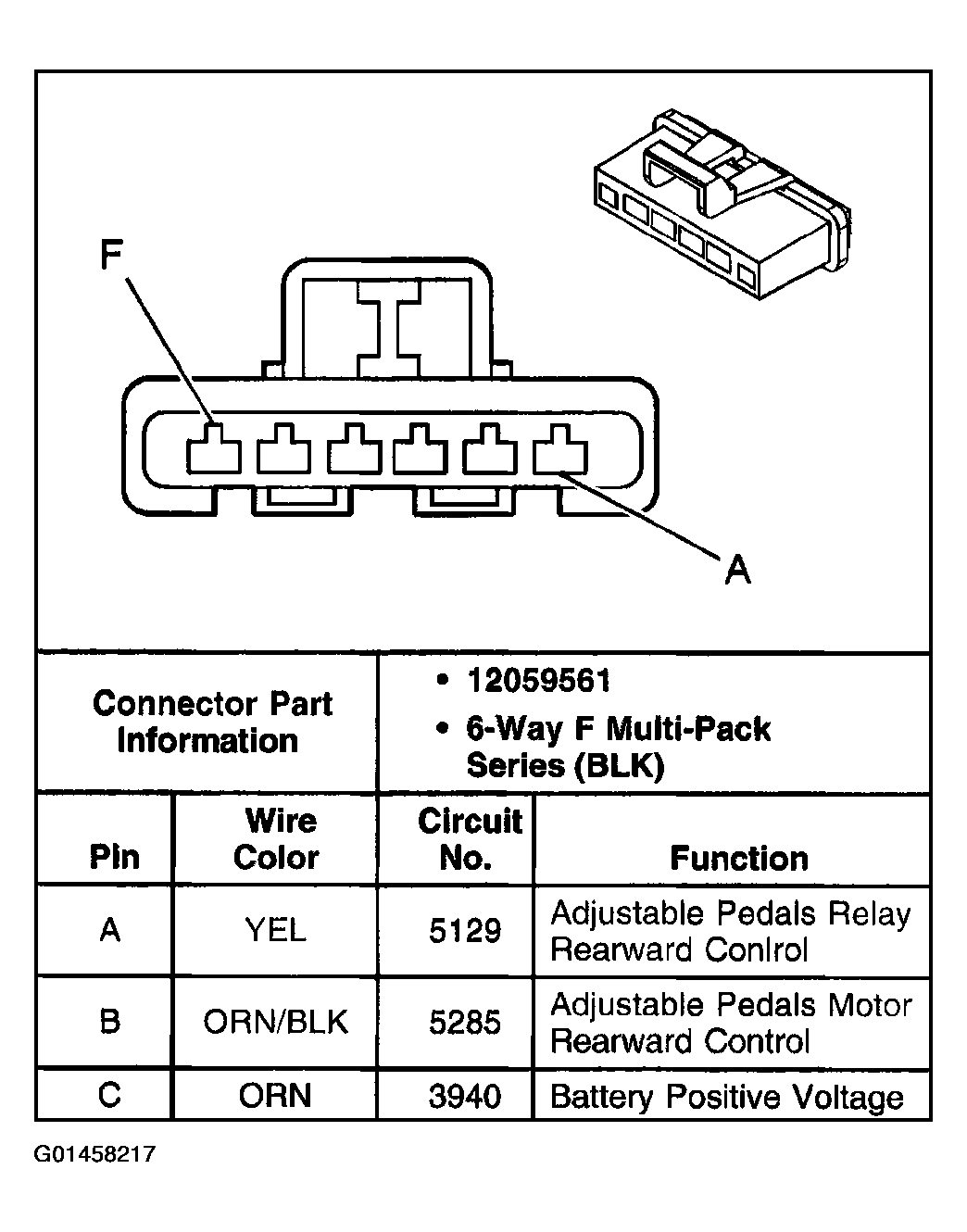

Fig 2: Identifying Electronic Adjustable Pedals (EAP) Relay Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

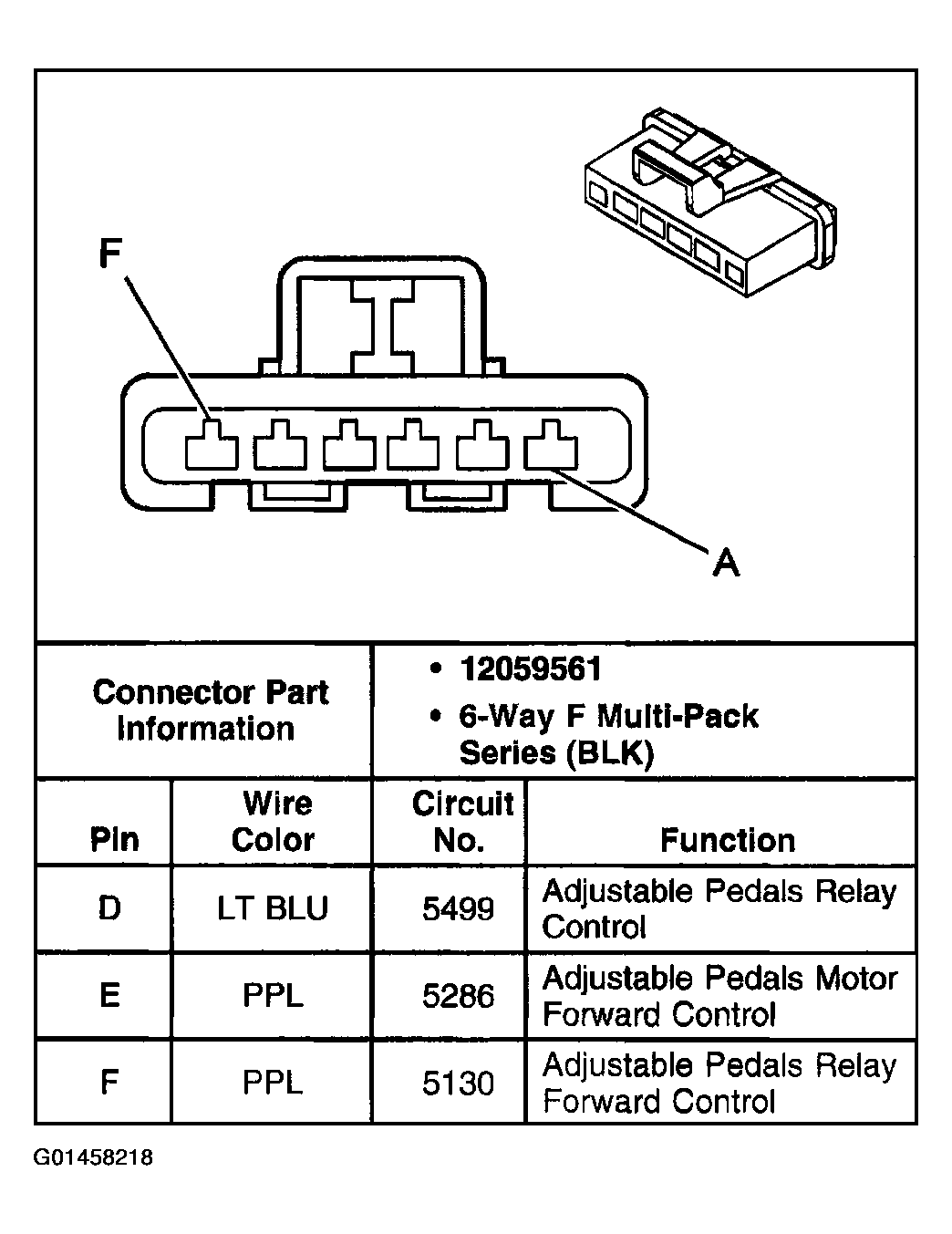

Fig 3: Identifying Electronic Adjustable Pedals (EAP) Relay Terminals (2 Of 2)
