Scan Tool Data List

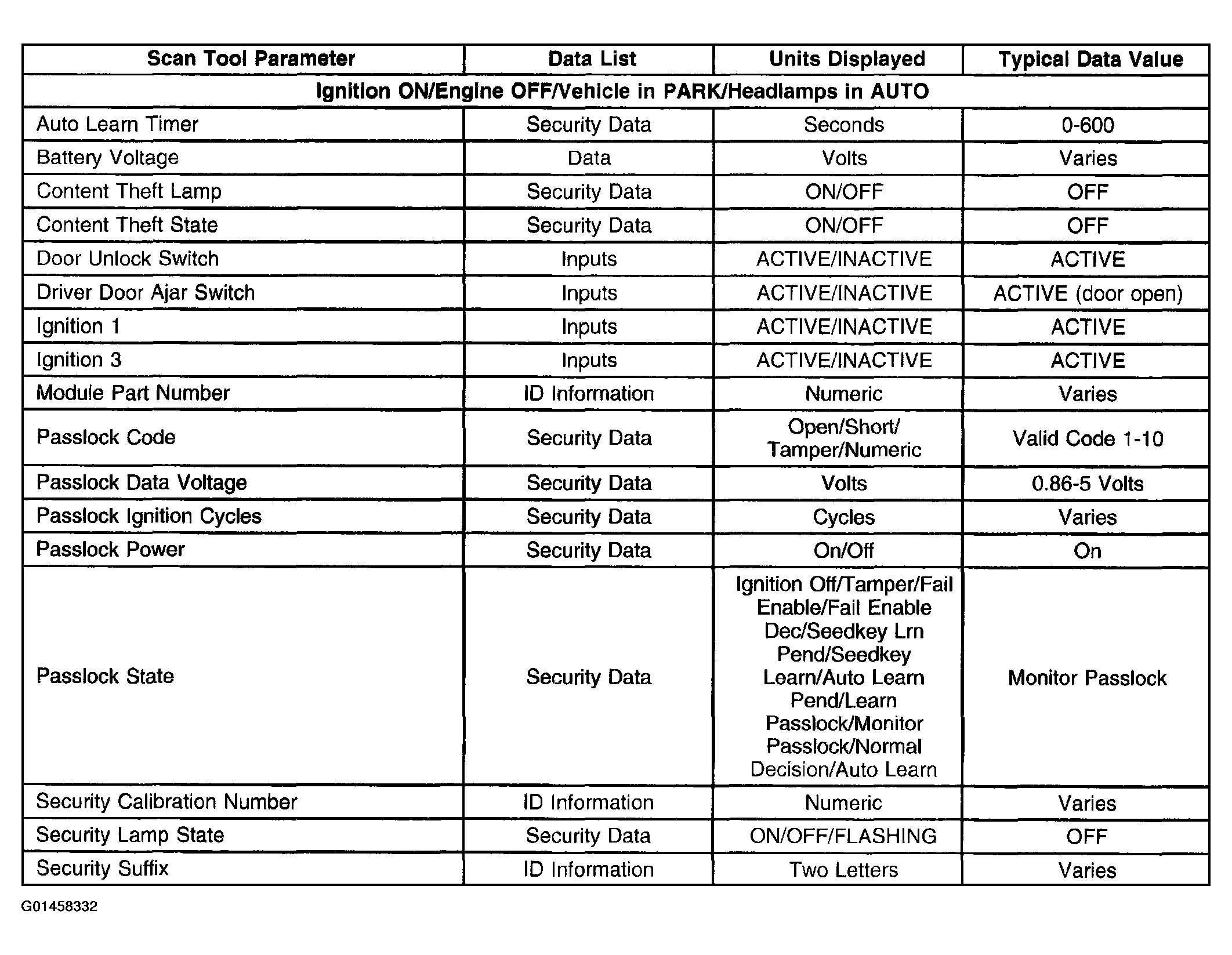

Fig 1: Scan Tool Data List - Body Control Module (BCM - 1 Of 2)
Courtesy of GENERAL MOTORS CORP.

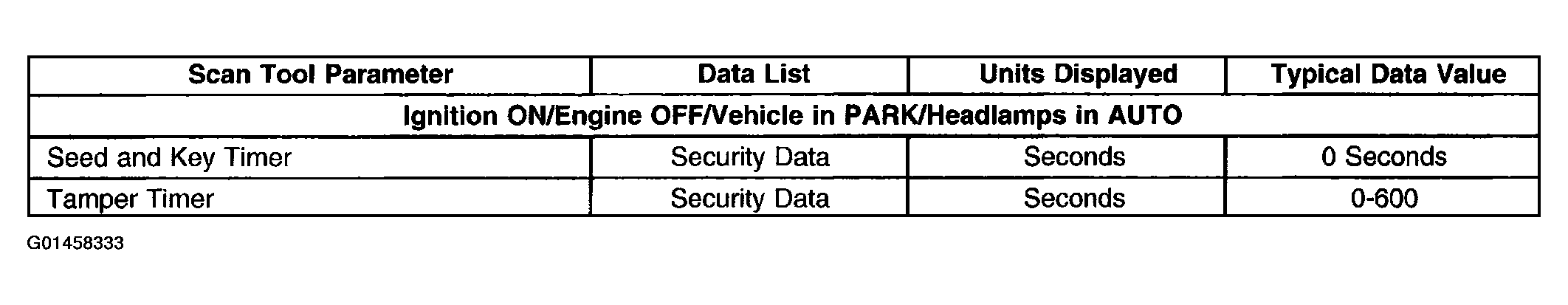

Fig 2: Scan Tool Data List - Body Control Module (BCM - 2 Of 2)
Courtesy of GENERAL MOTORS CORP.

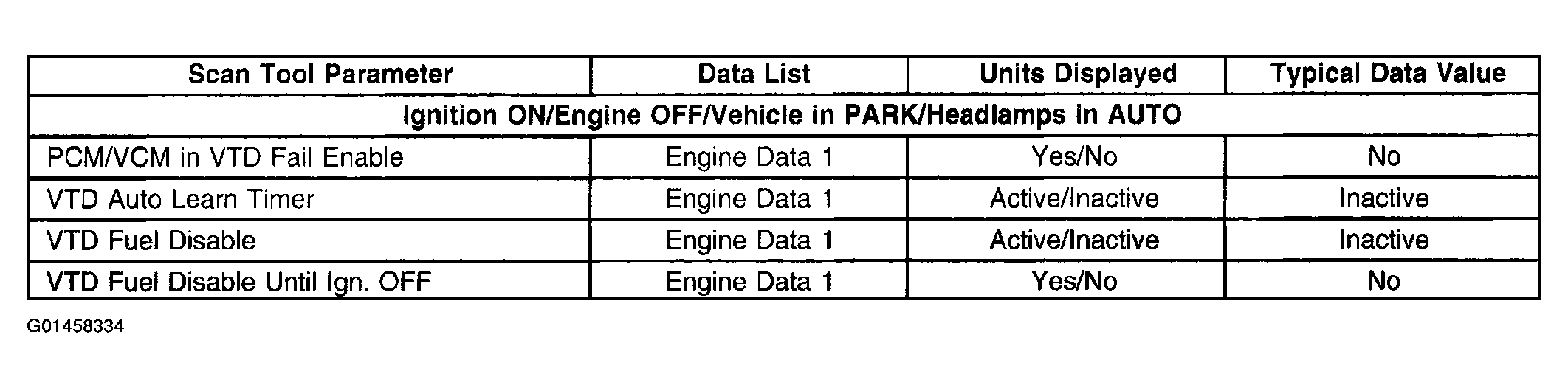

Fig 3: Scan Tool Data List - Powertrain Control Module (PCM)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
