Frame Reference Point Description - Symmetrical

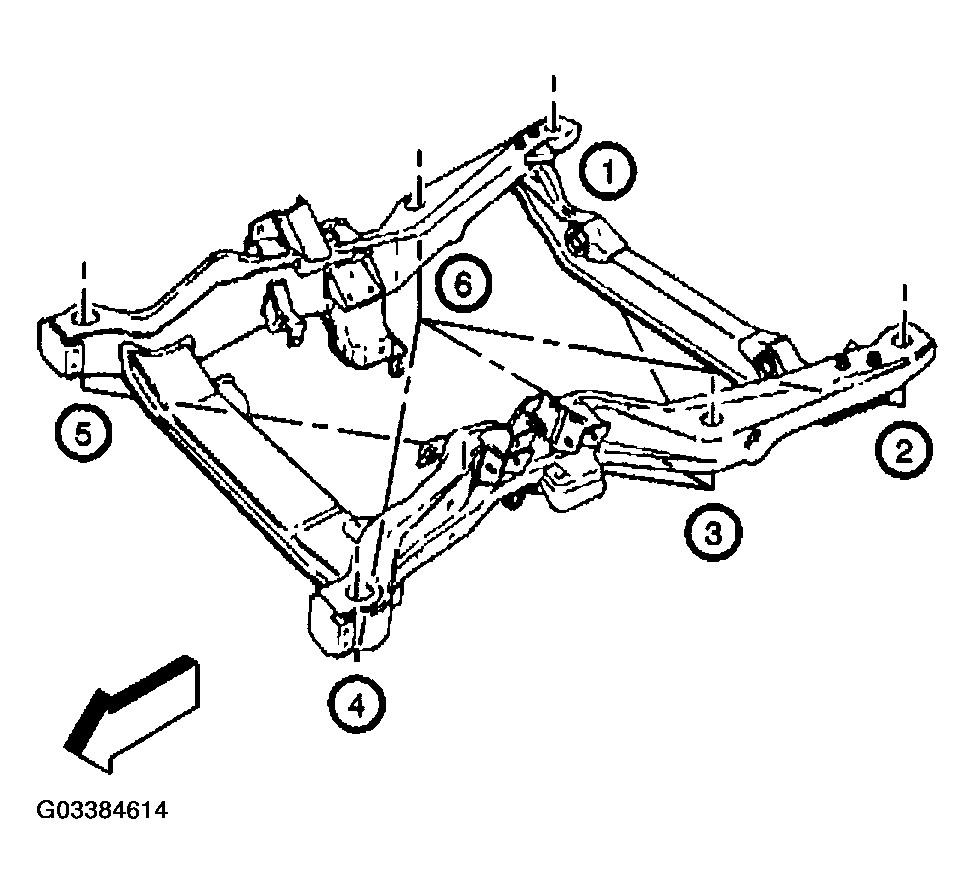

Fig 1: Frame Reference Point Description - Symmetrical

Courtesy of GENERAL MOTORS CORP.

Symmetrical reference points are 2 corresponding points on opposite sides of the centerline that have equal specifications in length, width, and height. Use symmetrical reference points in order to make quick inspections for underbody structural damage.
