Power Seat Systems Component Views

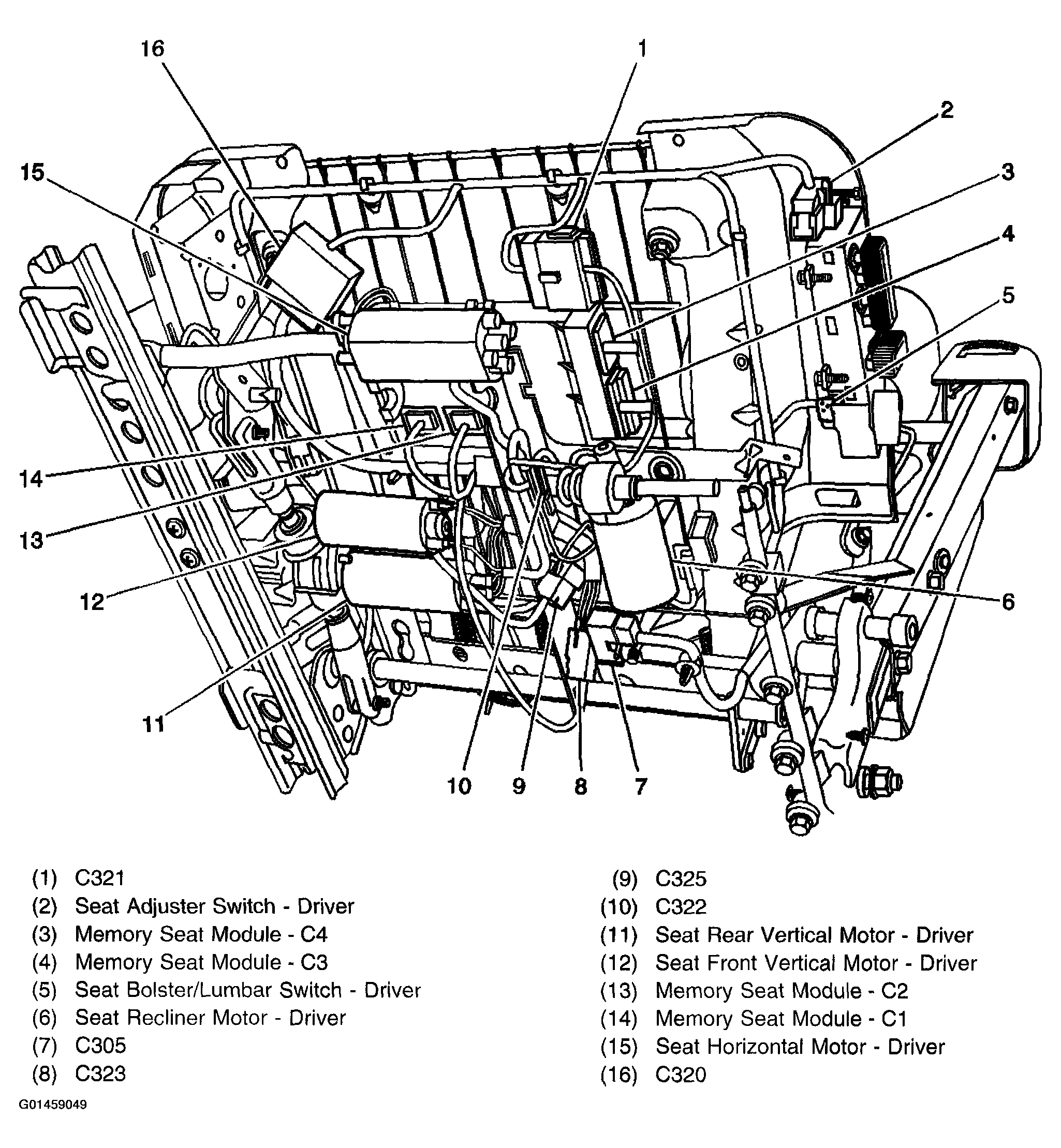

Fig 1: Driver Seat (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

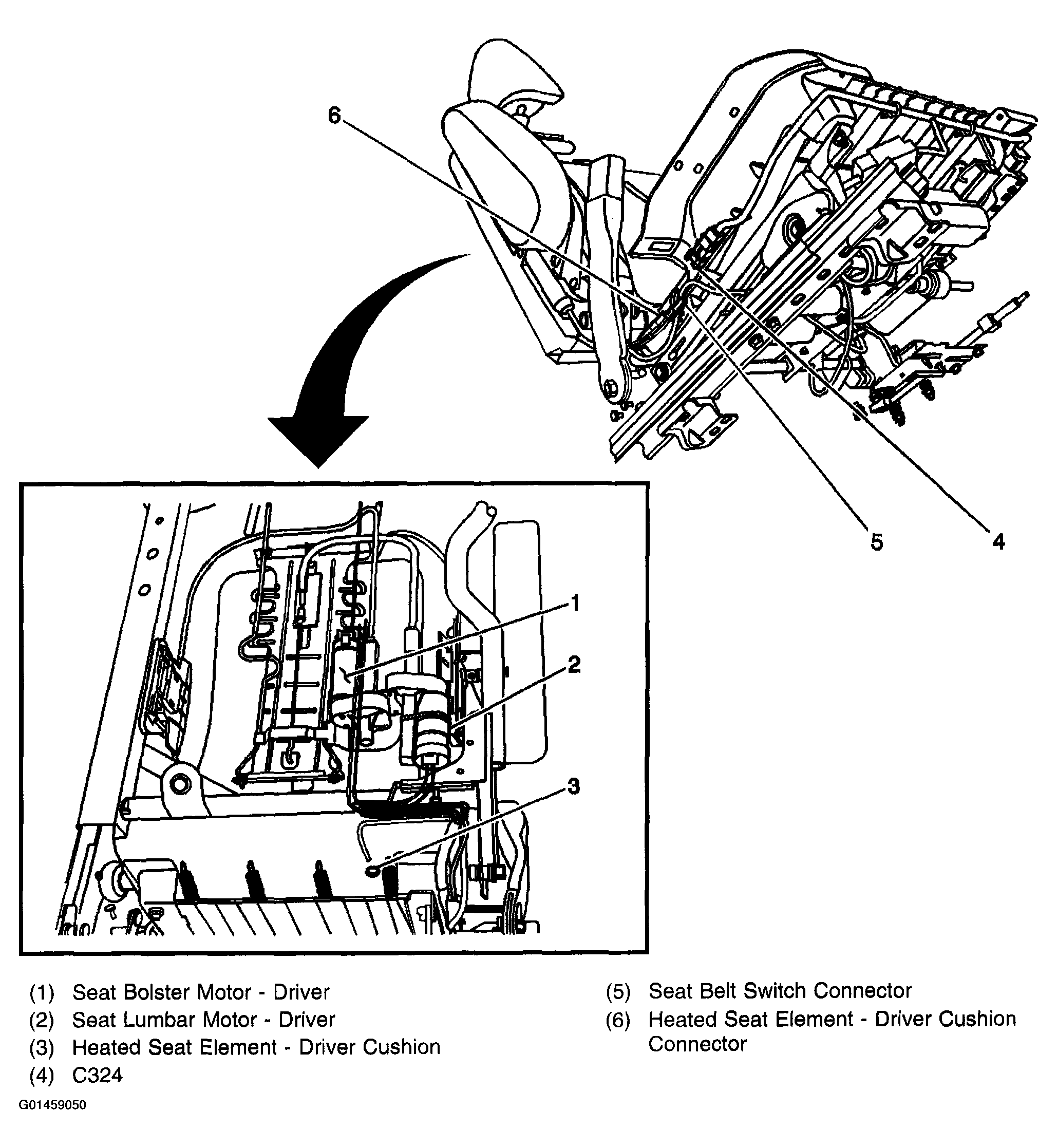

Fig 2: Driver Seat (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Front Passenger Seat - w/AN3 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

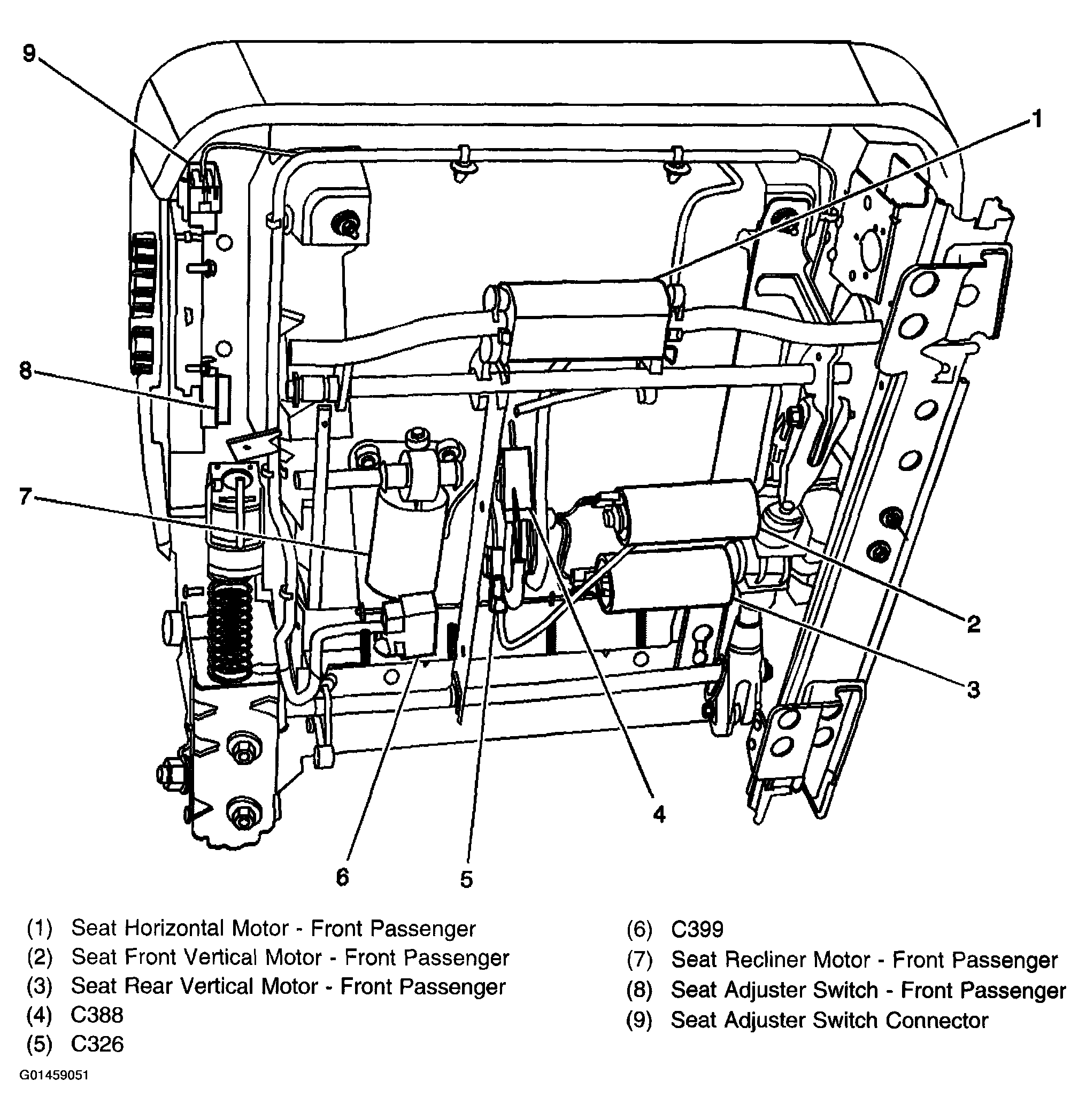

Fig 4: Front Passenger Seat - w/AN3 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
