Diagnostic Information and Procedures
›
Scan Tool Data List
Scan Tool Data List

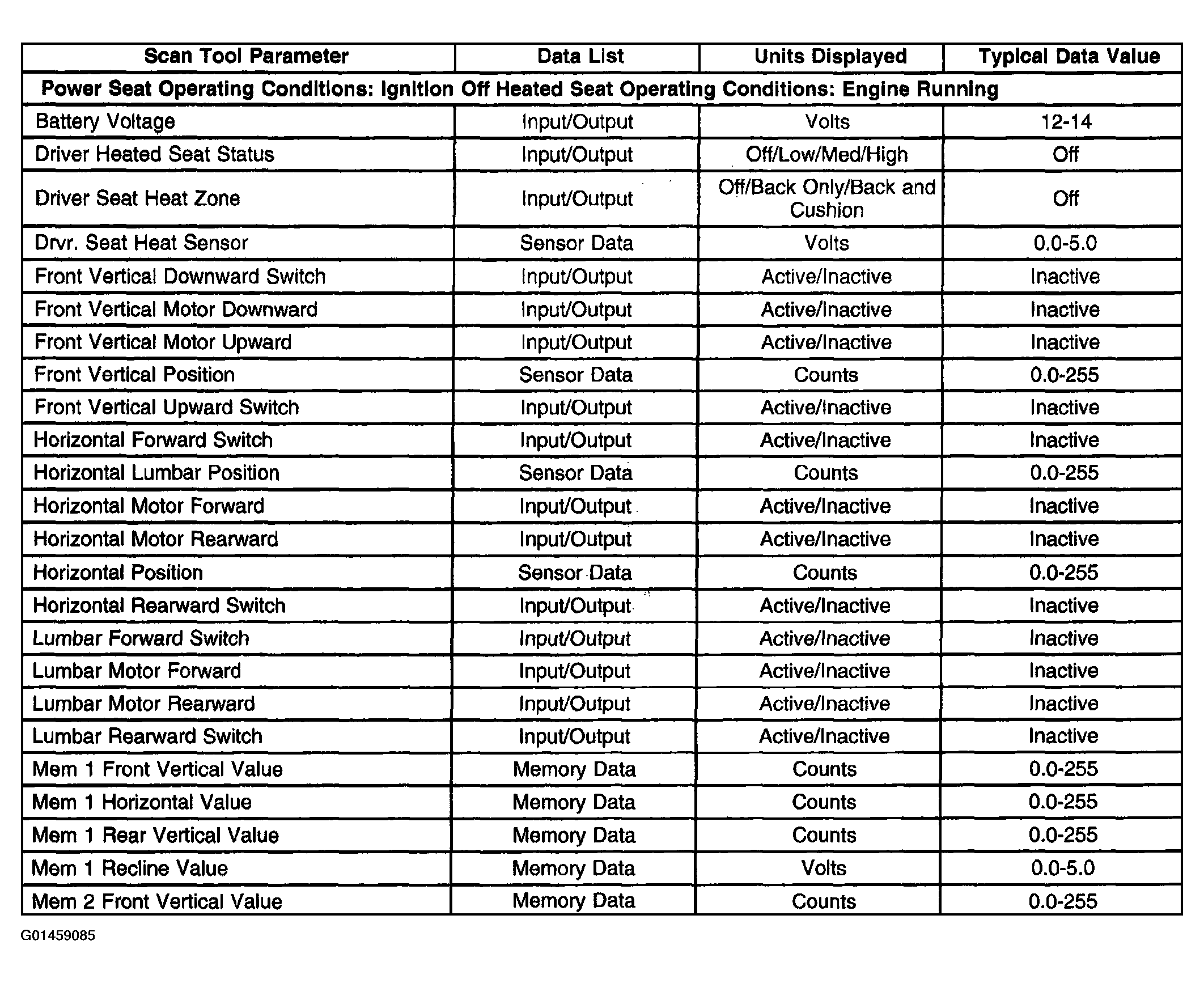

Fig 1: Scan Tool Data List - Driver Seat Module (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

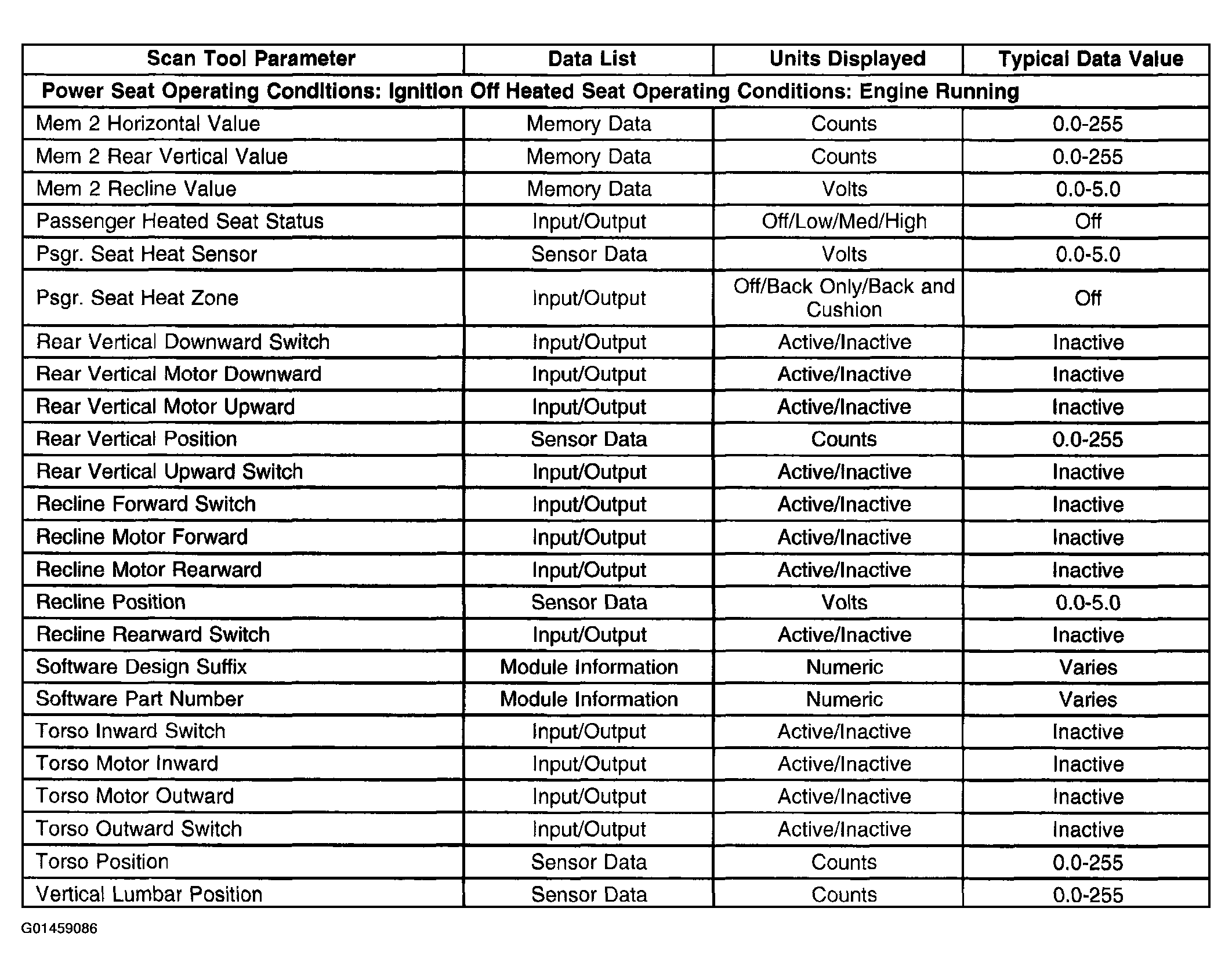

Fig 2: Scan Tool Data List - Driver Seat Module (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

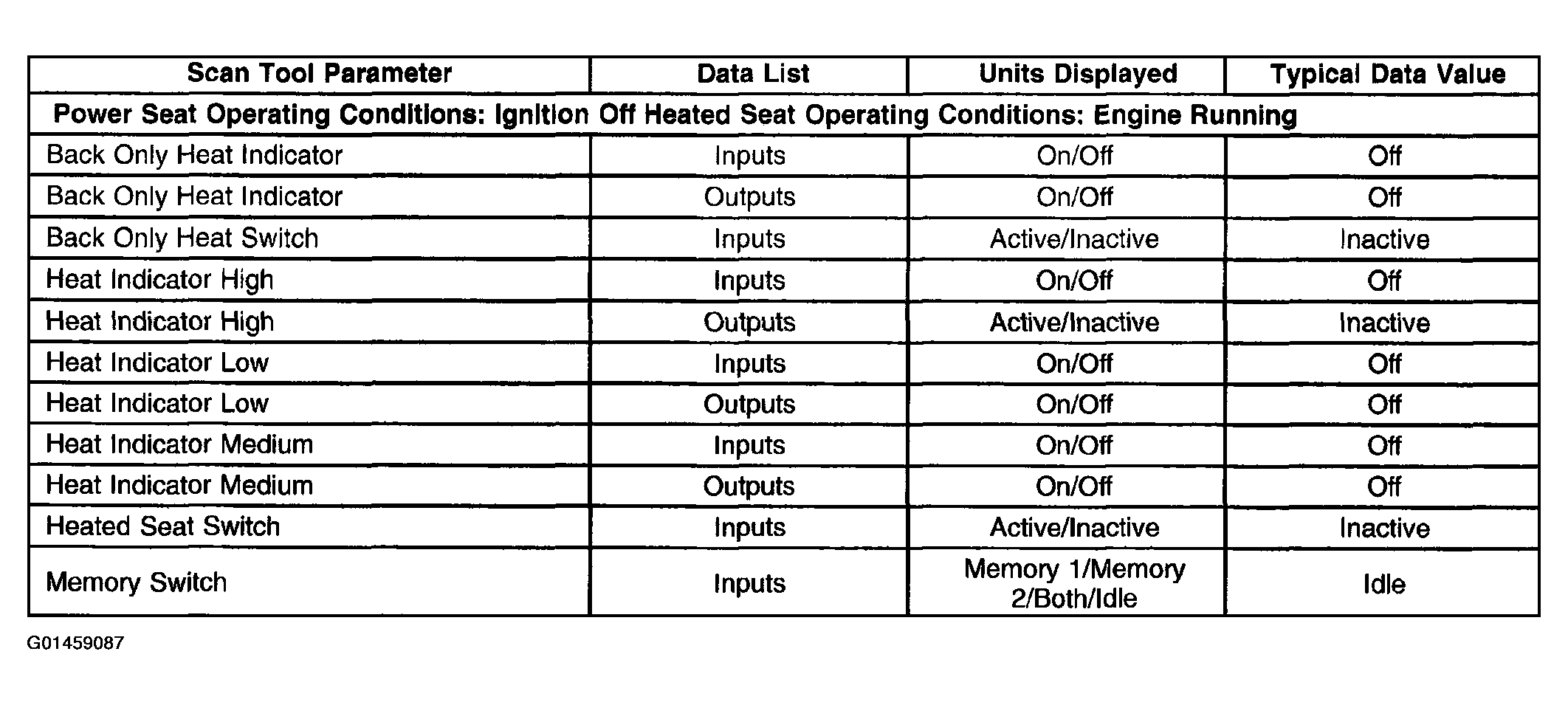

Fig 3: Scan Tool Data List - Driver Door Module
Courtesy of GENERAL MOTORS CORP.
Fig 4: Scan Tool Data List - Passenger Door Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
