Removal Procedure

  1. Remove the power seat switch bezel containing the lumbar switch (1) from the seat. Refer to SEAT SWITCH BEZEL REPLACEMENT  .
  2. Remove the lumbar switch screws from the power seat switch bezel.
  3. Remove the lumbar switch.

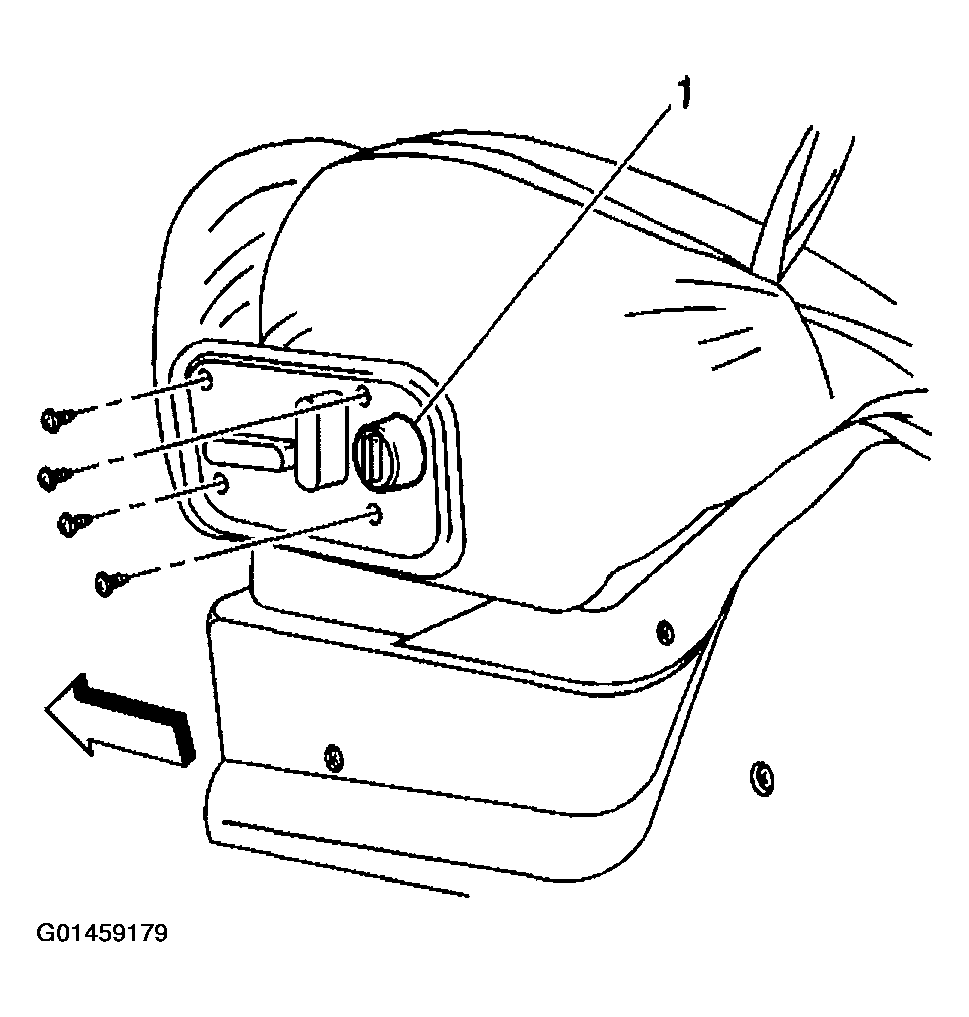

    Fig 1: Removing Lumbar Switch Screws From Power Seat Switch Bezel
    G01459179Courtesy of GENERAL MOTORS CORP.
