Installation Procedure

  1. Install the following components to the seat cushion frame:
    • The plastic retainers (3)
    • The frame suspension (2)
    • The frame springs (1)
  2. Install the seat cushion trim cover and pad. Refer to SEAT CUSHION TRIM COVER AND PAD REPLACEMENT  .
  3. Install the seat trim panel. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .
  4. Re-zero the inflatable restraint passenger presence system. Refer to Passenger Presence System Rezeroing Procedure in SIR.

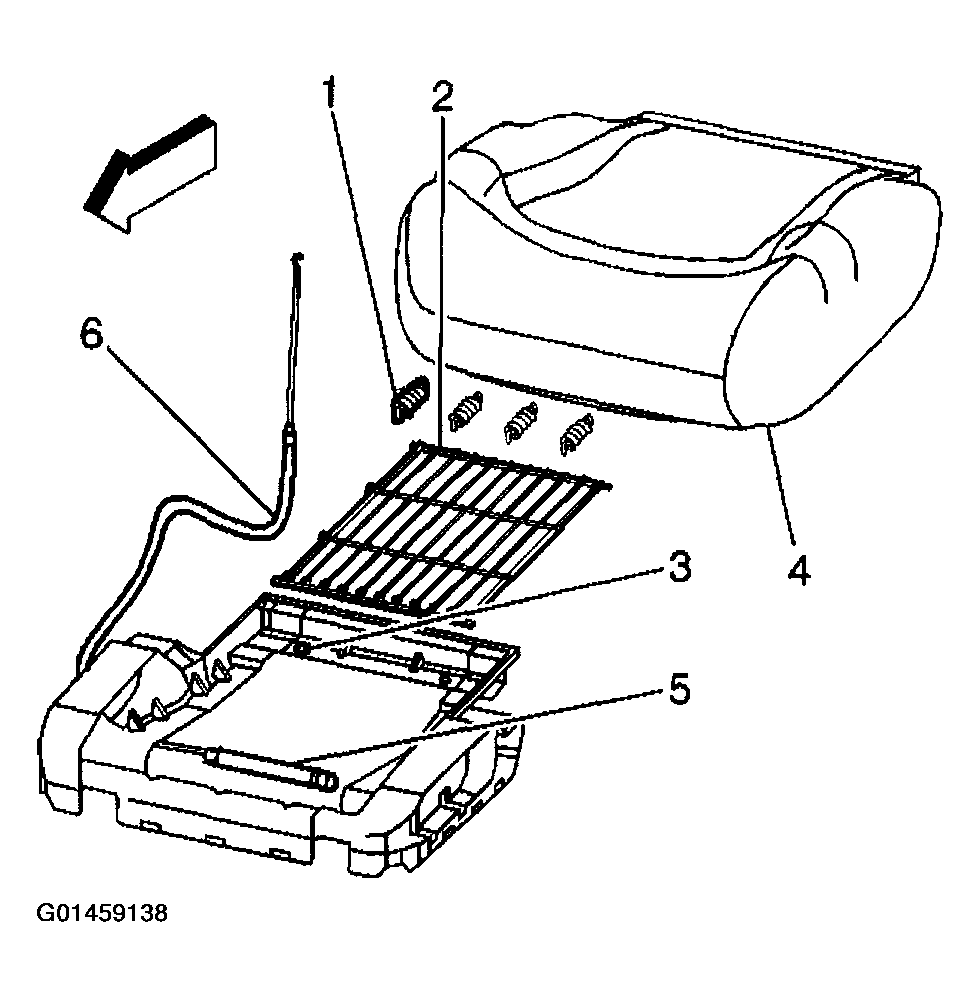

    Fig 1: Installing Front Seat Cushion Frame
    G01459138Courtesy of GENERAL MOTORS CORP.
