Removal Procedure

  1. Remove the screws retaining the power seat switch bezel.
  2. Disconnect the electrical connectors.
  3. Remove the lumbar support switch.
  4. Remove the power seat adjuster switch assembly.

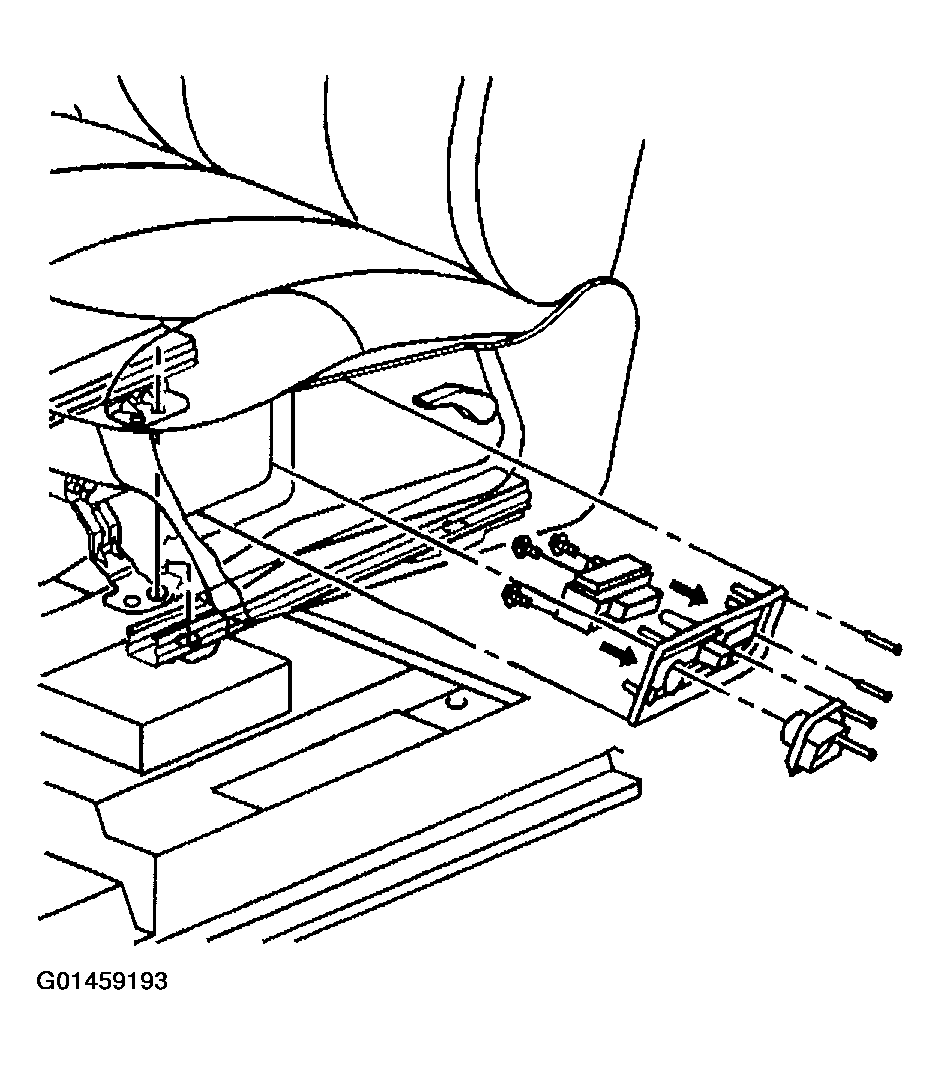

    Fig 1: Removing Screws Retaining Power Seat Switch Bezel
    G01459193Courtesy of GENERAL MOTORS CORP.
