Removal Procedure

  1. Remove the power seat switch bezel from the seat. Refer to SEAT SWITCH BEZEL REPLACEMENT  .

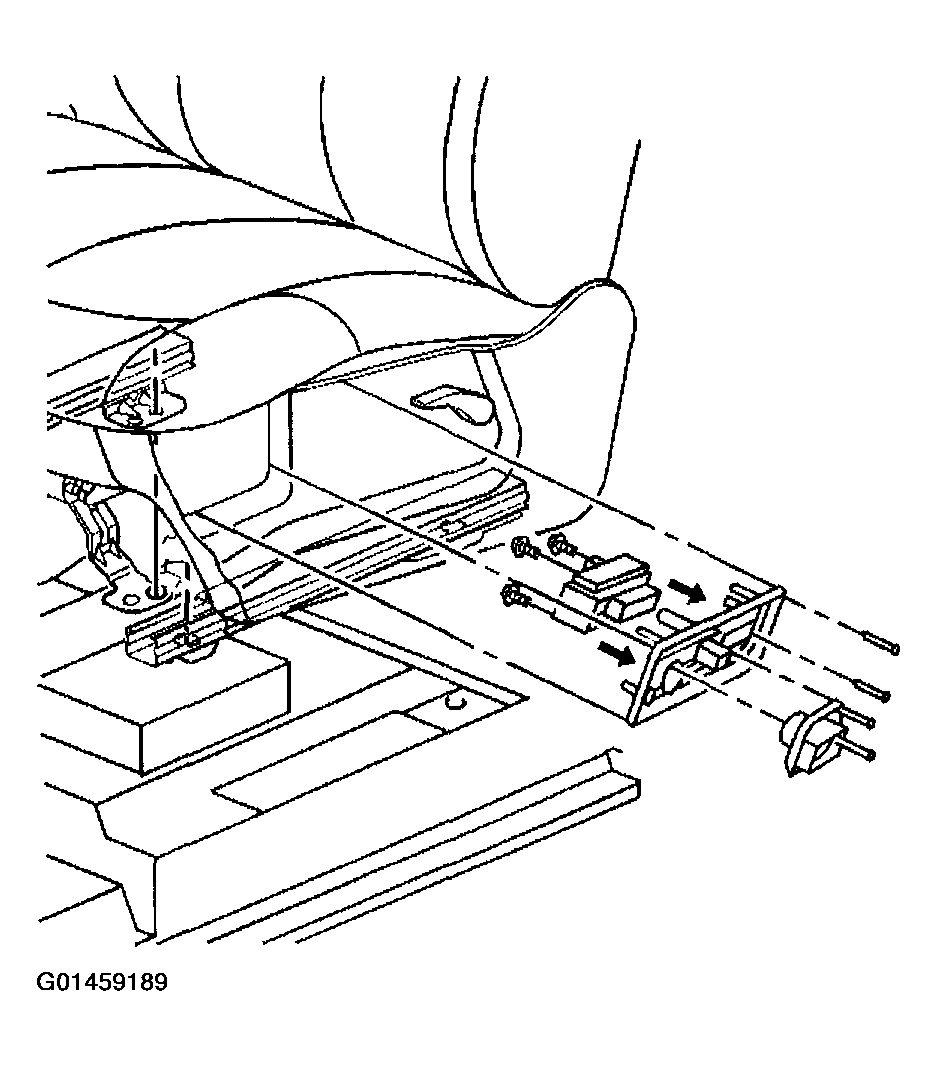

    Fig 1: Removing Power Seat Switch Bezel From Seat
    G01459189Courtesy of GENERAL MOTORS CORP.
  2. Remove the power seat switch to bezel screws.
  3. Remove the power seat switch.

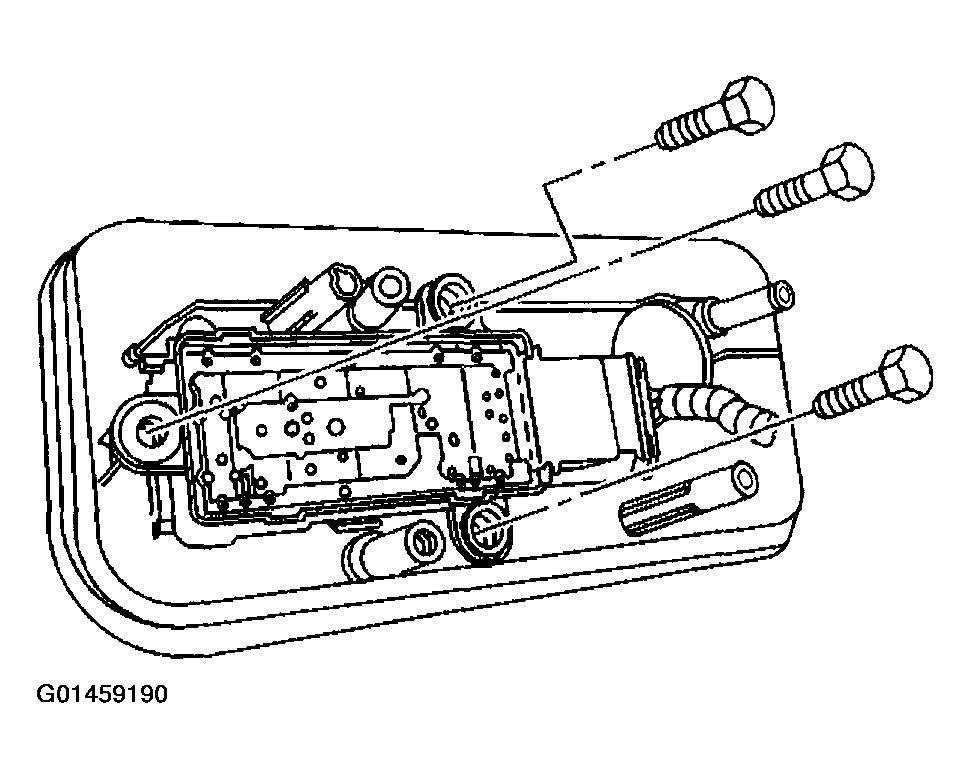

    Fig 2: Removing Power Seat Switch To Bezel Screws
    G01459190Courtesy of GENERAL MOTORS CORP.
