Power Windows Inoperative - Express Down Function
Power Windows Inoperative - Express Down Function

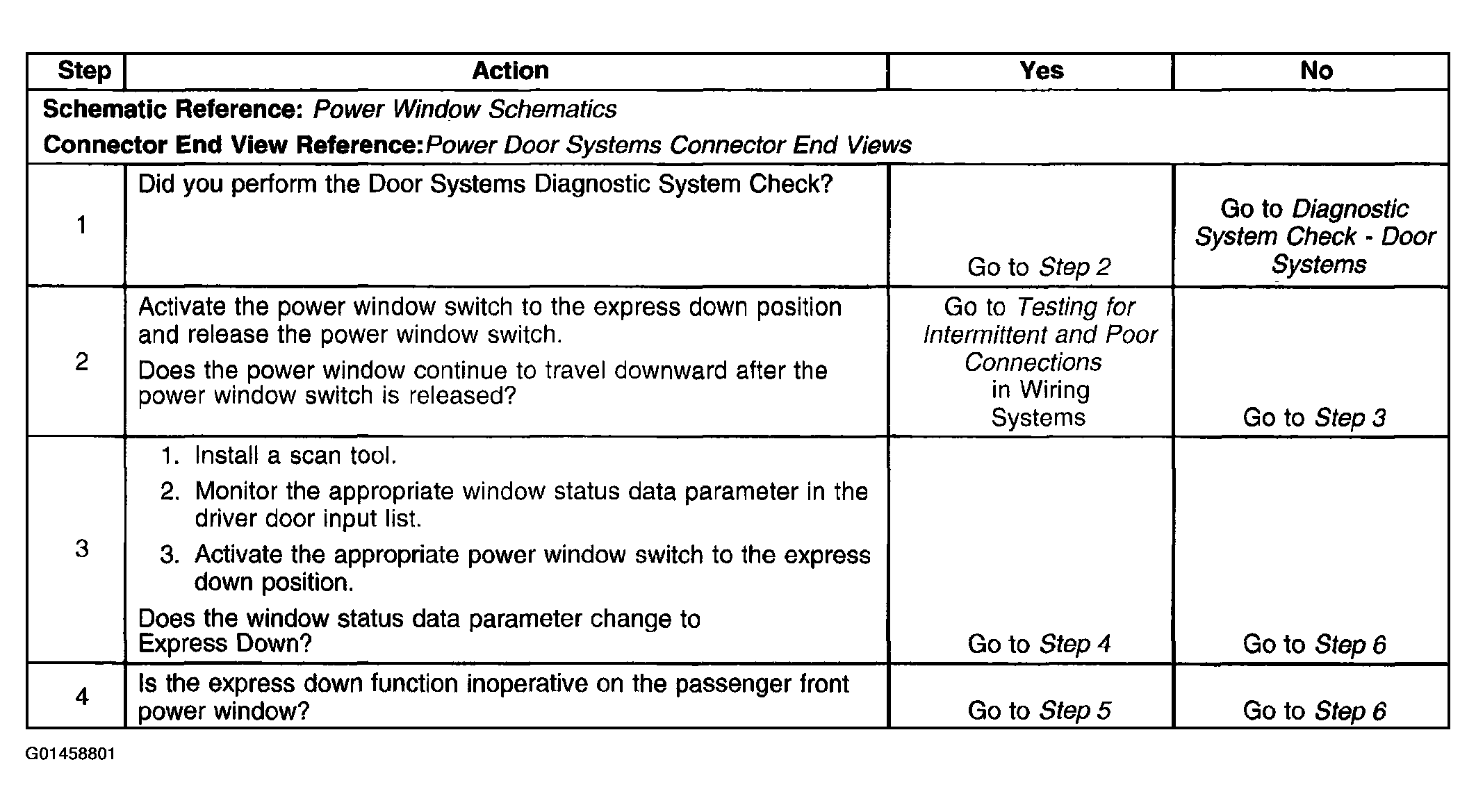

Fig 1: Power Windows Inoperative Chart (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

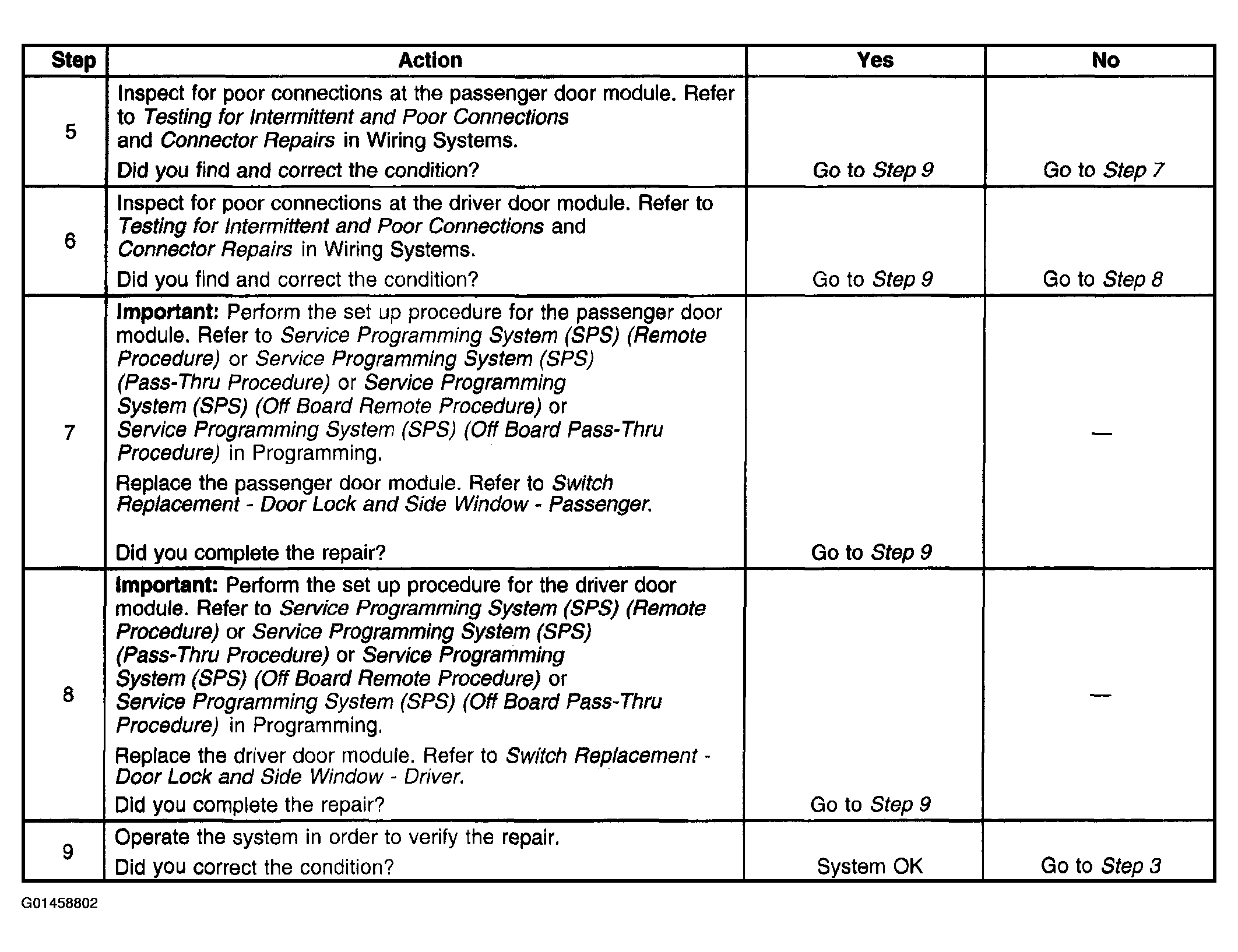

Fig 2: Power Windows Inoperative Chart (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
