Power Windows Inoperative - Lockout Function

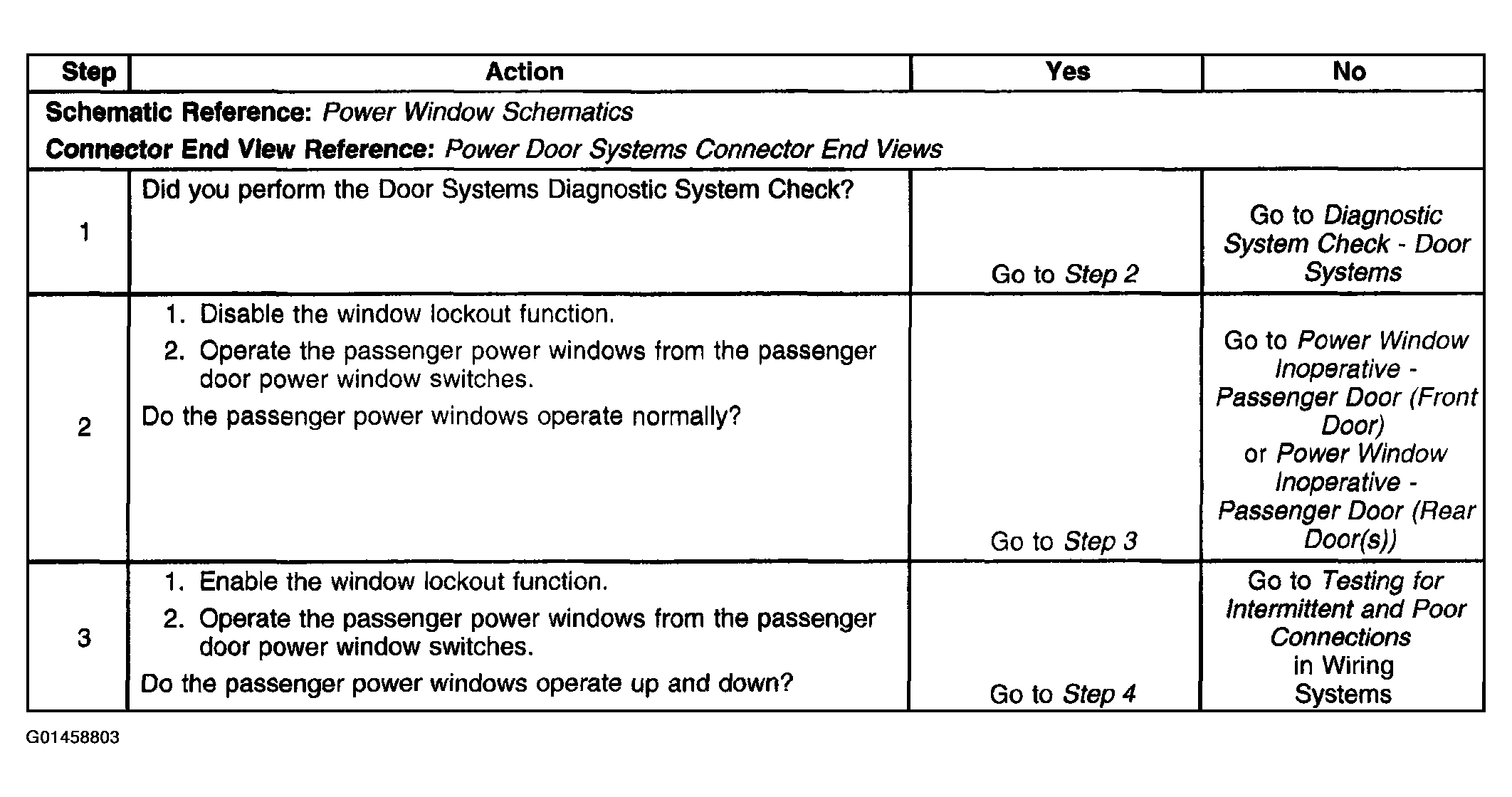

Fig 1: Power Windows Inoperative - Lockout Function Chart (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

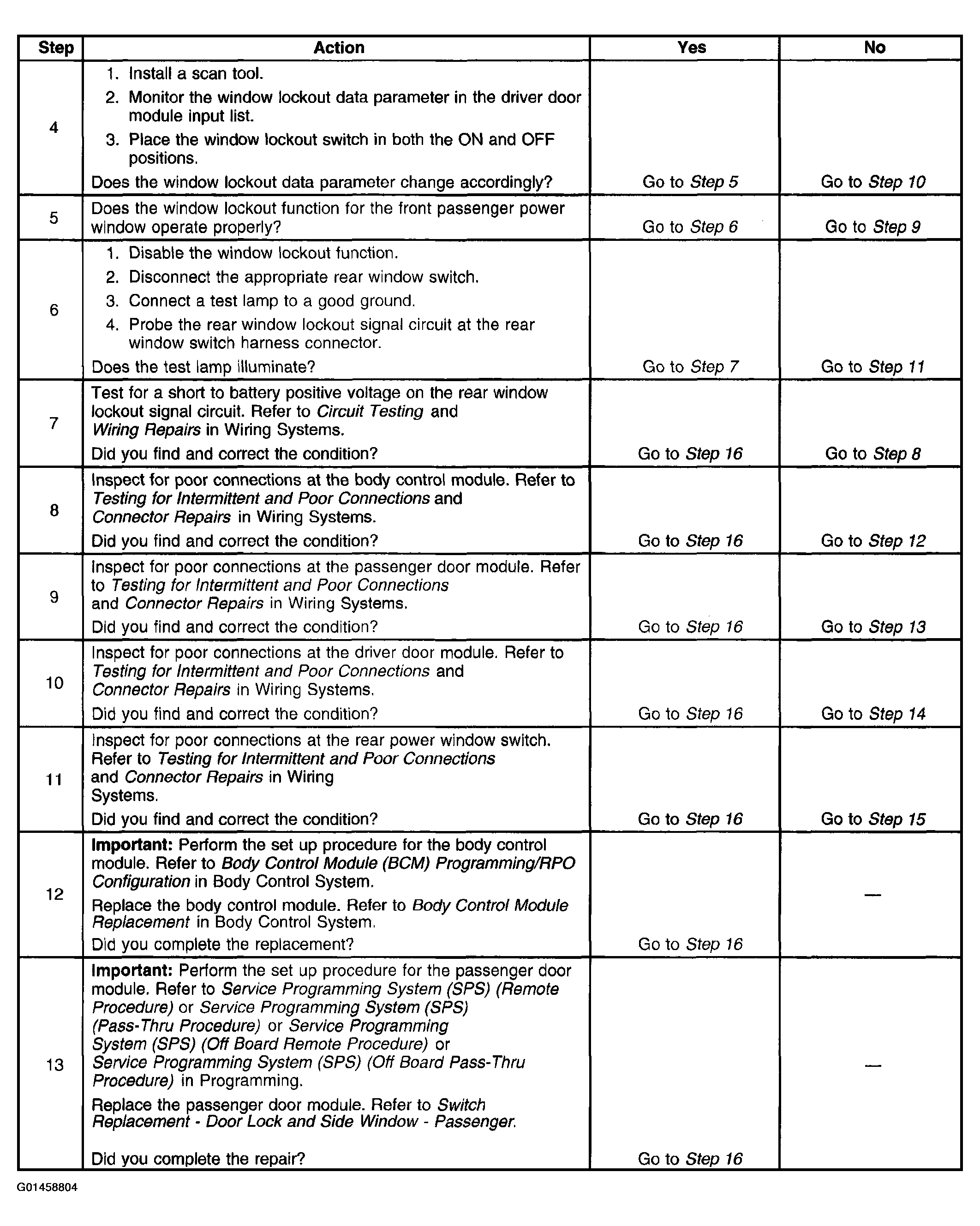

Fig 2: Power Windows Inoperative -Lockout Function Chart (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

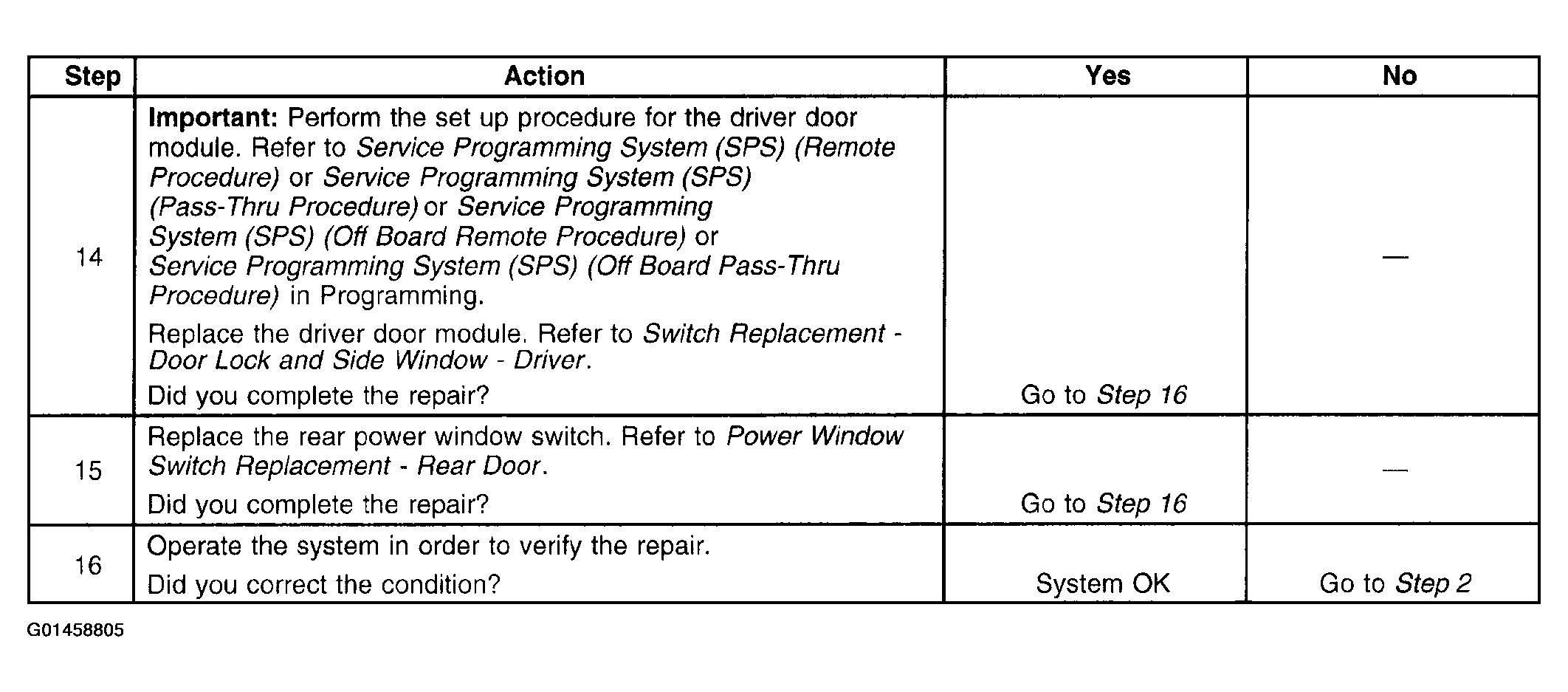

Fig 3: Power Windows Inoperative - Lockout Function Chart (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
