Scan Tool Data List

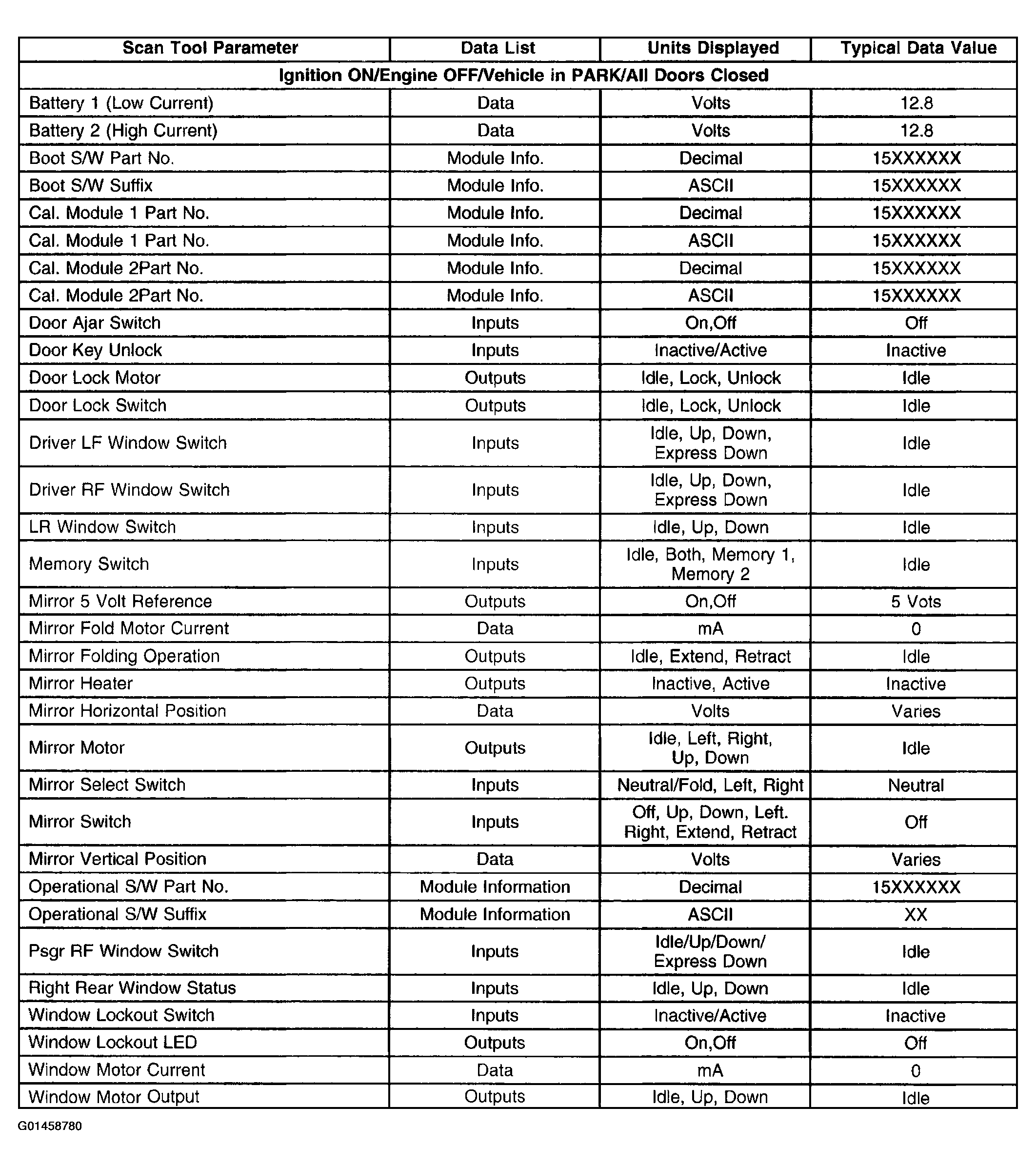

Fig 1: Driver/Passenger Door Module Scan Tool Specification Chart
Courtesy of GENERAL MOTORS CORP.

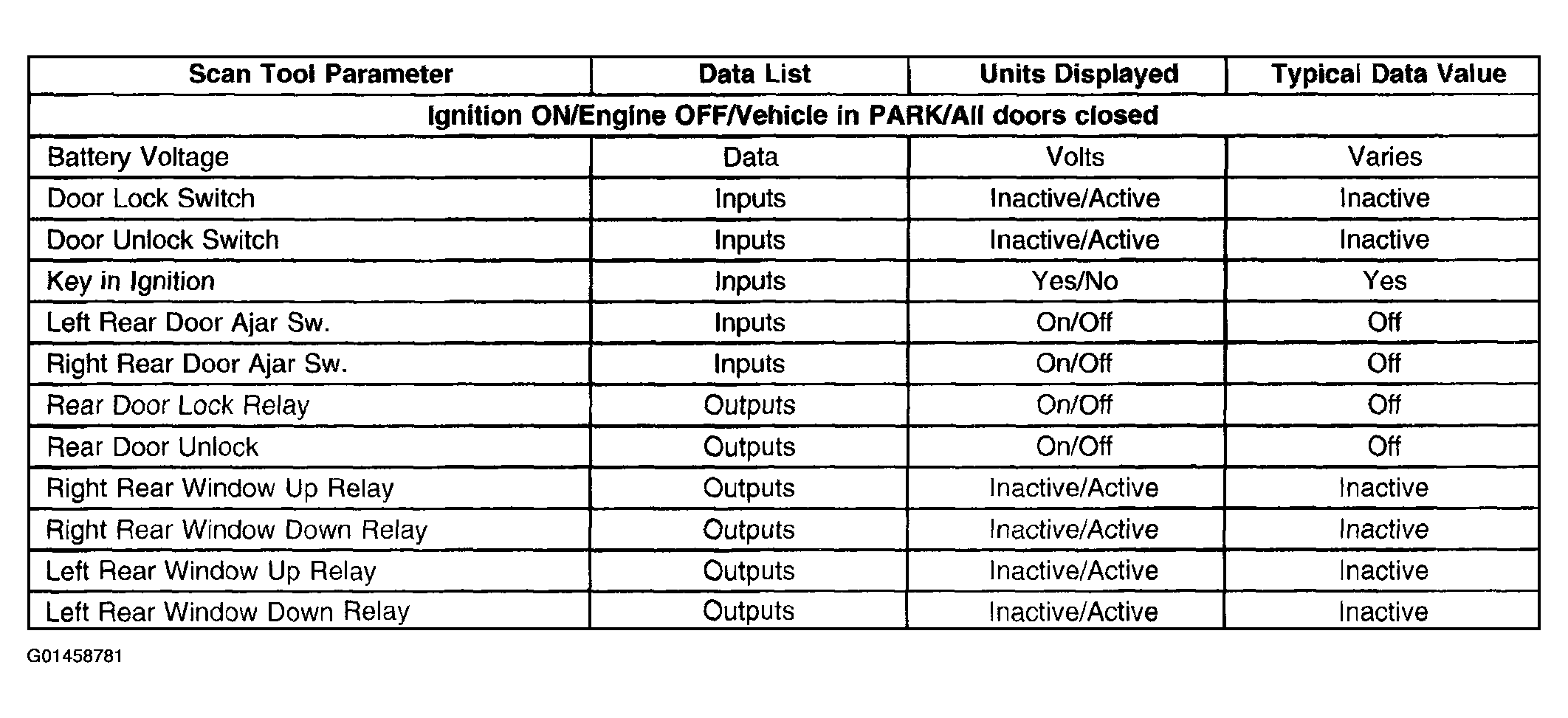

Fig 2: Driver/Passenger Door Module Scan Tool Specification Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
