Removal Procedure

Remove the front door trim panel upper extension. Refer to TRIM PANEL REPLACEMENT - UPPER EXTENSION .
Remove the nuts that retain the outside mirror to the door.
Remove the outside mirror from the door.

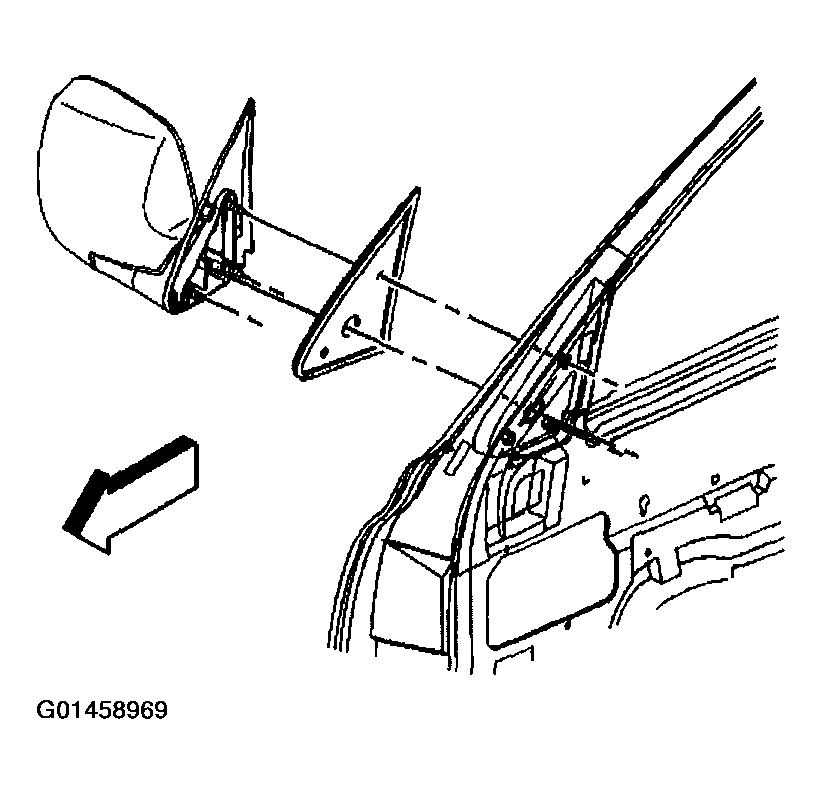

Fig 1: Removing Manual Mirror

Courtesy of GENERAL MOTORS CORP.
