Installation Procedure

Position the lower retainer to the trim panel.

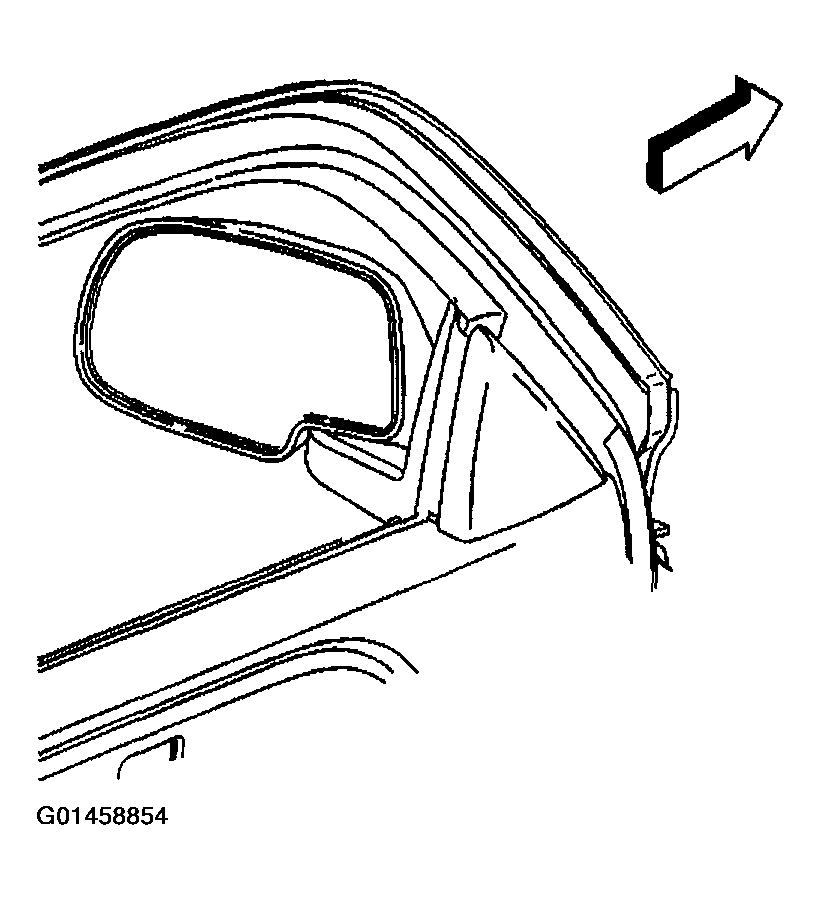

Fig 1: Installing Trim Panel Upper Extension

G01458854

Courtesy of GENERAL MOTORS CORP.

Align the upper retainer clip to the door frame.
Install the upper extension by pressing into place until fully seated.
