Home › Cadillac › 2003 › Escalade EXT › Repair and Diagnosis › Body & Frame › Windows › Door System, Mirror System & Window System › Repair Instructions › Window Handle Replacement › Installation Procedure

Installation Procedure

  1. Install the window crank handle by pushing the handle into place. Ensure that the retainer engages.

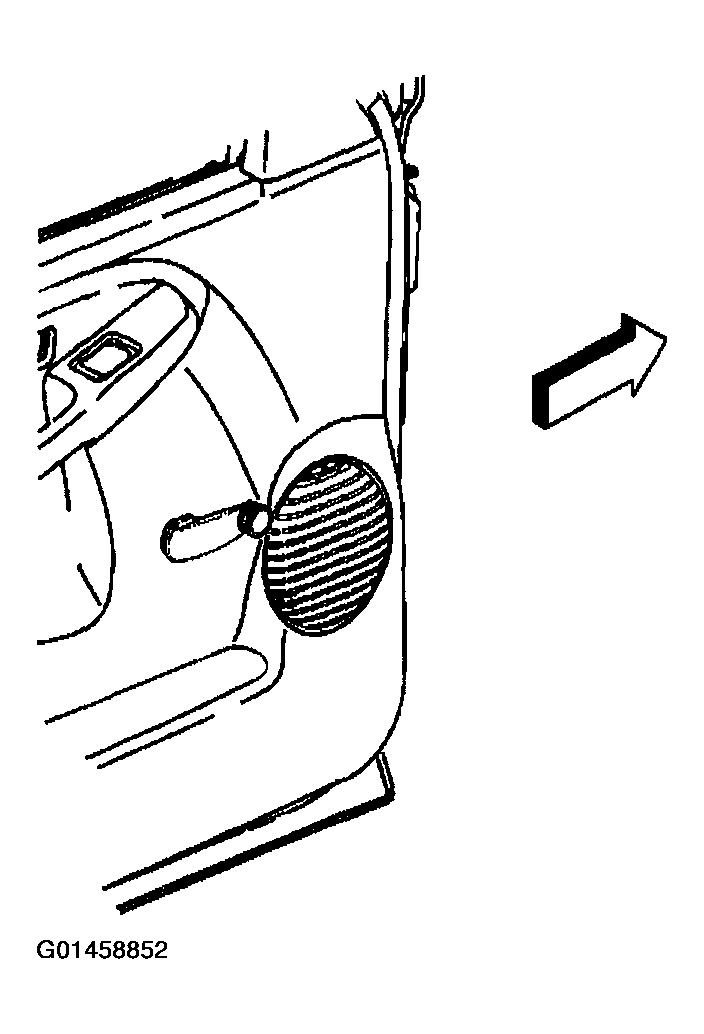

    2. Fig 1: Installing Window Handle
    G01458852Courtesy of GENERAL MOTORS CORP.
  2. Inspect the operation.
