Window Handle Replacement
›
Removal Procedure
Removal Procedure
Open the door.
Remove the window crank handle using the
J 9886-01.
Be sure to retain the retainer clip on the back side of the handle.

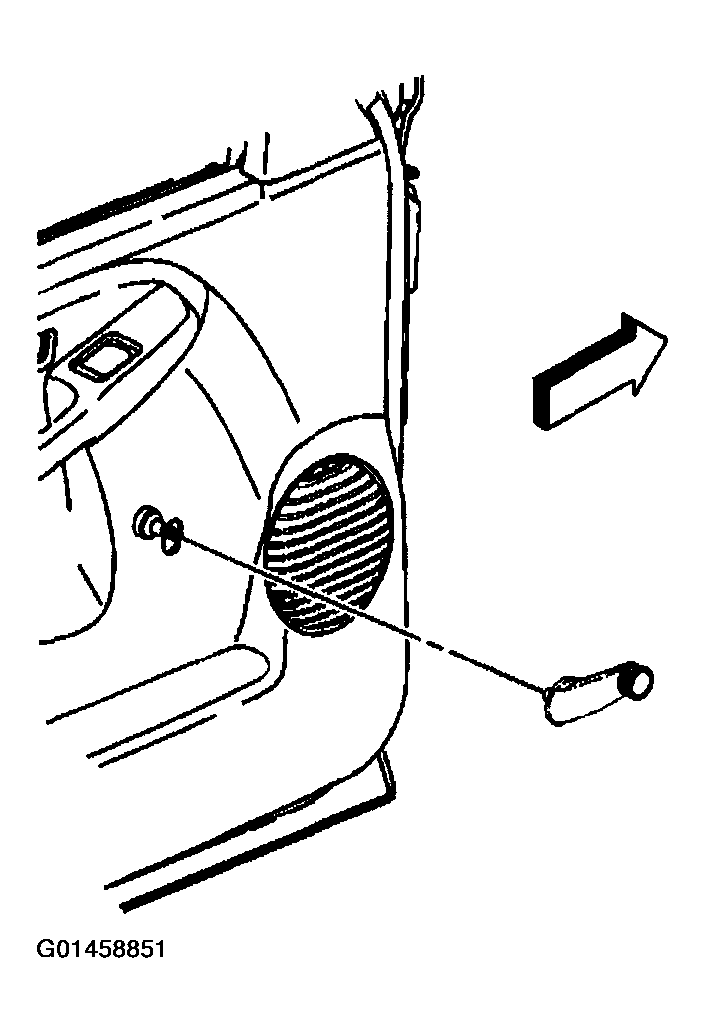

Fig 1: Window Handle Replacement
Courtesy of GENERAL MOTORS CORP.
