Removal Procedure

  1. Remove the window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  2. Remove the window glass weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - FRONT DOOR WINDOW  .
  3. Remove the window run channel bolts.
  4. Remove the front and the rear window run channels from the door.

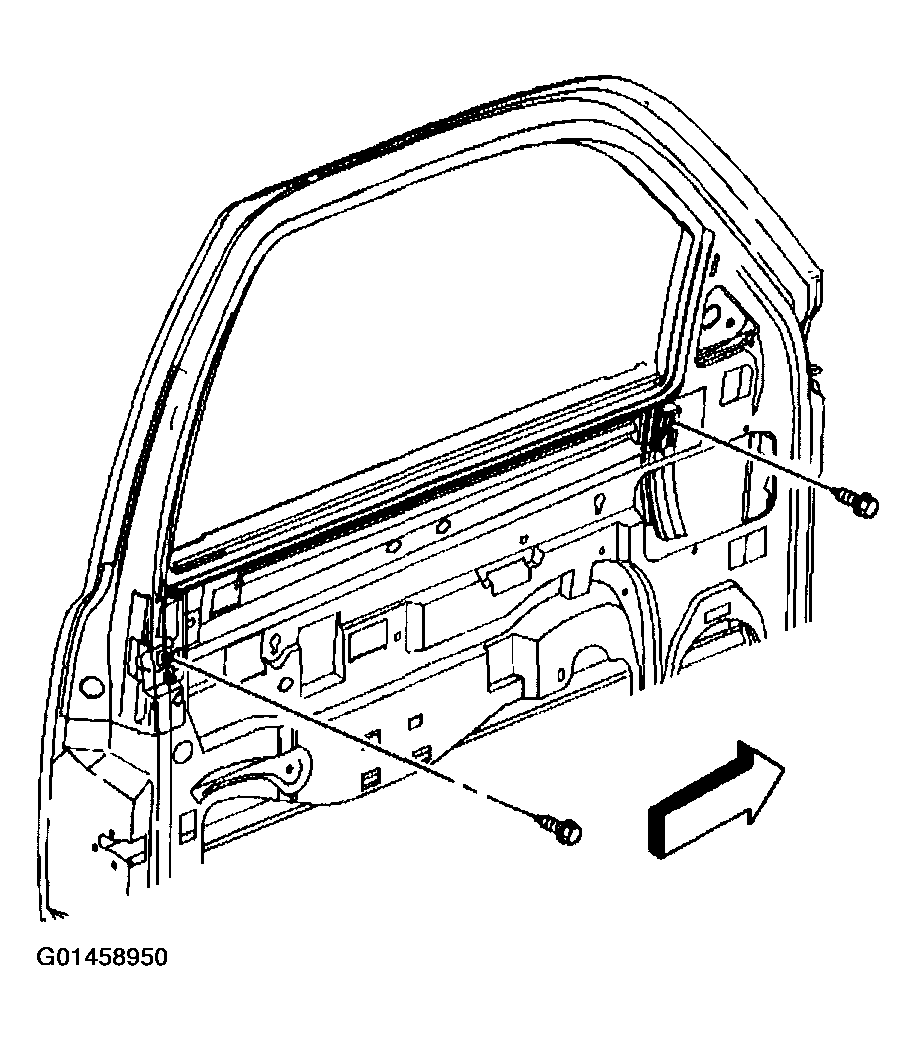

    5. Fig 1: Removing Front Door Window Run Channel
    G01458950Courtesy of GENERAL MOTORS CORP.
