Removal Procedure

  1. Remove the window. Refer to WINDOW REPLACEMENT - REAR DOOR (SUBURBAN/YUKON XL/AVALANCHE/ESCLD E)  or WINDOW REPLACEMENT - REAR DOOR (TAHOE/YUKON/ESCALADE)  .
  2. Remove the window glass weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - REAR DOOR WINDOW  .
  3. Remove the front window run channel top bolt.
  4. Remove the front window run channel from the door.

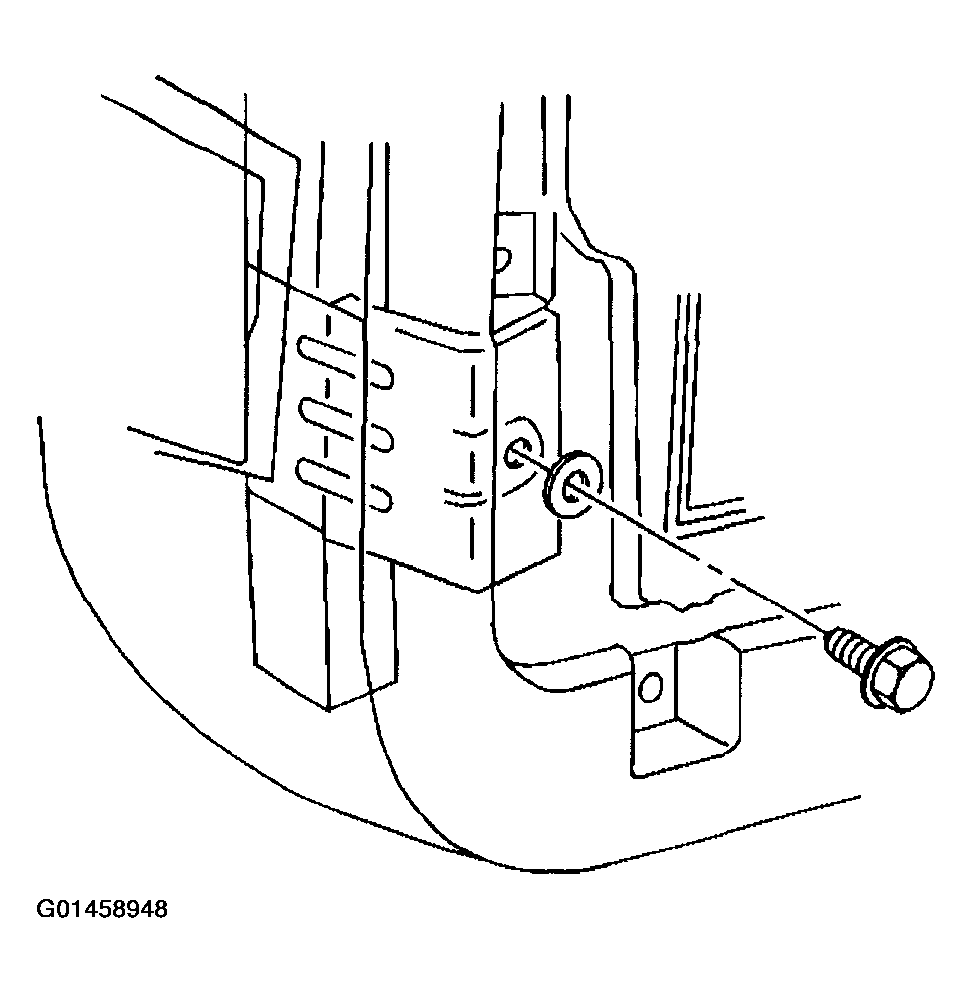

    5. Fig 1: Removing Rear Door Window Run Channel
    G01458948Courtesy of GENERAL MOTORS CORP.
