Stationary Windows Connector End Views

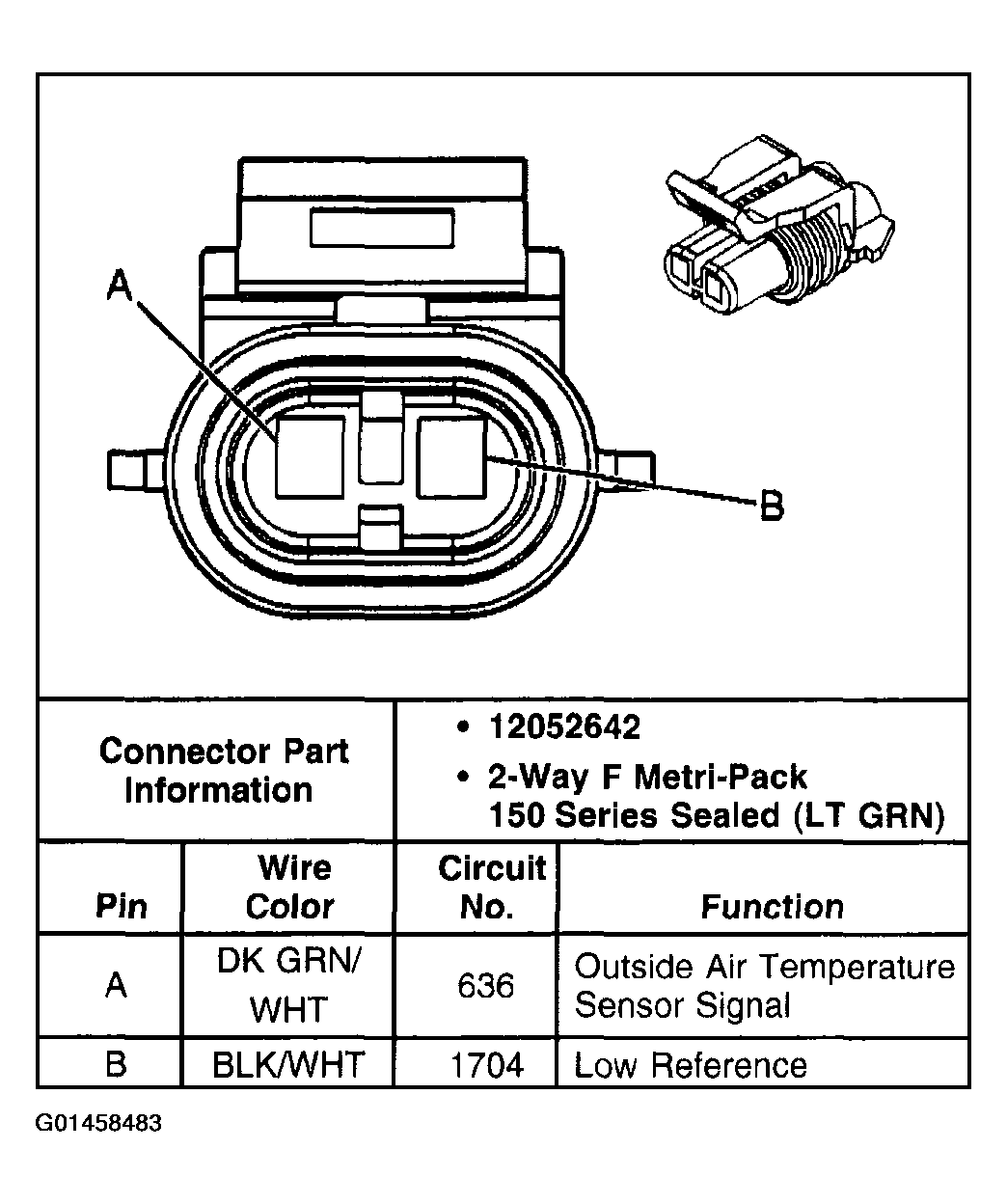

Fig 1: Identifying Air Temperature Sensor - Outside Terminals

Courtesy of GENERAL MOTORS CORP.

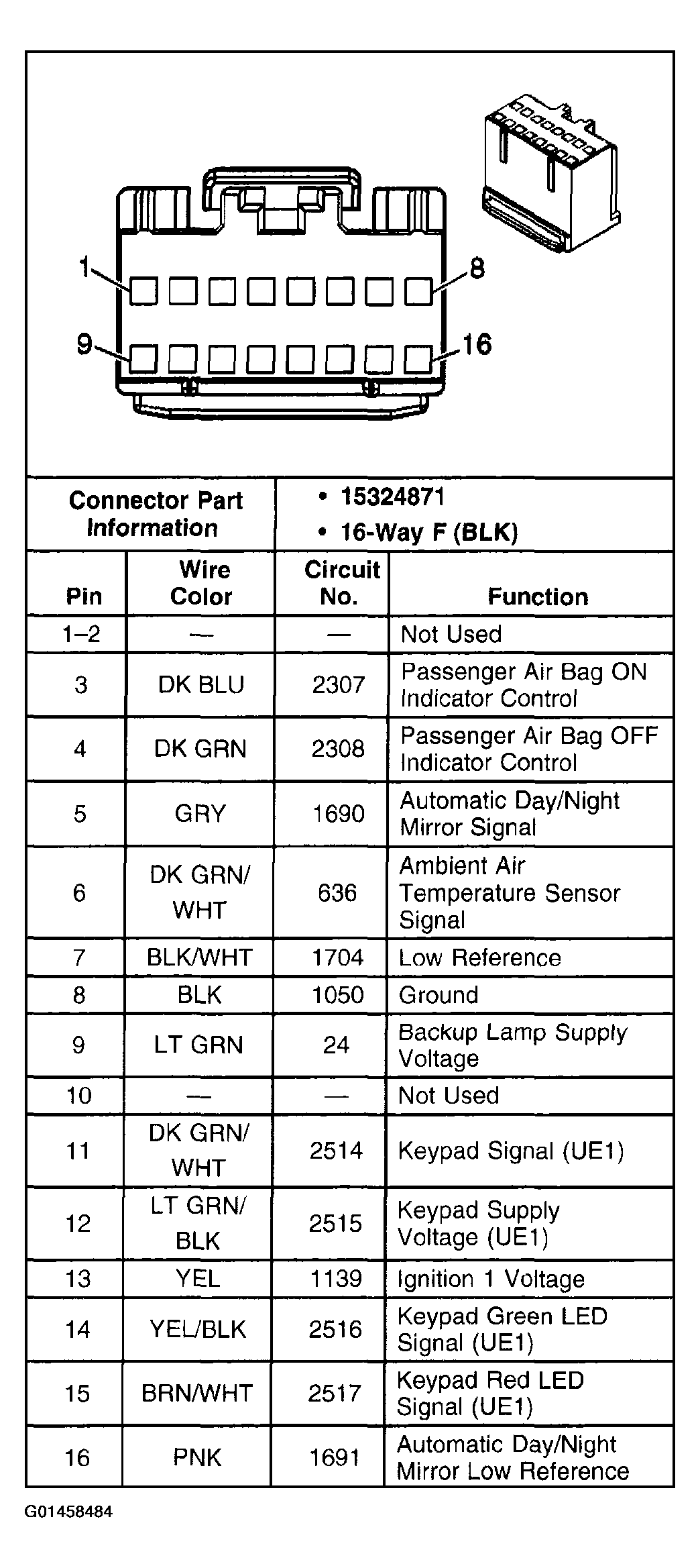

Fig 2: Identifying Inside Rearview Mirror Connector Terminals

Courtesy of GENERAL MOTORS CORP.
