Installation Procedure

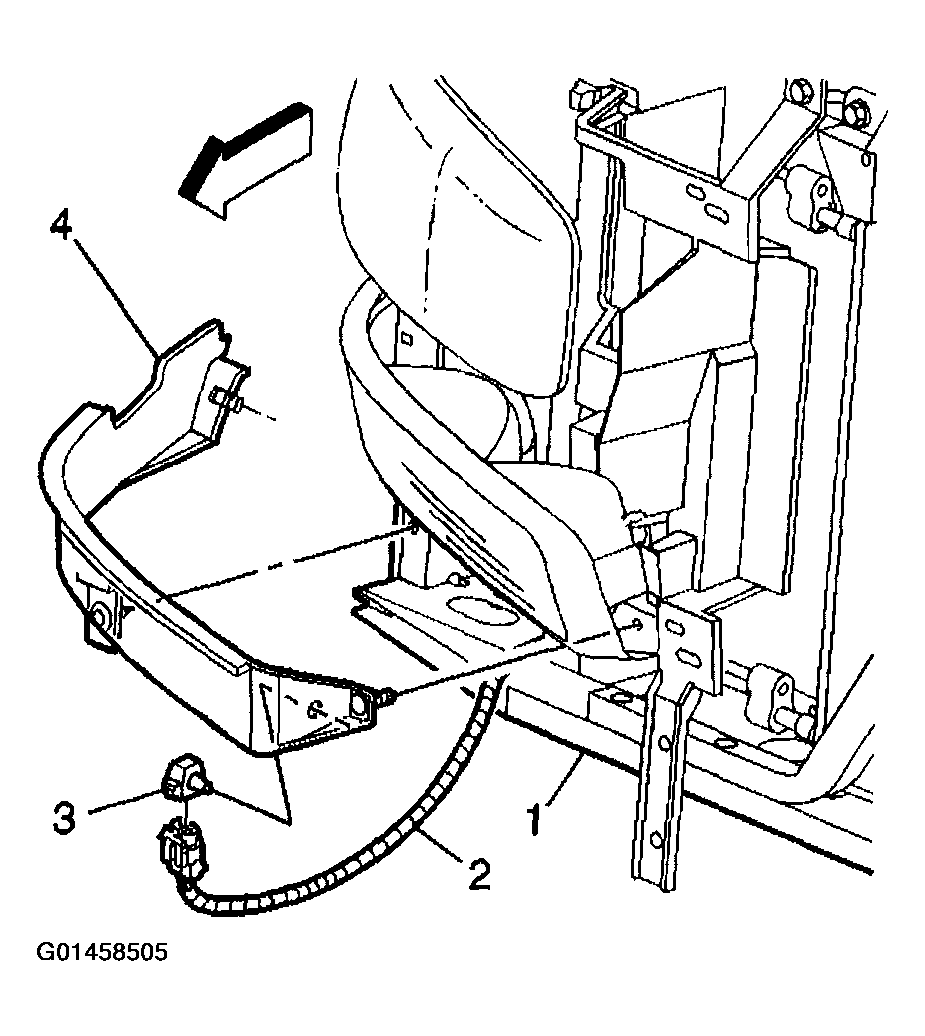

- Install the ambient air temperature sensor (3).
- Connect the electrical connector to the ambient air temperature sensor (3).
- Install the Park/Turn Signal. Refer to PARK/TURN SIGNAL LAMP REPLACEMENT (AVALANCHE) or PARK/TURN SIGNAL LAMP REPLACEMENT (EXCEPT AVALANCHE) in Lighting Systems.
