Defogger schematics (Rear Window Defogger Control)

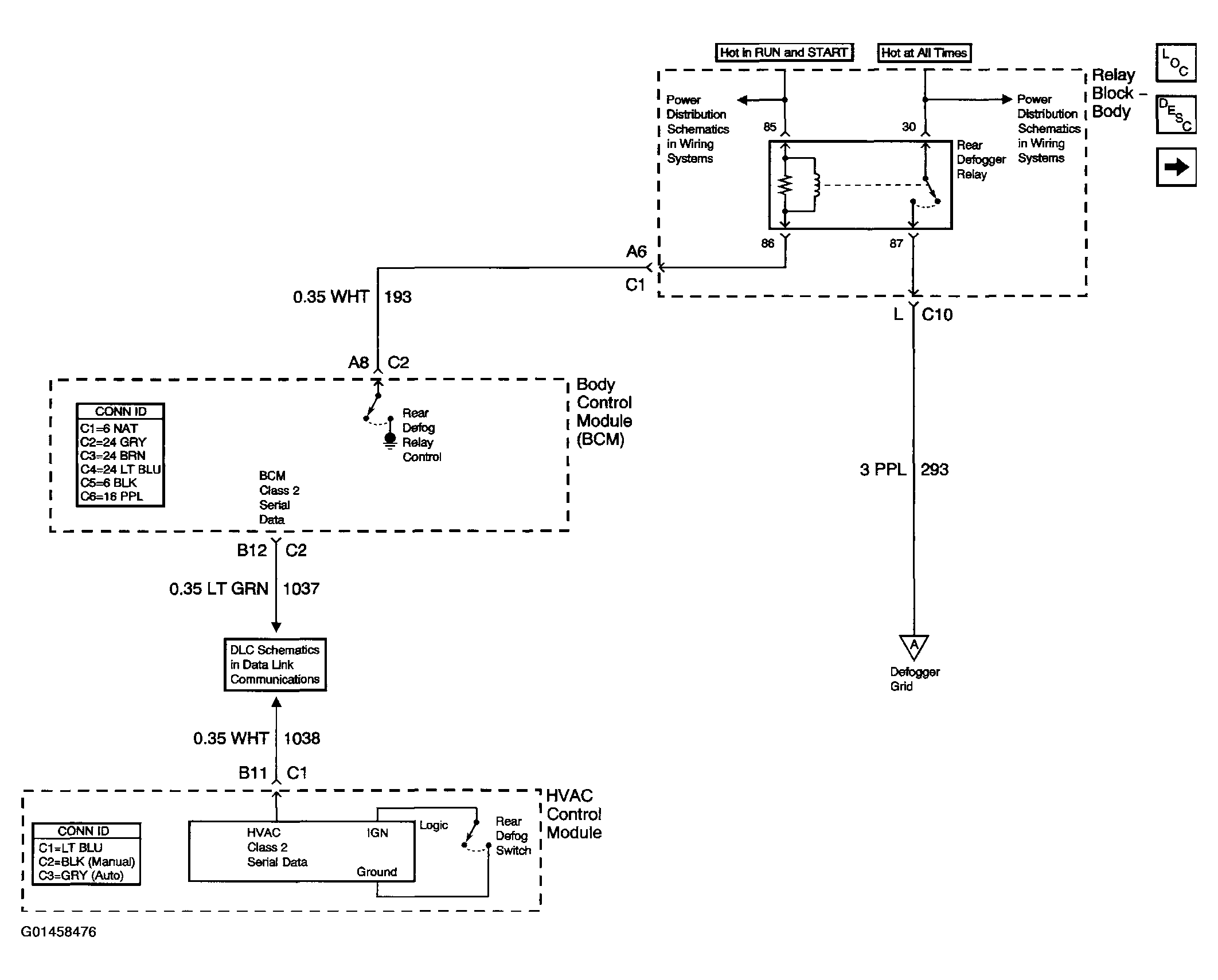

Fig 1: Defogger Schematics Diagram (Rear Window Defogger Control)

Courtesy of GENERAL MOTORS CORP.

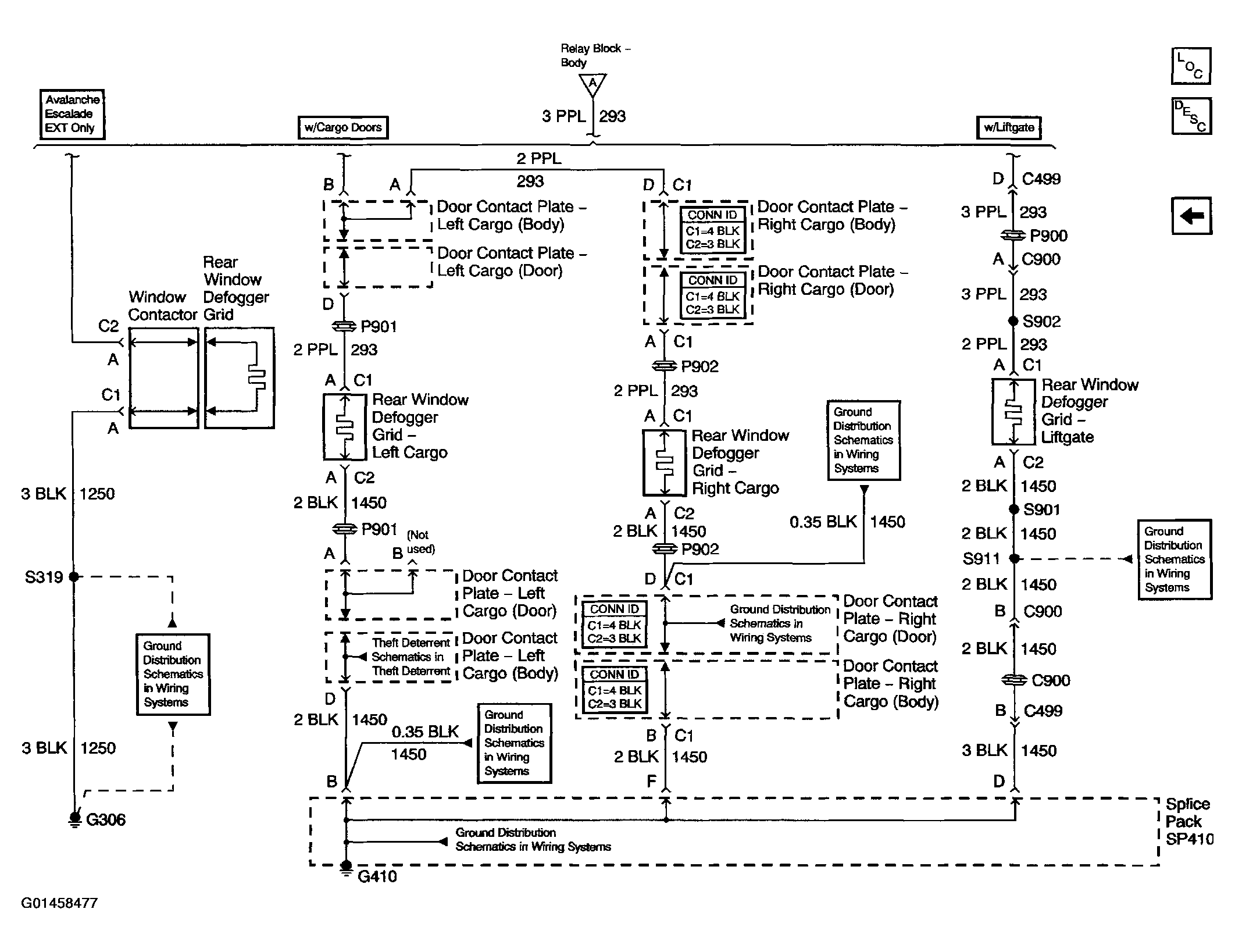

Fig 2: Defogger Schematics Diagram (Defogger Grid And Ground)

Courtesy of GENERAL MOTORS CORP.
