Installation Procedure

  1. Connect the harness connector to the traction control switch.
  2. Install the traction control switch (2) into the instrument panel (IP) assembly (3), making sure that all of the switch retaining tabs (1) are engaged.

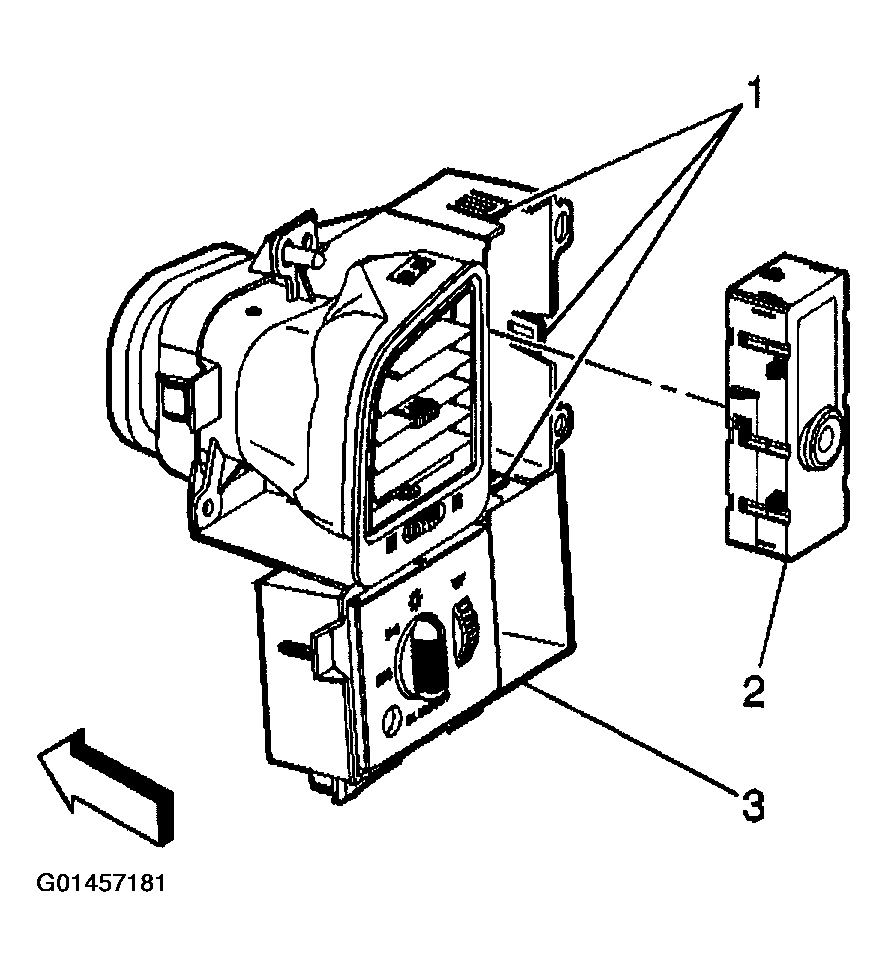

    3. Fig 1: Installing Traction Control Switch Into Instrument Panel (IP) Assembly
    G01457181Courtesy of GENERAL MOTORS CORP.
  3. Install the I/P bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.
