A/C Compressor Clutch Connector End View

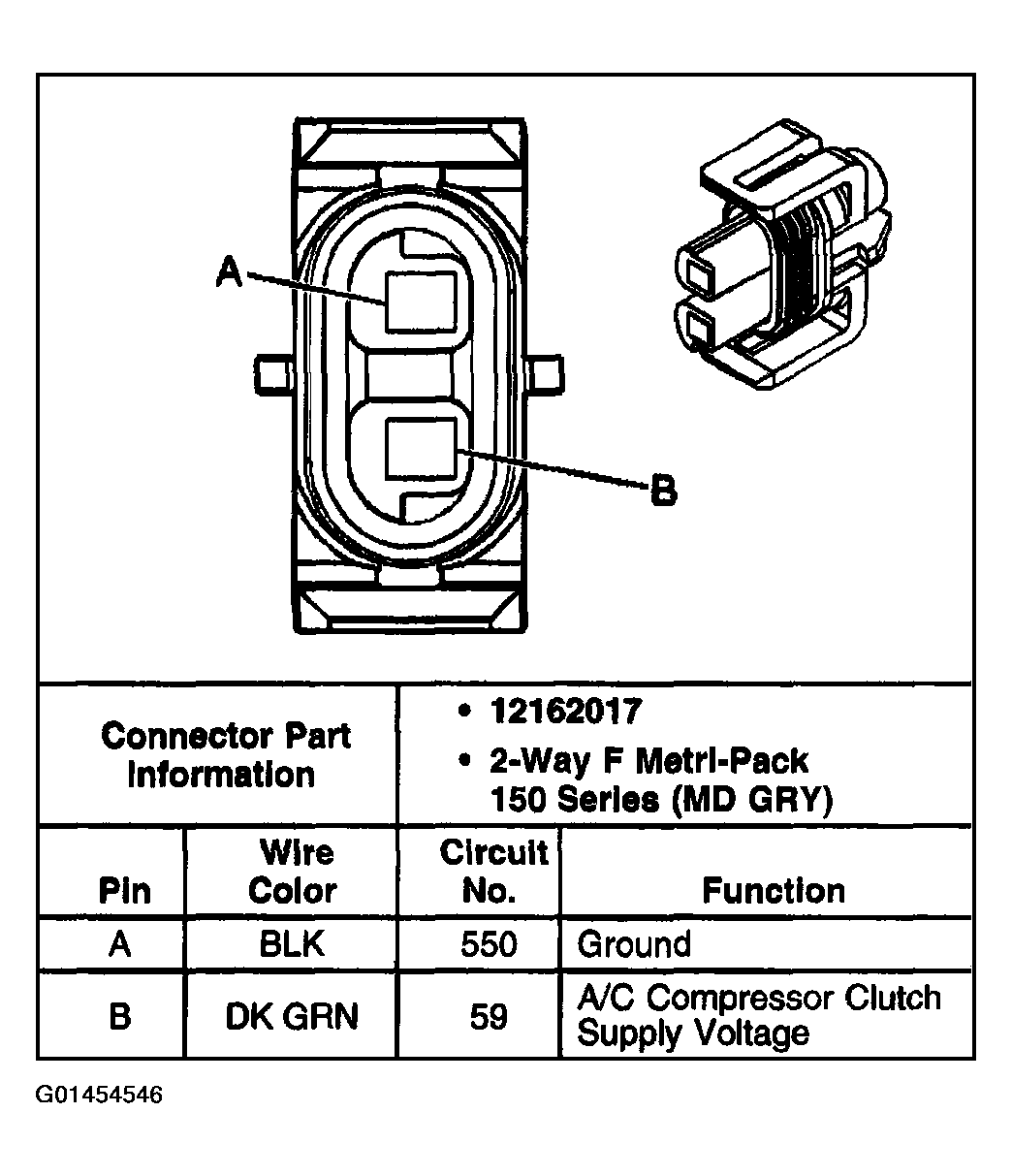

Fig 1: A/C Compressor Clutch Connector End View
G01454546Courtesy of GENERAL MOTORS CORP.

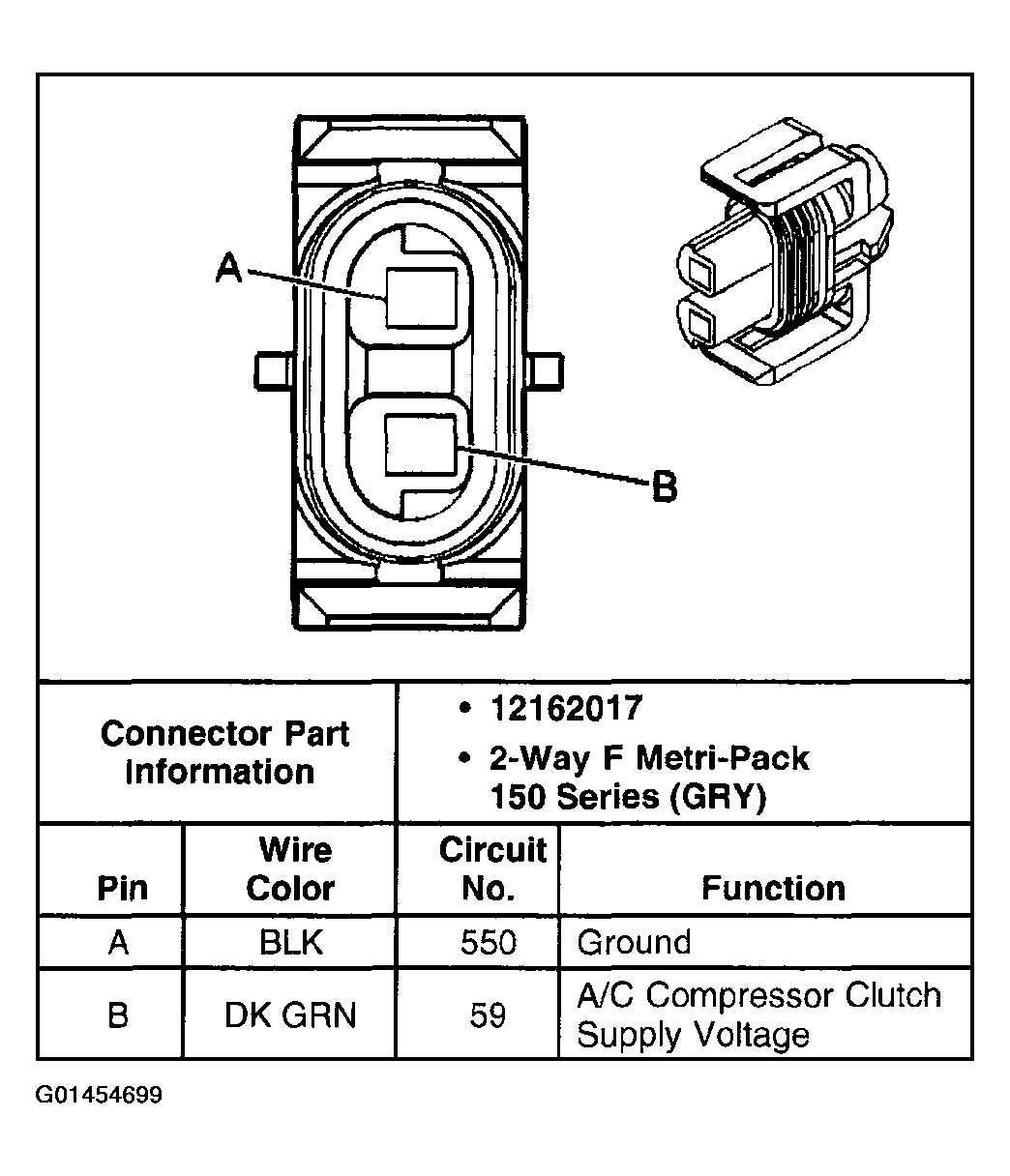

Fig 1: A/C Compressor Clutch Connector End View
G01454699Courtesy of GENERAL MOTORS CORP.
