Air Temperature Sensor Connector End View - Lower Left

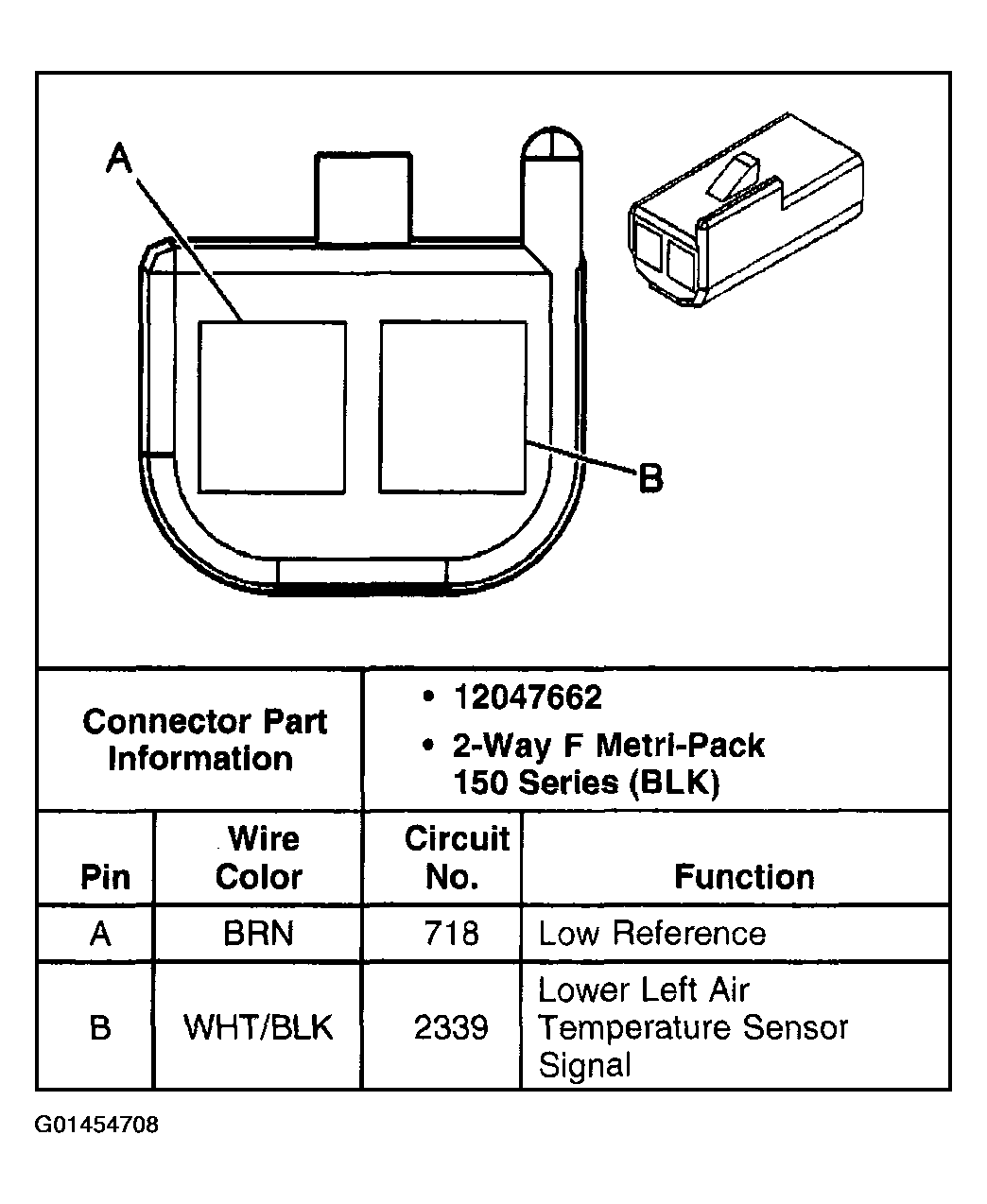

Fig 1: Air Temperature Sensor Connector End View - Lower Left
G01454708Courtesy of GENERAL MOTORS CORP.
