Air Temperature Sensor Connector End View - Upper Left
Air Temperature Sensor Connector End View - Upper Left

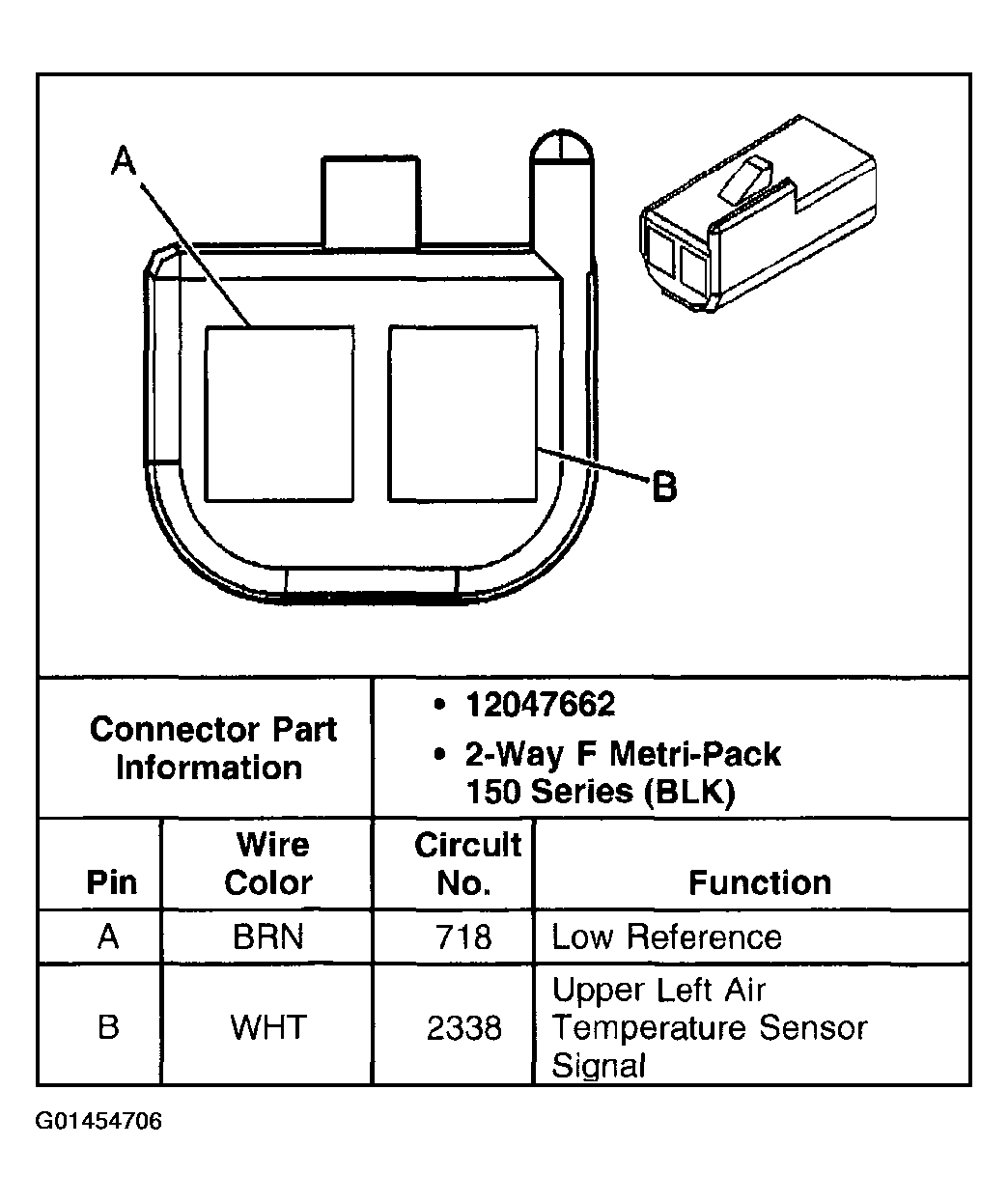

Fig 1: Air Temperature Sensor Connector End View - Upper Left
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
