Auxiliary Air Temperature Sensor Assembly Connector End View - Inside

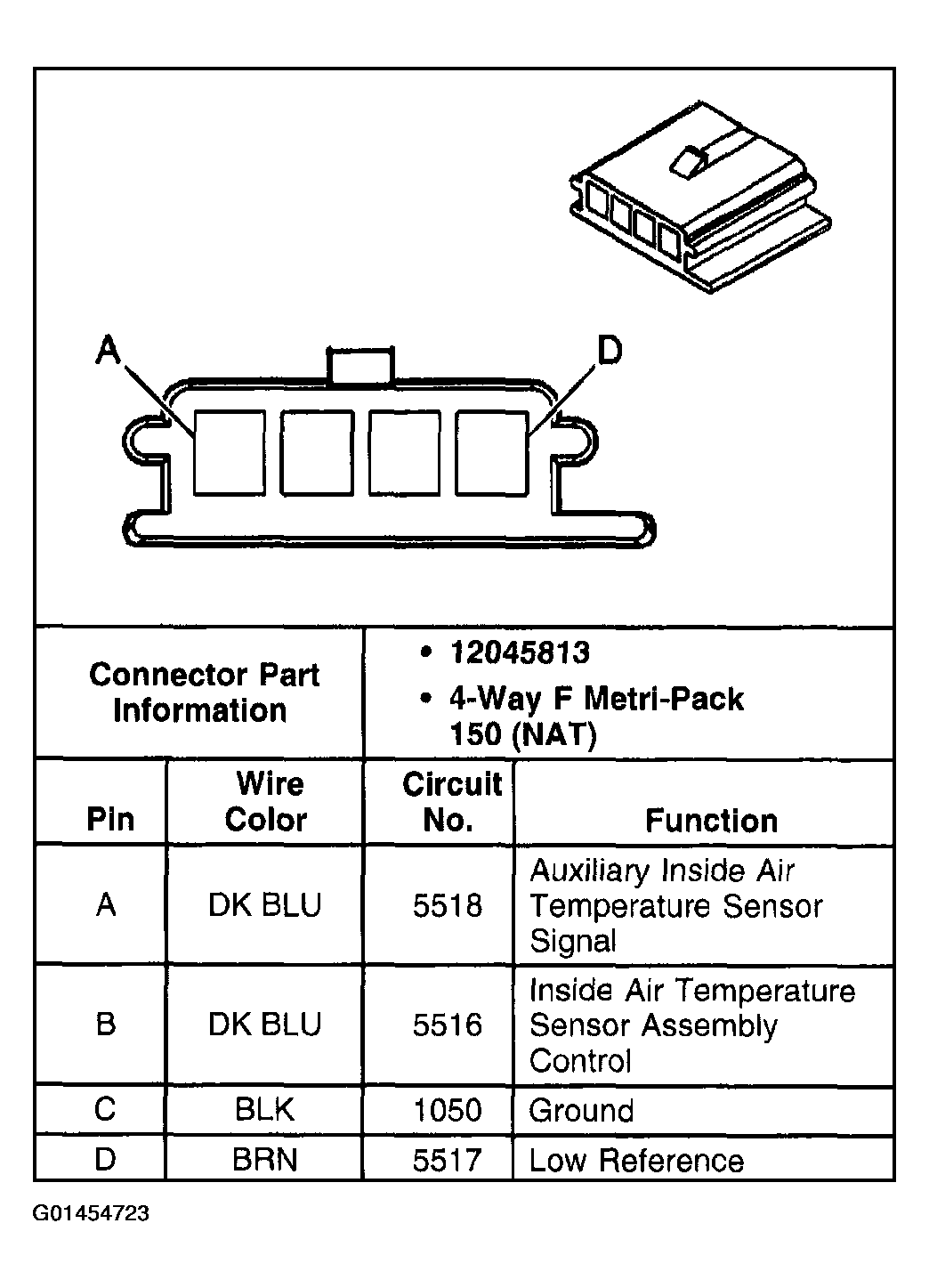

Fig 1: Auxiliary Air Temperature Sensor Assembly Connector End View - Inside
G01454723Courtesy of GENERAL MOTORS CORP.
