Blower Motor Connector End View

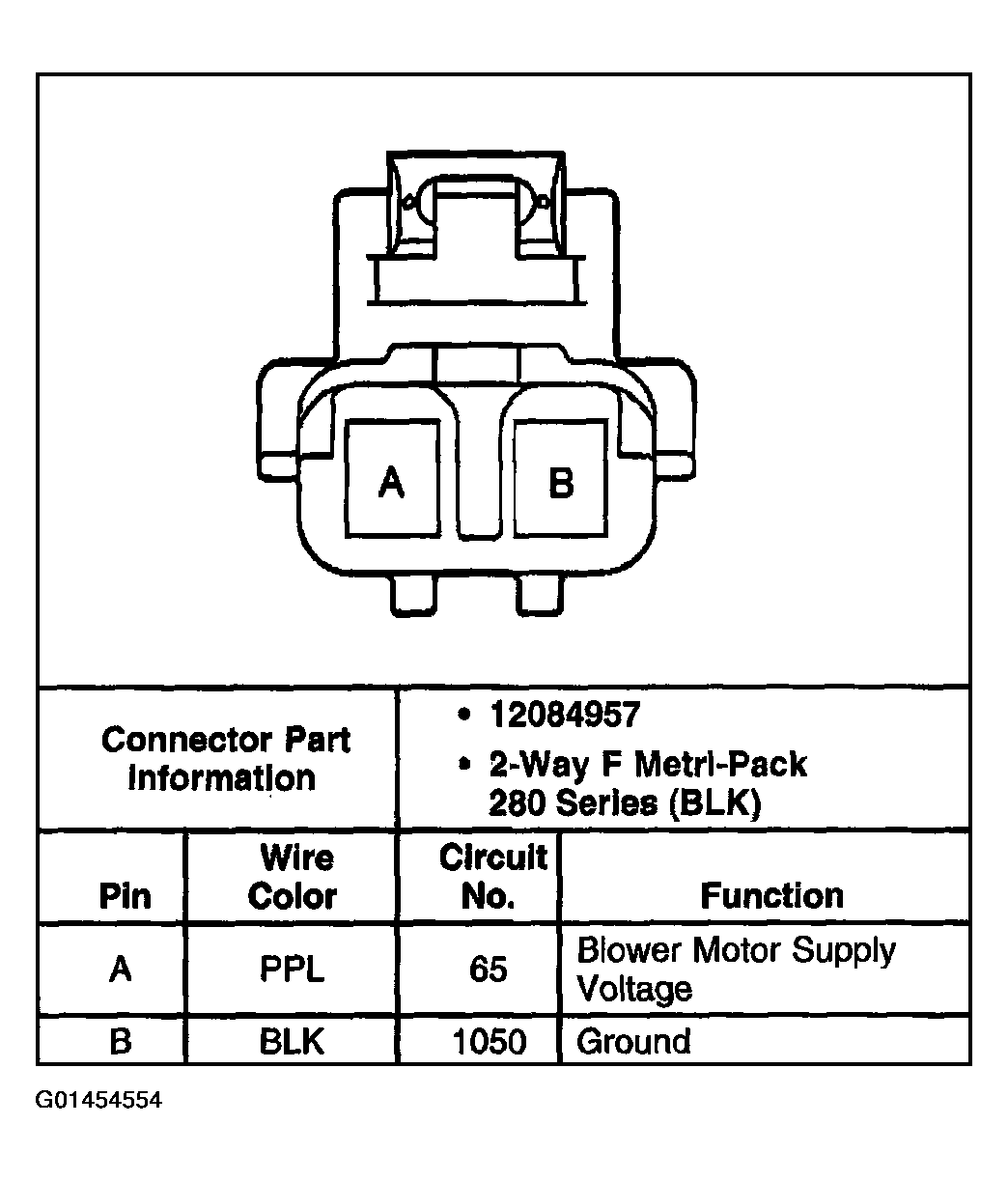

Fig 1: Blower Motor Connector End View
G01454554Courtesy of GENERAL MOTORS CORP.

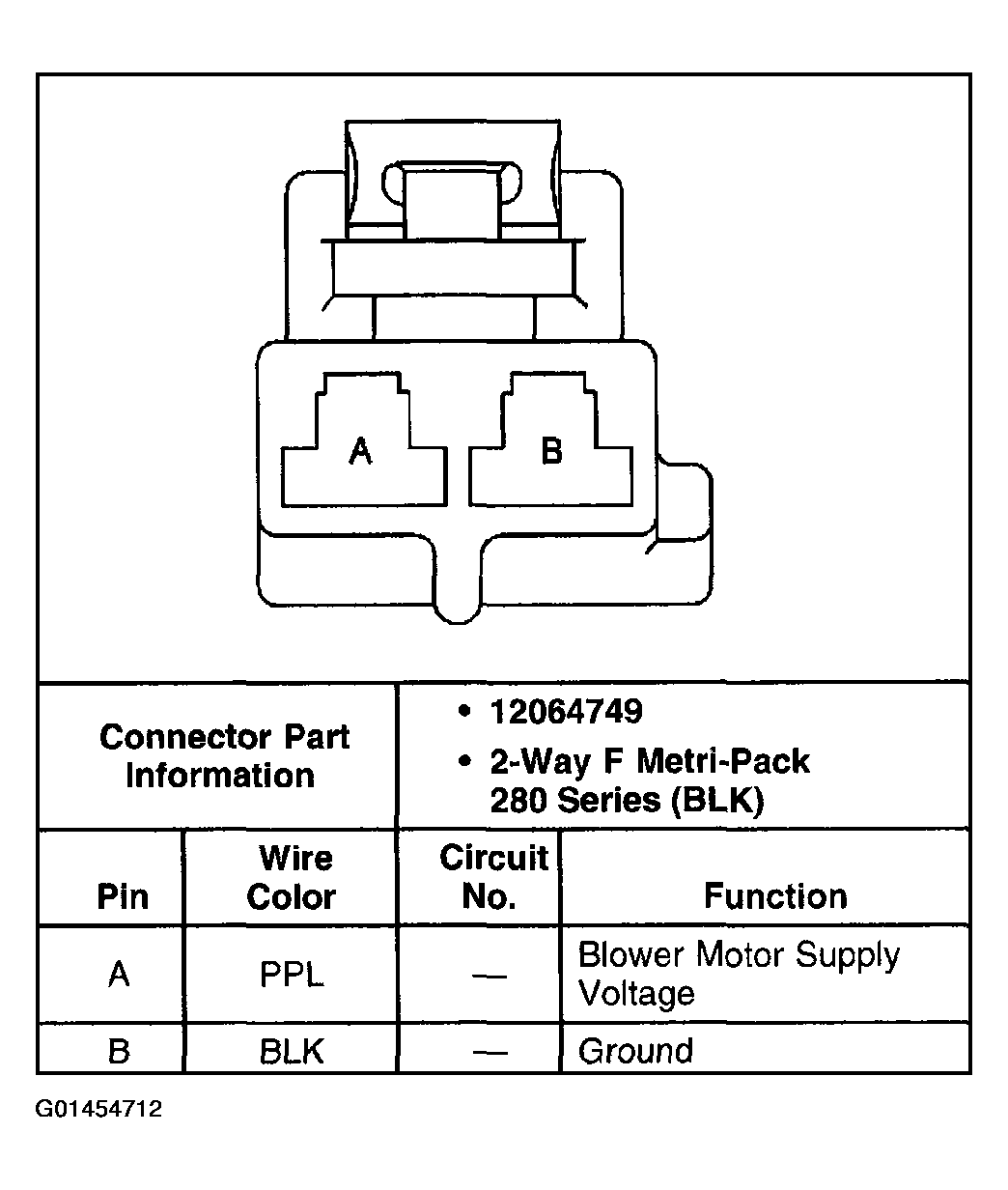

Fig 1: Blower Motor Connector End View
G01454712Courtesy of GENERAL MOTORS CORP.
