Blower Motor Control Processor Connector End View - Auxiliary
Blower Motor Control Processor Connector End View - Auxiliary

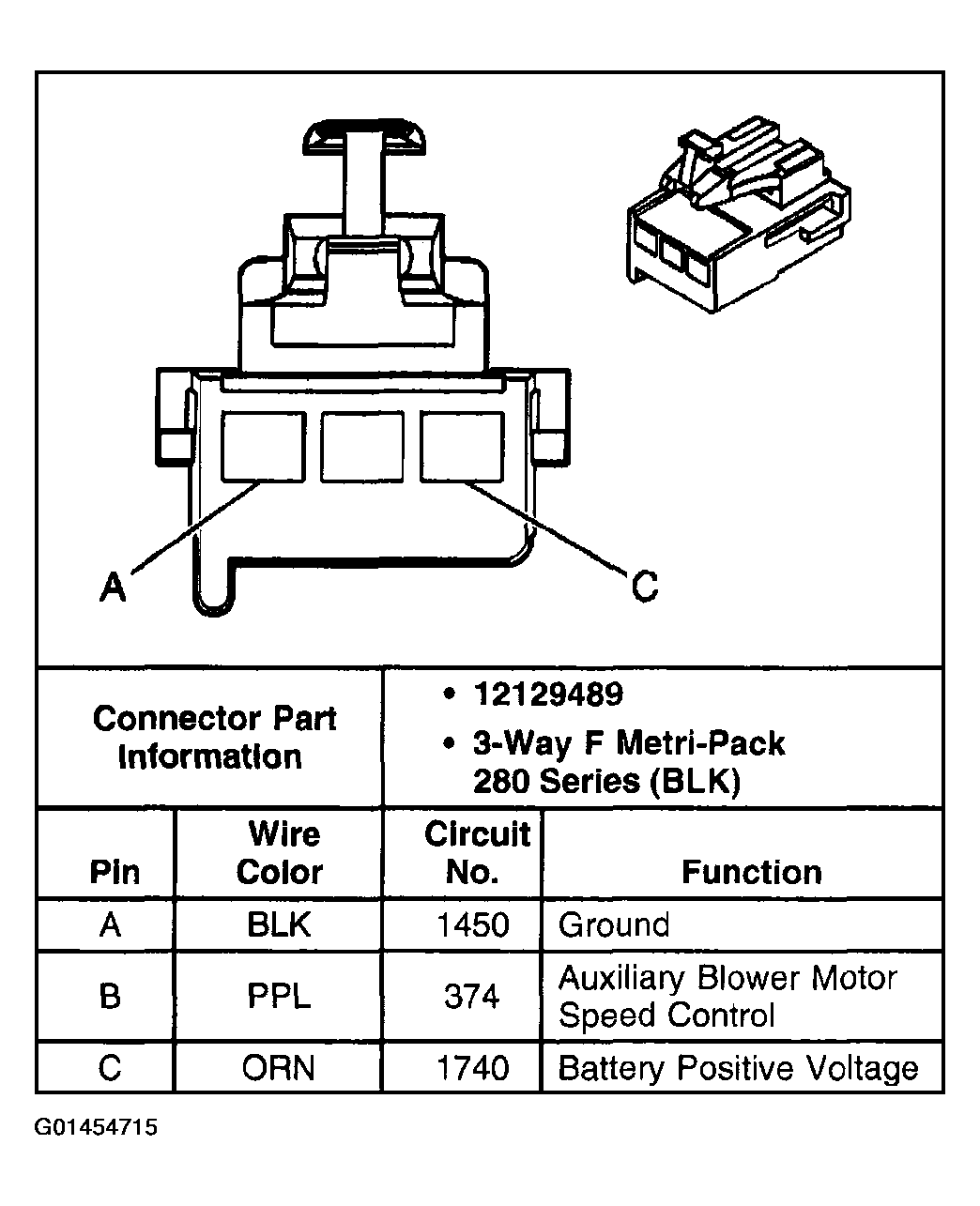

Fig 1: Blower Motor Control Processor Connector End View - Auxiliary
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
