C1 Module Connector End View
C1 Module Connector End View

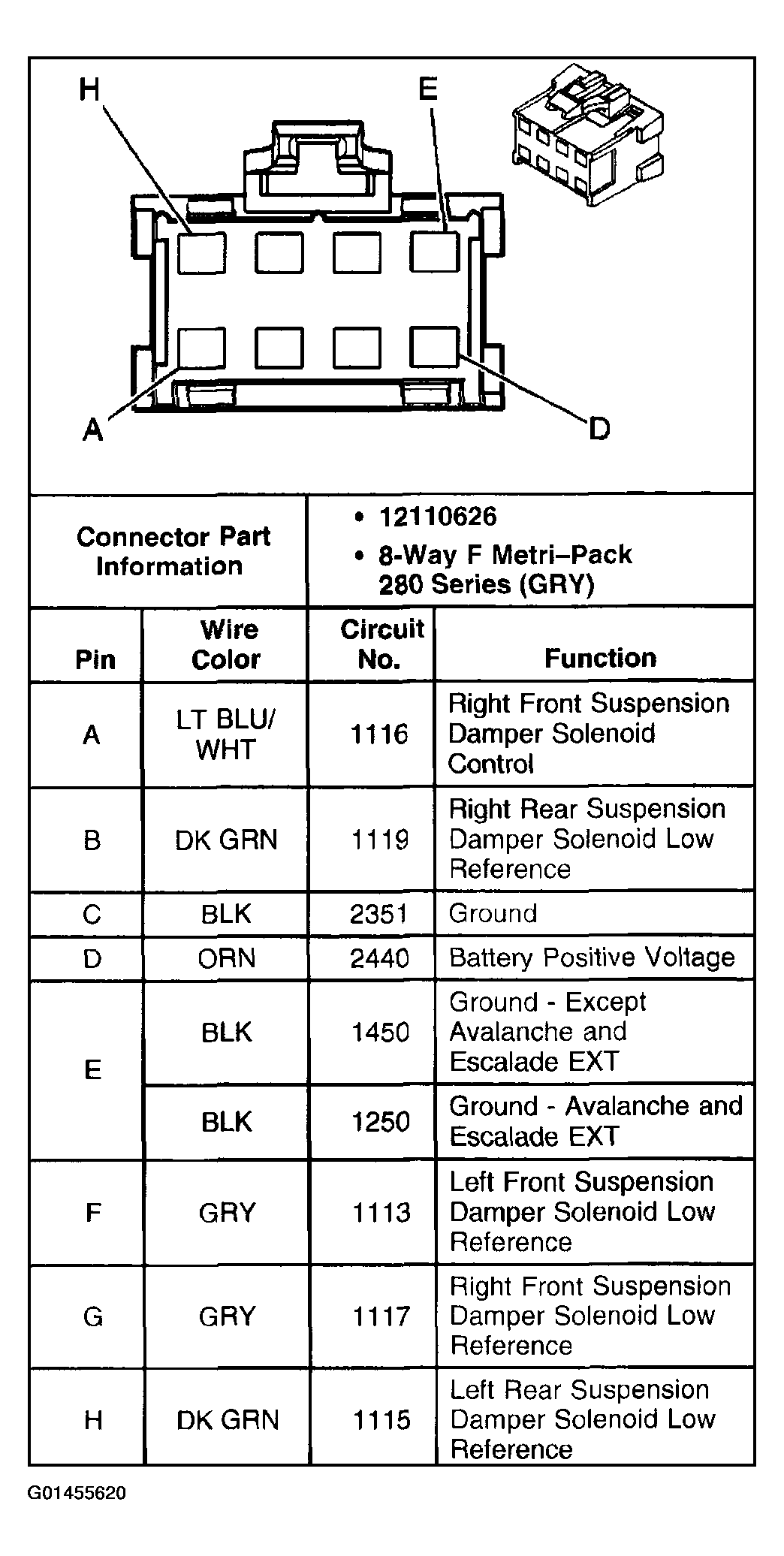

Fig 1: C1 Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
