C3 Module Connector End View (1 Of 2)

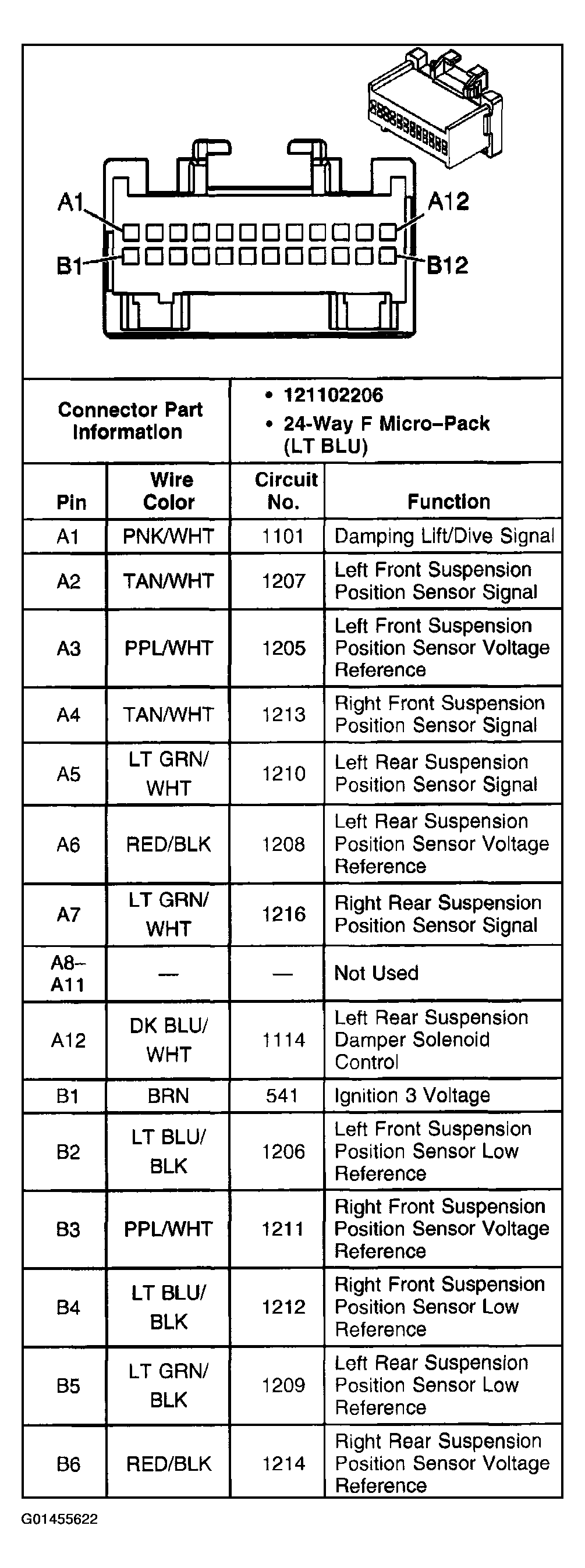

Fig 1: C3 Module Connector End View (1 Of 2)
G01455622Courtesy of GENERAL MOTORS CORP.
