Connector End View Of Windshield Wiper Motor Module

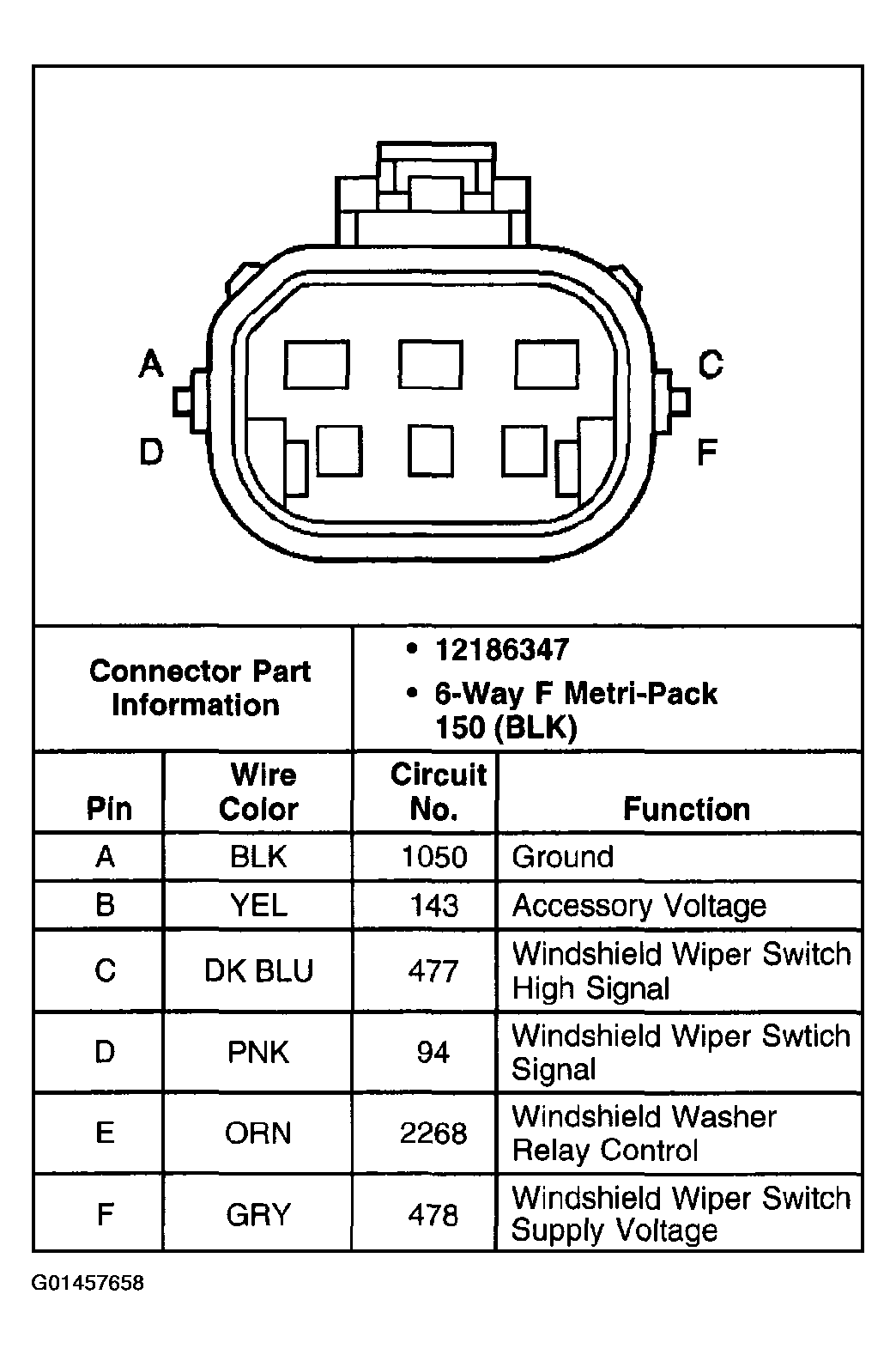

Fig 1: Connector End View Of Windshield Wiper Motor Module
G01457658Courtesy of GENERAL MOTORS CORP.
