Coolant Level Switch Connector End View & Functions - Except 8.1L
Coolant Level Switch Connector End View & Functions - Except 8.1L

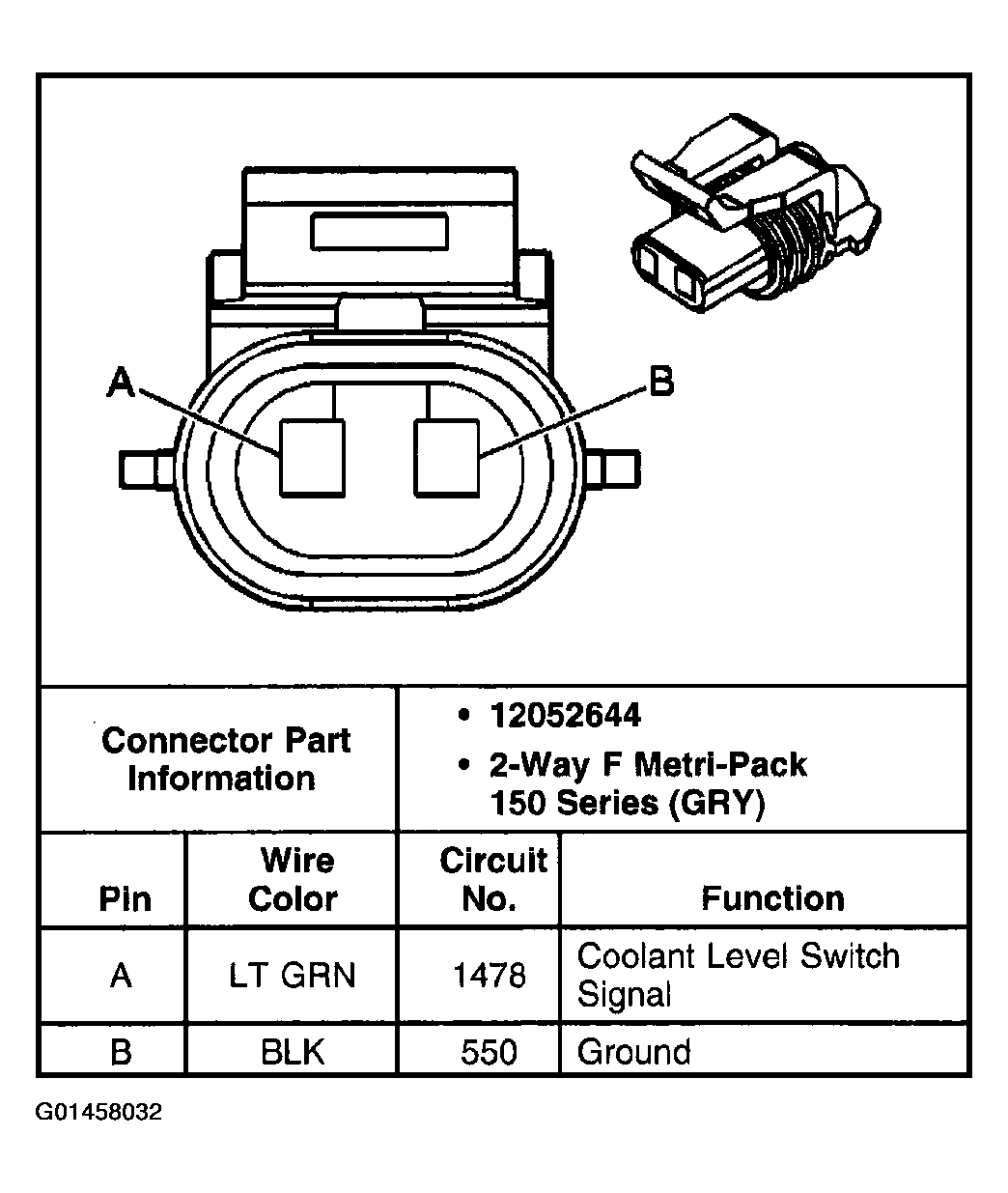

Fig 1: Coolant Level Switch Connector End View & Functions - Except 8.1L
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
