Driver Door Module (DDM) C3 Connector End View
Driver Door Module (DDM) C3 Connector End View

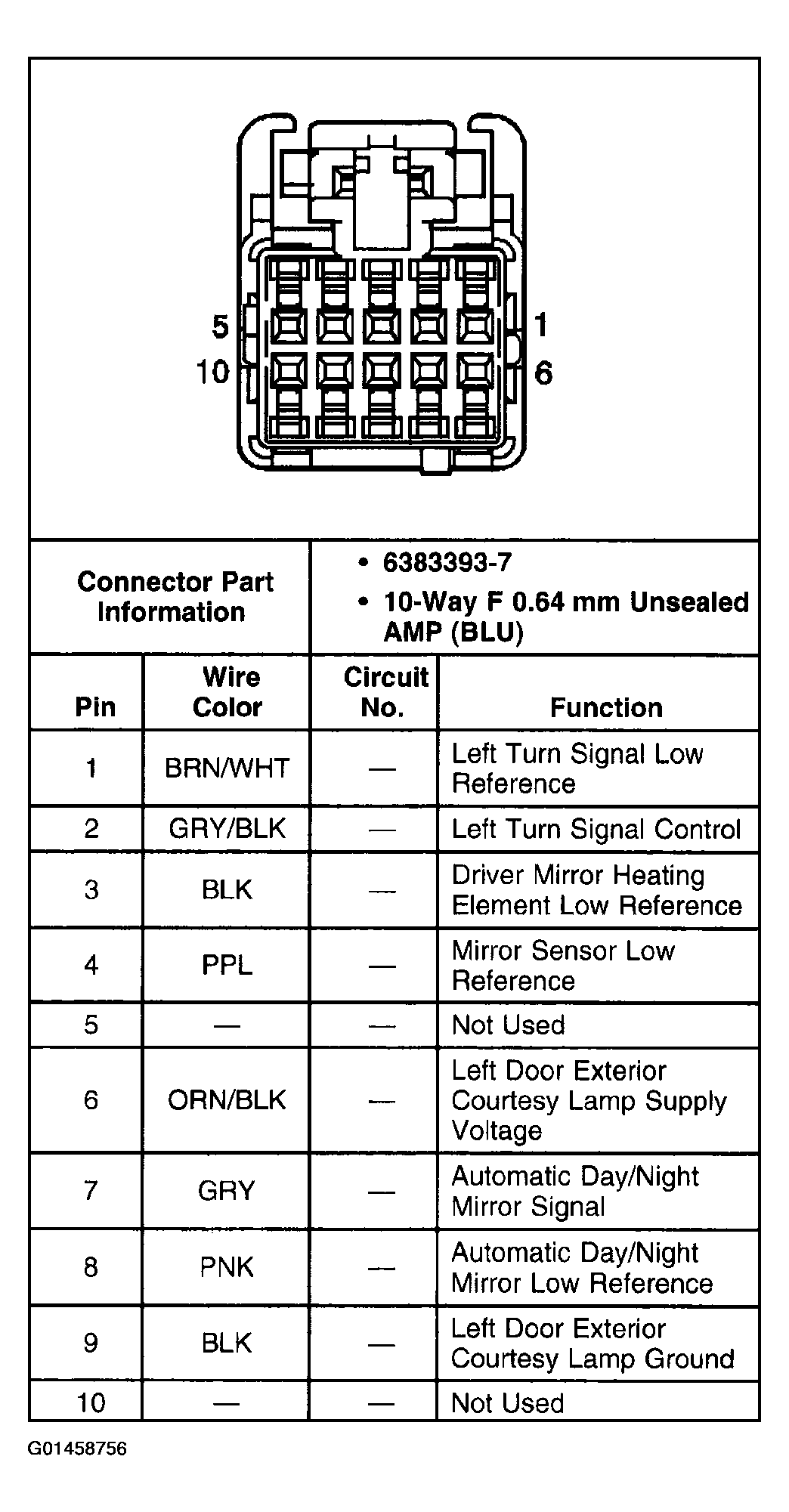

Fig 1: Driver Door Module (DDM) C3 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
