Engine Oil Level Switch Connector End View & Functions - Except 8.1L
Engine Oil Level Switch Connector End View & Functions - Except 8.1L

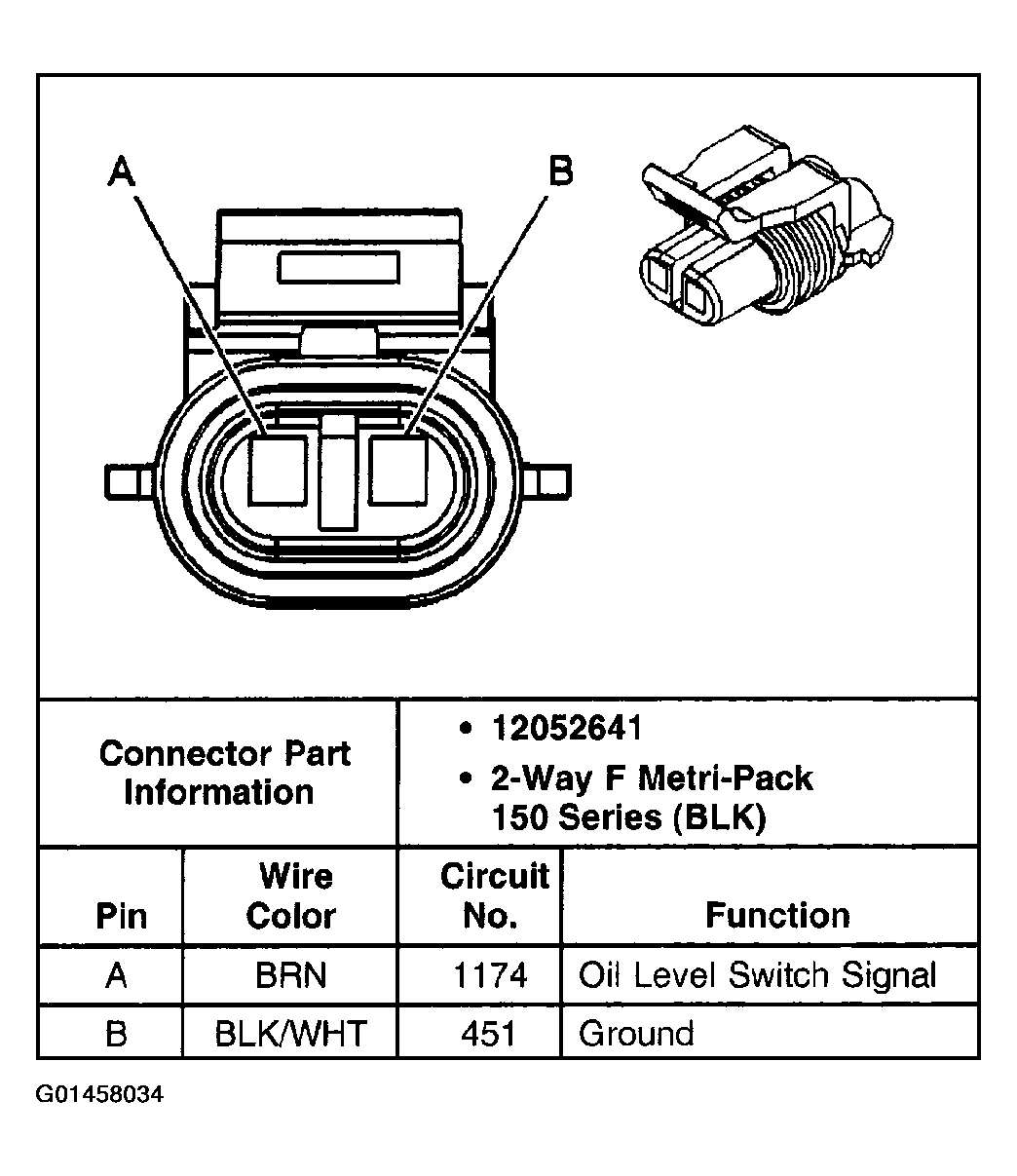

Fig 1: Engine Oil Level Switch Connector End View & Functions - Except 8.1L
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
