Engine Oil Pressure Sensor Connector End View & Functions
Engine Oil Pressure Sensor Connector End View & Functions

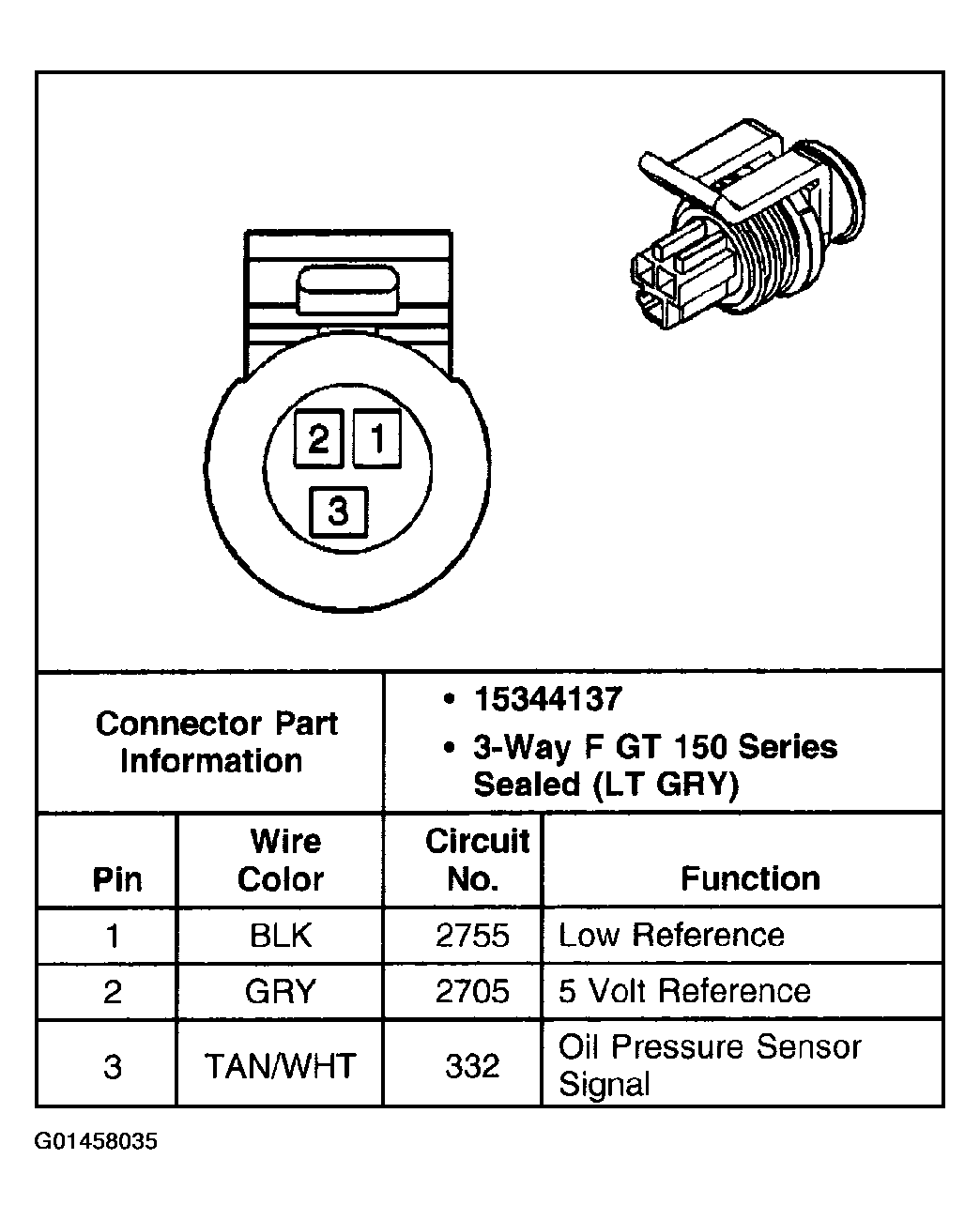

Fig 1: Engine Oil Pressure Sensor Connector End View & Functions
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
