Front Axle Actuator Pin Connector End View

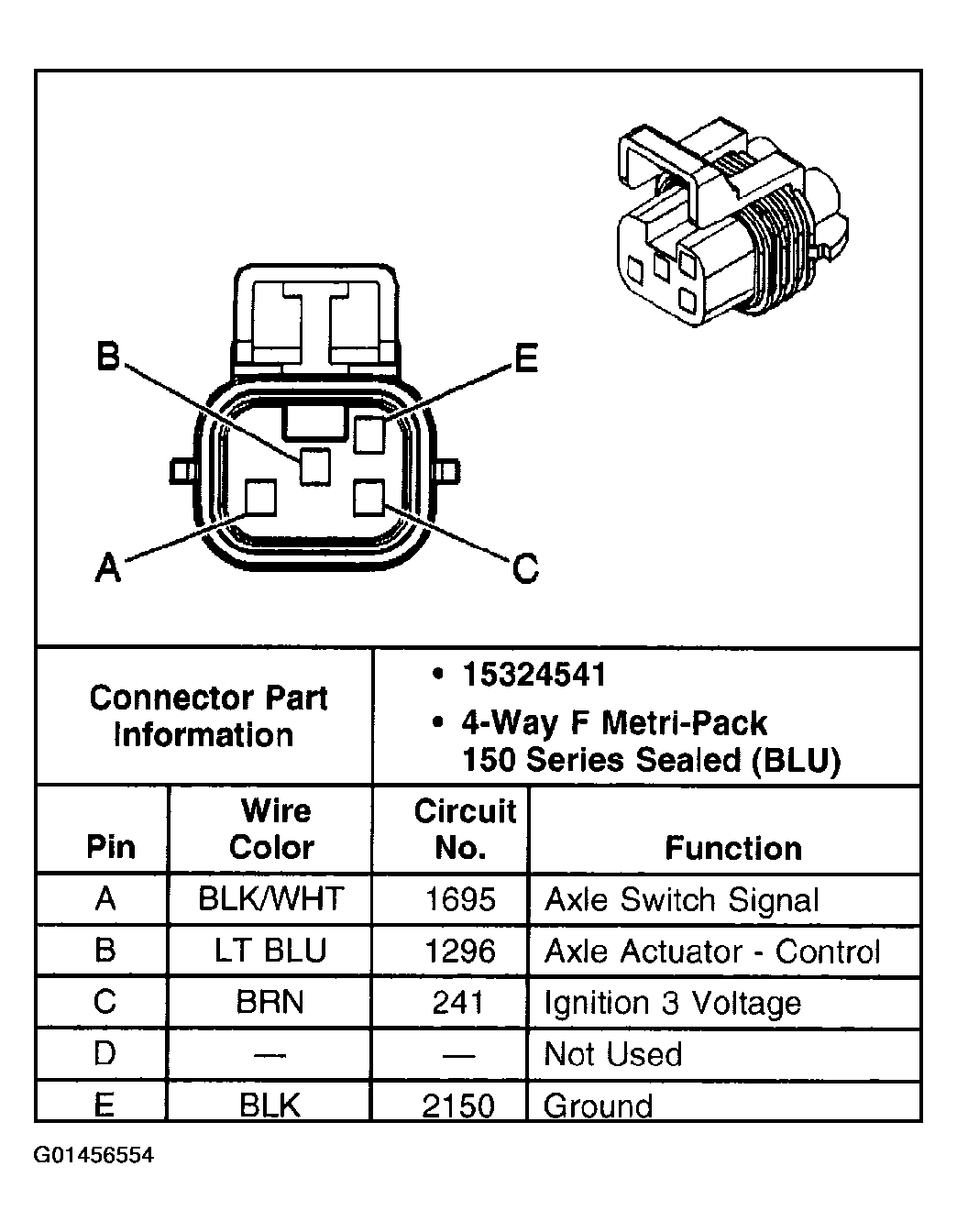

Fig 1: Front Axle Actuator Pin Connector End View
G01456554Courtesy of GENERAL MOTORS CORP.
