Front Passenger Door Module (FPDM) C1 Connector End View

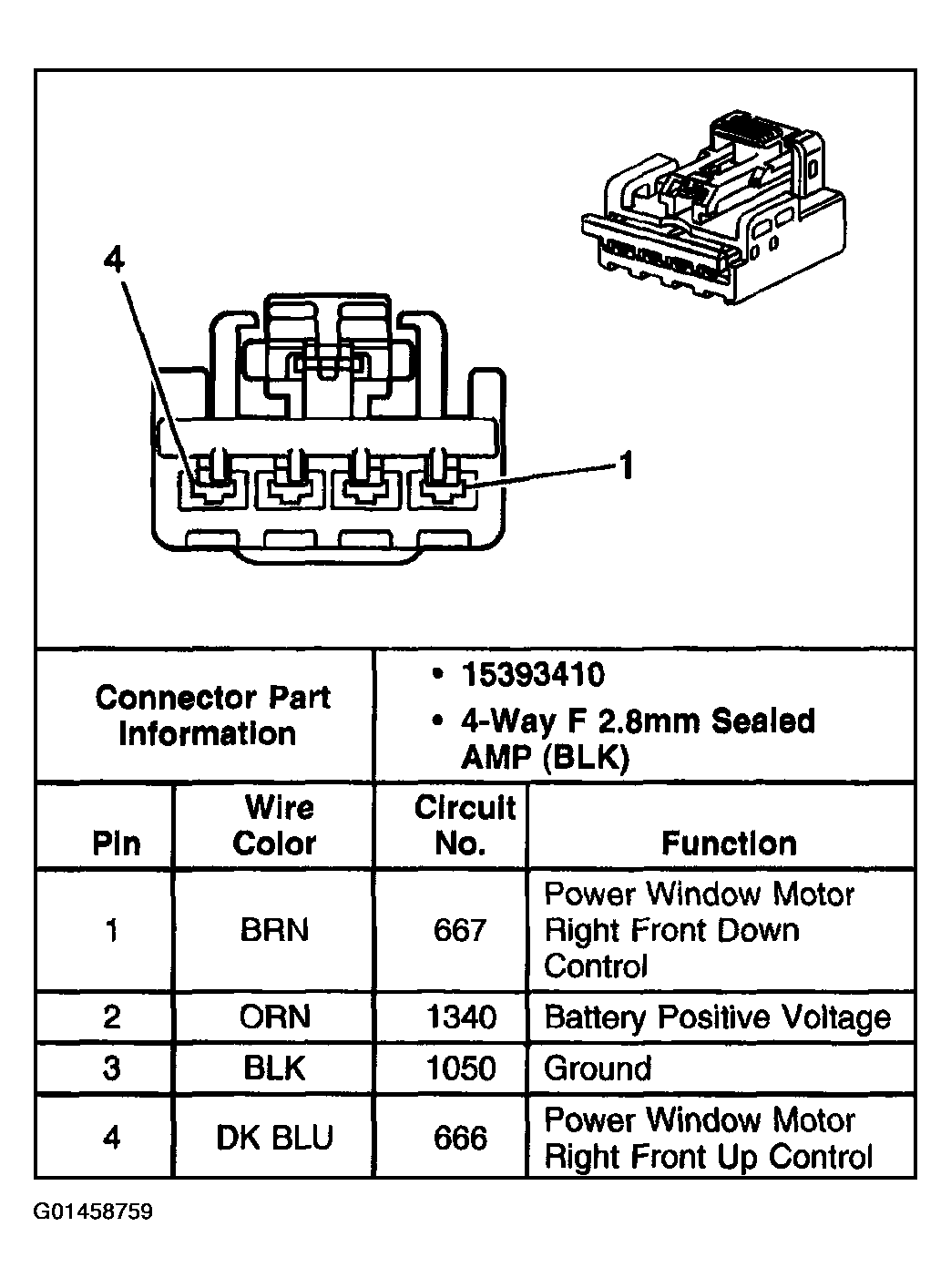

Fig 1: Front Passenger Door Module (FPDM) C1 Connector End View
G01458759Courtesy of GENERAL MOTORS CORP.
