Front Passenger Door Module (FPDM) C2 Connector End View
Front Passenger Door Module (FPDM) C2 Connector End View

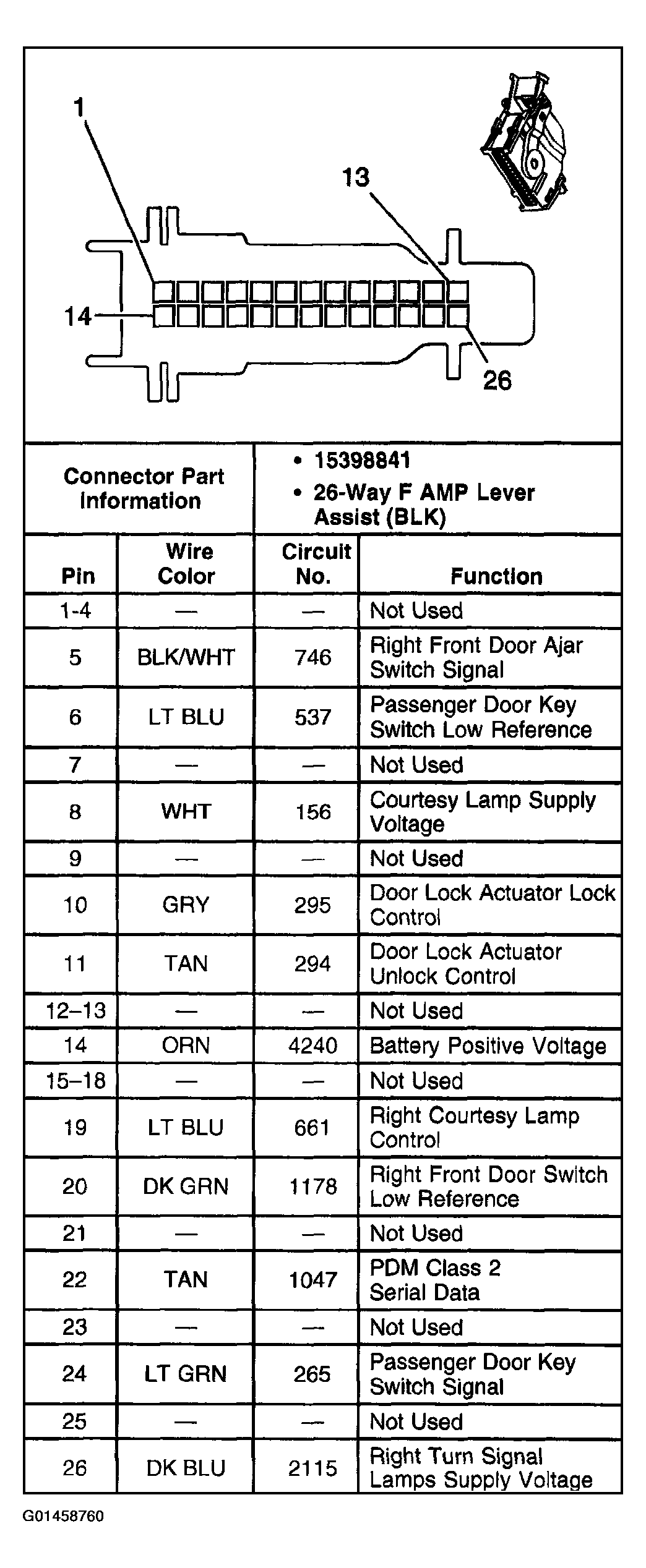

Fig 1: Front Passenger Door Module (FPDM) C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
