Front Passenger Door Module (FPDM) C4 Connector End View

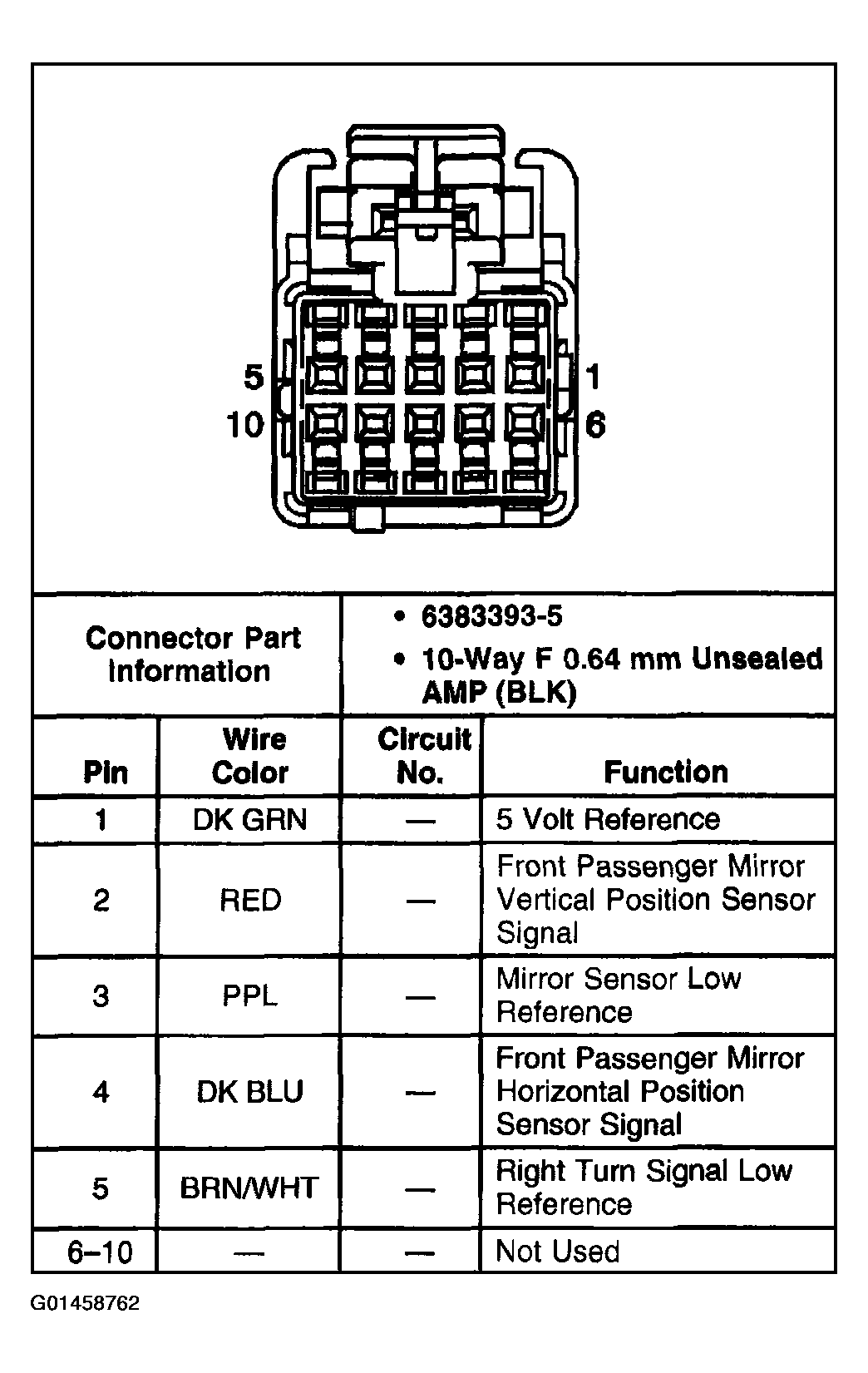

Fig 1: Front Passenger Door Module (FPDM) C4 Connector End View
G01458762Courtesy of GENERAL MOTORS CORP.
