HVAC Control Assembly Front Auxiliary Connector End View
HVAC Control Assembly Front Auxiliary Connector End View

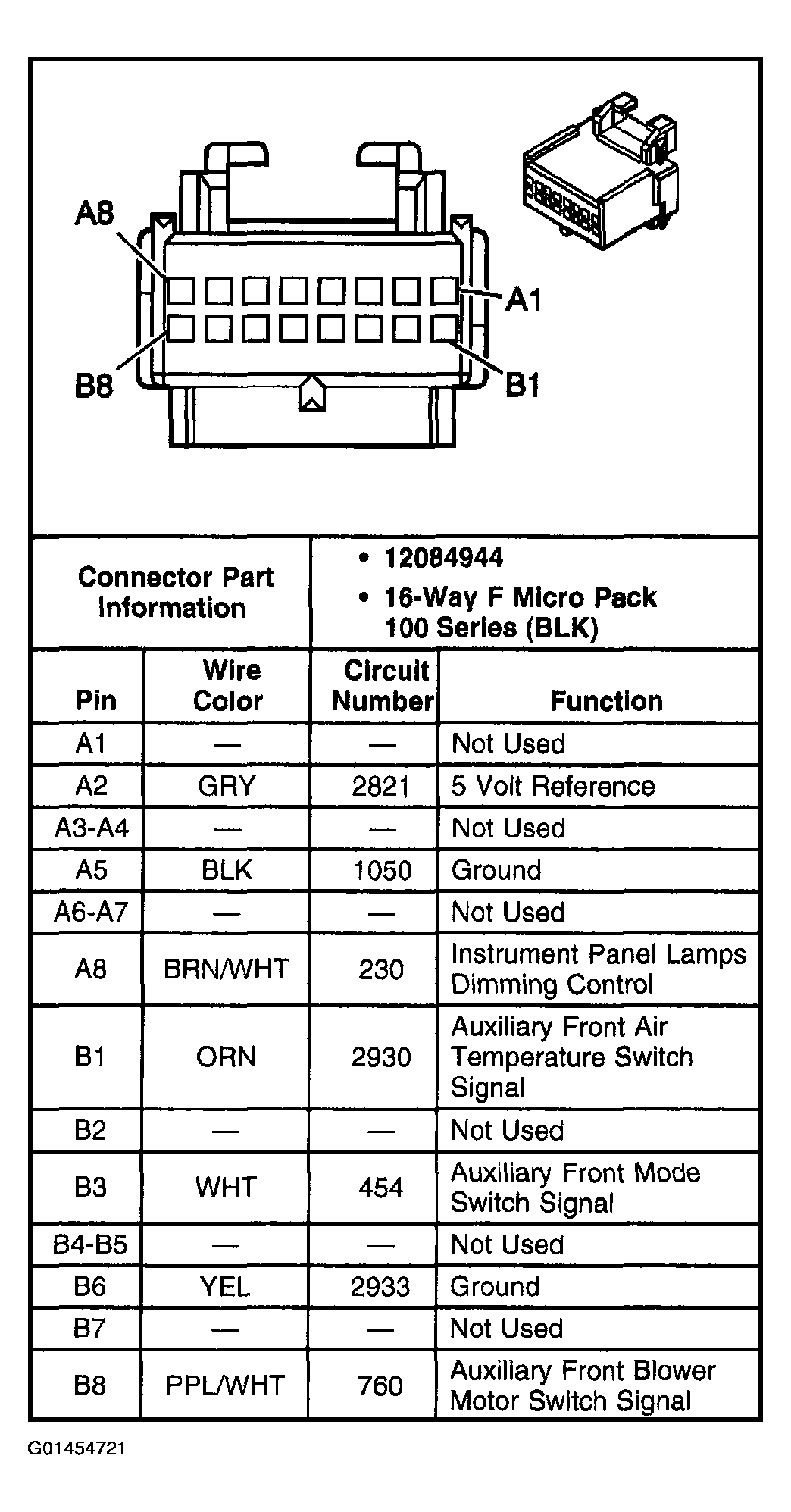

Fig 1: HVAC Control Assembly Front Auxiliary Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
