HVAC Control Module C1 Connector End View (1 Of 2)

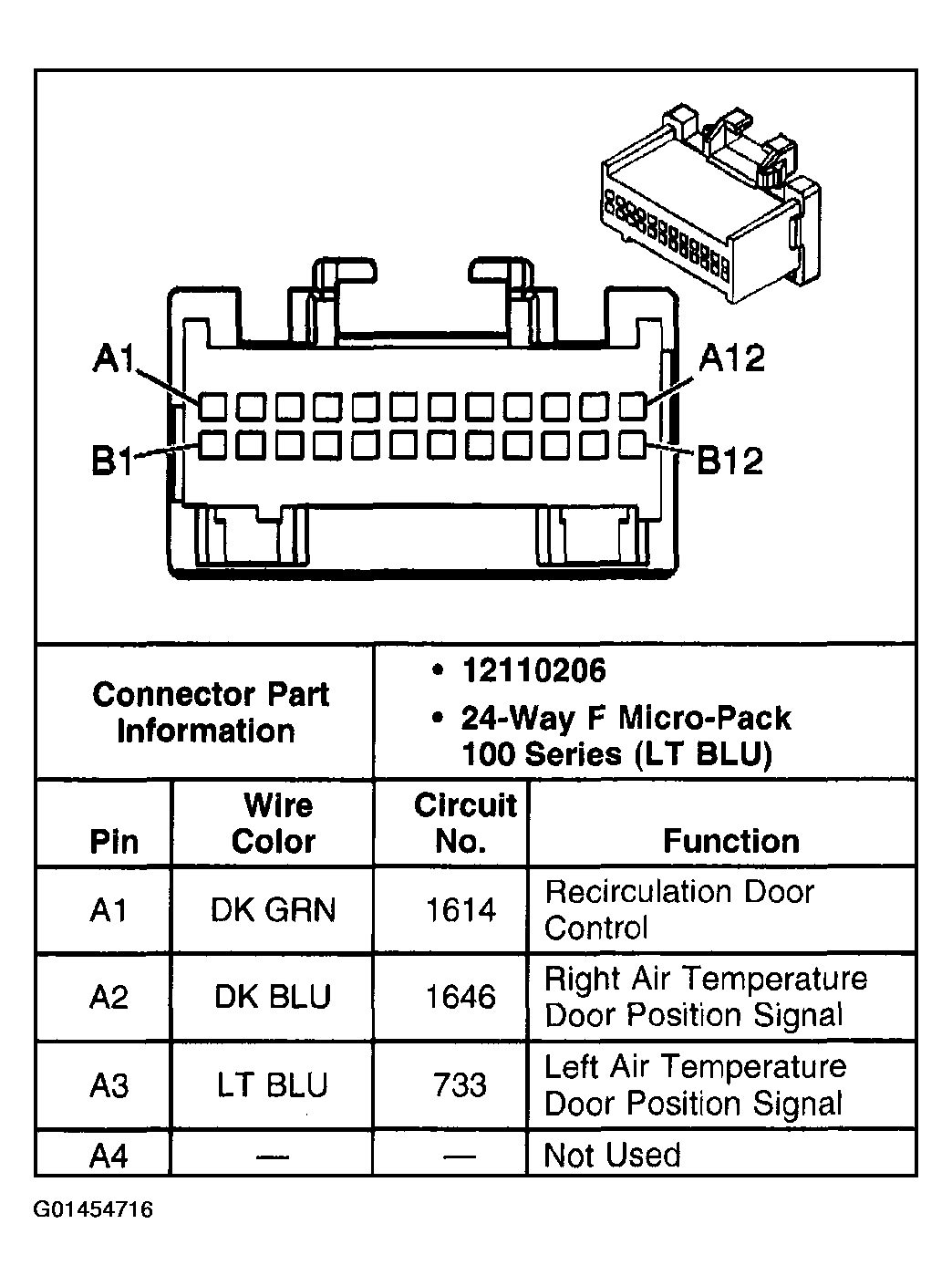

Fig 1: HVAC Control Module C1 Connector End View (1 Of 2)
G01454716Courtesy of GENERAL MOTORS CORP.
