HVAC Control Module C1 Connector End View (2 Of 2)

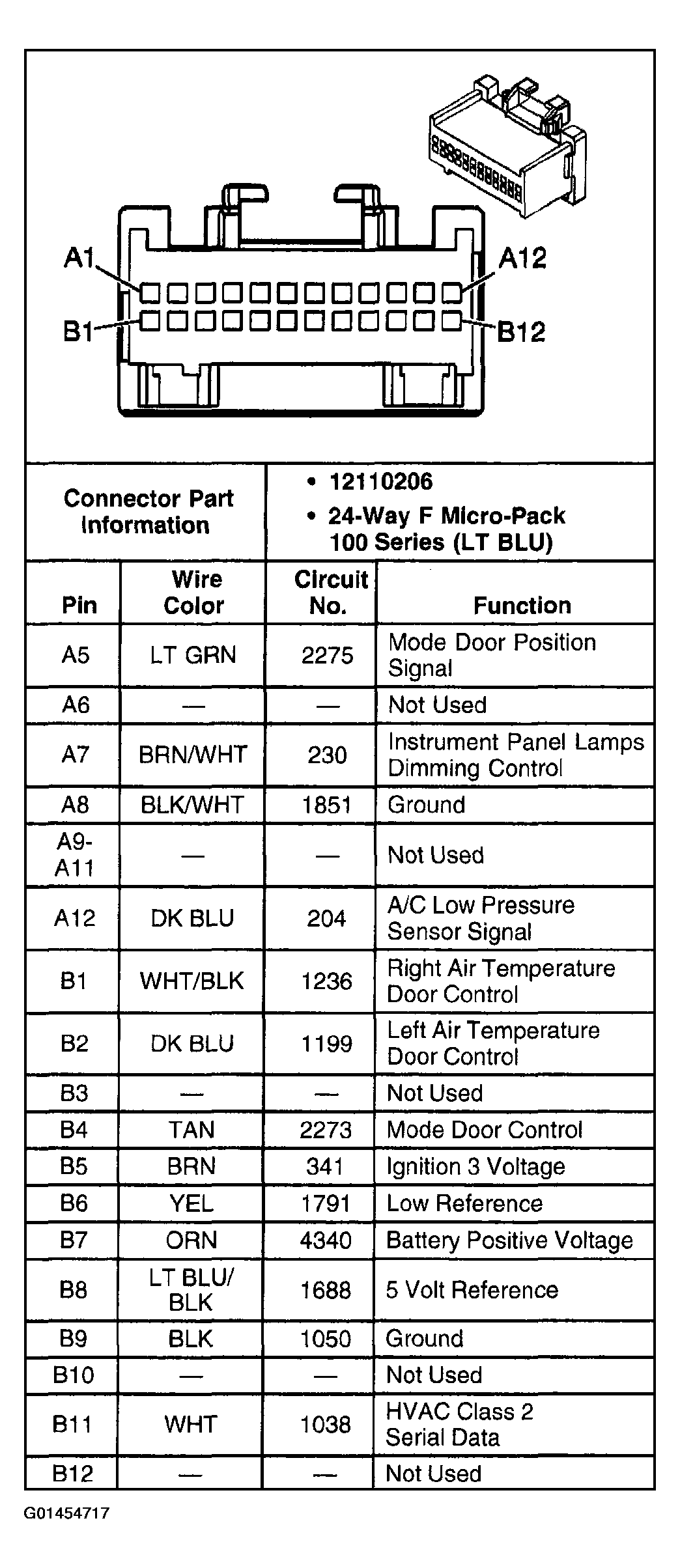

Fig 1: HVAC Control Module C1 Connector End View (2 Of 2)
G01454717Courtesy of GENERAL MOTORS CORP.
